39288080 Mini-Fit Jr. by Molex

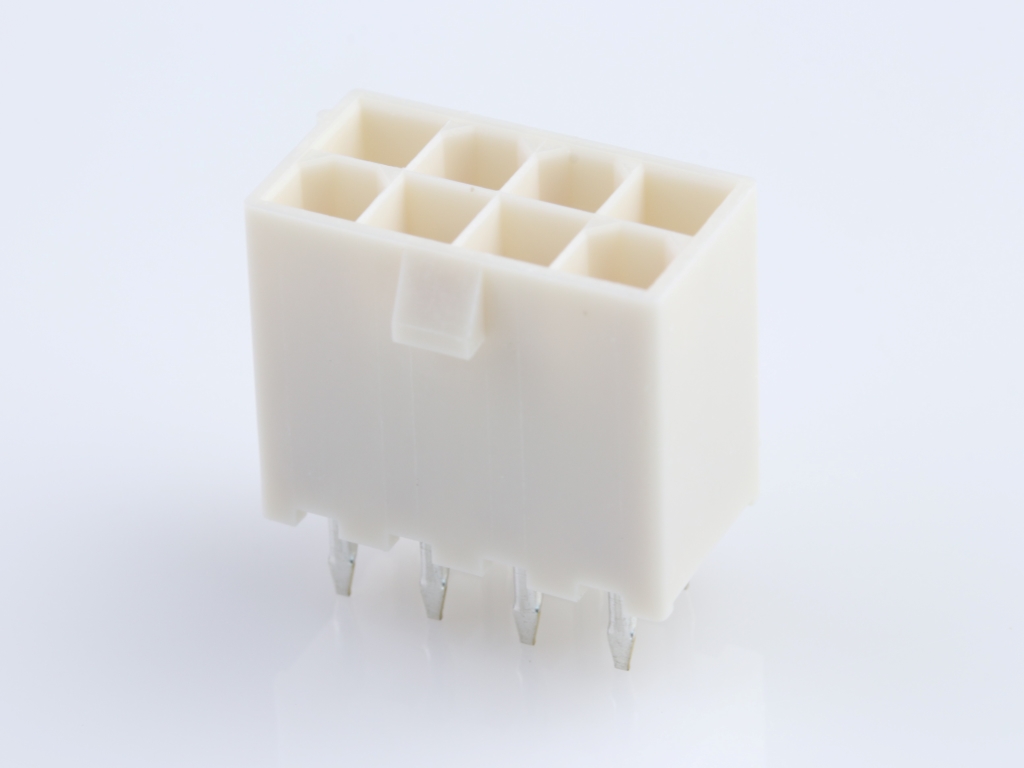

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 8 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-28-8080,
0039288080, 5566-08A-210 |
Where to Buy
Prices starting from US$0.46
| Distributor | Stock | ||
|---|---|---|---|
|
Rapid Electronics
from US$1.25
|
121,202
in stock
|
Buy Now |
|
Conrad
from US$1.56
|
121,202
in stock
|
Buy Now |
|
Farnell
from US$1.16
|
109,083
in stock
|
Buy Now |
|
TTI Europe
from US$1.03
|
29,600
in stock
|
Buy Now |
|
Heilind Americas
from US$0.83
|
9,676
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.83
|
7,854
in stock
|
Buy Now |
|
element14
from US$1.04
|
1,456
in stock
|
Buy Now |
|
Schukat Electronic
from US$0.54
|
875
in stock
|
Buy Now |
|
Newark Electronics
from US$1.10
|
664
in stock
|
Buy Now |
|
TME
from US$0.63
|
475
in stock
|
Buy Now |
|
RS Americas
from US$0.53
|
47
in stock
|
Buy Now |
|
|
RS
from US$1.02
|
45
in stock
|
Buy Now |
|
Offical Electronic
-
|
31
in stock
|
Buy Now |
|
Rutronik
from US$0.61
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.92
|
0
in stock
|
Buy Now |
|
Compona
from US$0.46
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.49
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.53
|
0
in stock
|
Buy Now |
|
EME
from US$0.61
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.00A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 1.810/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.889µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
