39289088 Mini-Fit Jr. by Molex

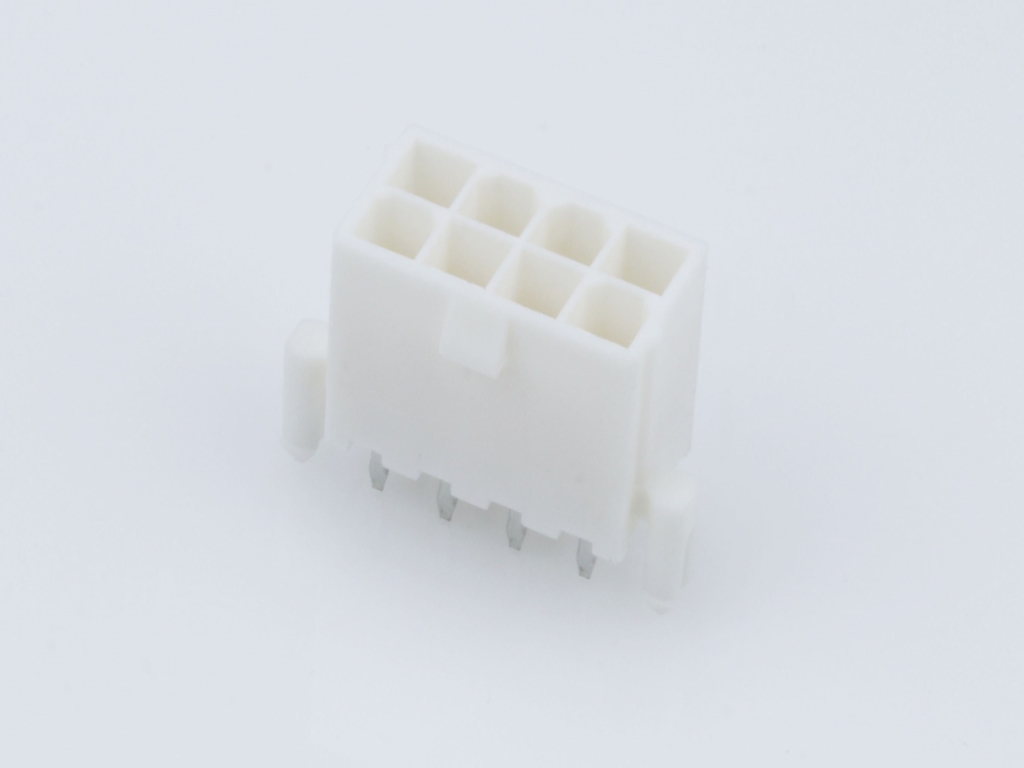

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 8 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-28-9088,
0039289088, 5566-08B2GS-210 |
Where to Buy
Prices starting from US$0.52
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$3.34
|
110,516
in stock
|
Buy Now |
|
TTI Americas
from US$2.74
|
6,032
in stock
|
Buy Now |
|
Heilind Americas
from US$1.98
|
1,707
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.96
|
1,560
in stock
|
Buy Now |
|
element14
from US$2.73
|
622
in stock
|
Buy Now |
|
|
Heilind Europe
from US$3.15
|
130
in stock
|
Buy Now |
|
RS
from US$3.49
|
31
in stock
|
Buy Now |
|
TME
from US$3.30
|
24
in stock
|
Buy Now |
|
Newark Electronics
from US$0.52
|
1
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
295
in stock
|
Buy Now |
|
Avnet America
from US$2.53
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.82
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.98
|
0
in stock
|
Buy Now |
|
EME
from US$2.85
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 1.756/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONN, HEADER, 8POS, 2ROW, 4.2MM | Farnell |
| MINI-FIT JR HDR 08P 94V-0 30AU | TTI Americas |
| A-5566-08B2GS-210 8 | Heilind Americas |
| MINI-FIT JR. HEADER 8 CIRCUITS | TTI Europe |
| CONNECTOR, HEADER, 8POS, 2ROW, 4.2MM | element14 |
| Molex 39-28-9088 PCB Header | RS |
| Connector: wire-board | TME |
| Connector, Header, 8Pos, 2Row, 4.2Mm | Newark Electronics |
| Pin Header, Power, Wire-to-Board, 4.2 mm, 2 Rows, 8 Contacts, Through Hole Straight | Avnet America |
| MINI FIT JR. VERTICAL HEADER, 4.2MM PITCH, DUAL ROW, 8 CIRCUITS, SNAP IN | RS Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 39289088?
Additional datasheets, footprints and schematics for 39289088 are listed on our Part Details page. You can also find images and similar parts to 39289088 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 39289088 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 39289088 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 39289088 fall under?
The 39289088 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 39289088 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 39289088 you can contact the distributor directly for product support, shipping queries etc.
Is the 39289088 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 39289088 have stock available?
Authorised distributors including Farnell, TTI Americas, Heilind Americas, TTI Europe and element14 have stock available or on a lead time for 39289088.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 39289088 often in real-time on the comparison pages.
What if I can't find stock of 39289088?
You can fill out our help required form which you can use to request a quote for 39289088 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
