39290023 Mini-Fit Jr. by Molex

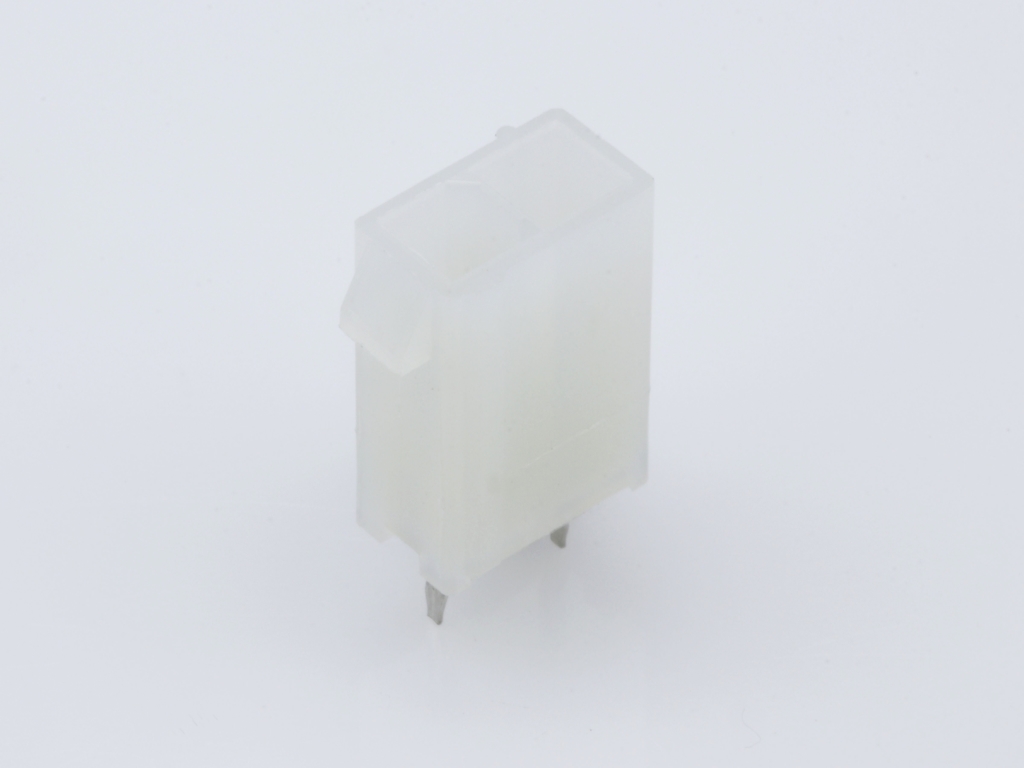

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 2 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-29-0023,
0039290023, 5566-02AGS |
Where to Buy
Prices starting from US$0.39
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.95
|
21,418
in stock
|
Buy Now |
|
Farnell
from US$0.84
|
19,277
in stock
|
Buy Now |
|
TTI Europe
from US$0.67
|
9,200
in stock
|
Buy Now |
|
Newark Electronics
from US$0.39
|
8,674
in stock
|
Buy Now |
|
element14
from US$0.79
|
7,226
in stock
|
Buy Now |
|
RS
from US$1.03
|
2,054
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.55
|
2,002
in stock
|
Buy Now |
|
Heilind Americas
from US$0.53
|
1,872
in stock
|
Buy Now |
|
TME
from US$0.86
|
1,778
in stock
|
Buy Now |
|
|
RS Americas
from US$0.40
|
37
in stock
|
Buy Now |
|
Avnet America
from US$0.60
|
0
in stock
|
Buy Now |
|
Compona
from US$0.73
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.67
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.90
|
0
in stock
|
Buy Now |
|
EME
from US$0.83
|
0
in stock
|
Buy Now |
|
Rutronik
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 0.705/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
