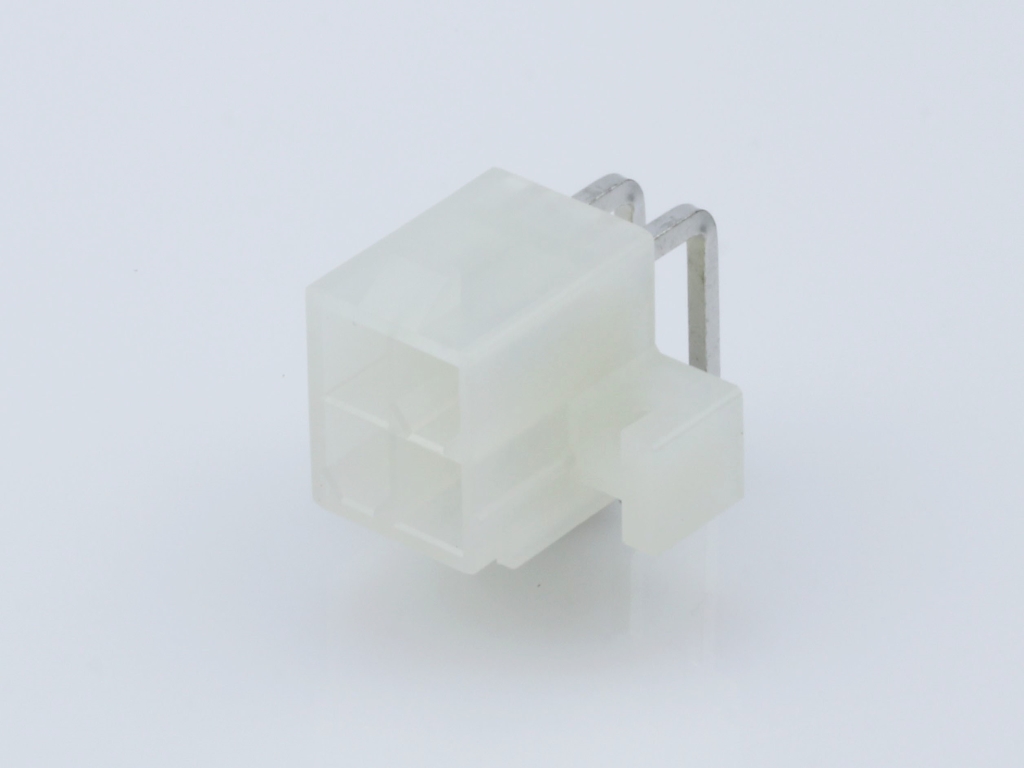

Mini-Fit Jr. Header, Dual Row, Right-Angle, with PCB Mounting Flange, 4 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-29-1048,
0039291048, 5569-04A1 |
Where to Buy
Prices starting from US$0.38
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.62
|
7,130
in stock
|
Buy Now |
|
Conrad
from US$0.99
|
3,987
in stock
|
Buy Now |
|
Newark Electronics
from US$0.73
|
3,798
in stock
|
Buy Now |
|
element14
from US$0.50
|
3,798
in stock
|
Buy Now |
|
Farnell
from US$0.54
|
3,798
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.59
|
3,500
in stock
|
Buy Now |
|
TME
from US$0.49
|
1,501
in stock
|
Buy Now |
|
Heilind Americas
from US$0.49
|
1,436
in stock
|
Buy Now |
|
RS
from US$1.07
|
1,032
in stock
|
Buy Now |
|
Schukat Electronic
from US$0.43
|
100
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.46
|
3
in stock
|
Buy Now |
|
Offical Electronic
-
|
48
in stock
|
Buy Now |
|
Avnet America
from US$0.48
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.62
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.38
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.48
|
0
in stock
|
Buy Now |
|
EME
from US$0.50
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 1.786/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.78mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
