39291148 Mini-Fit Jr. by Molex

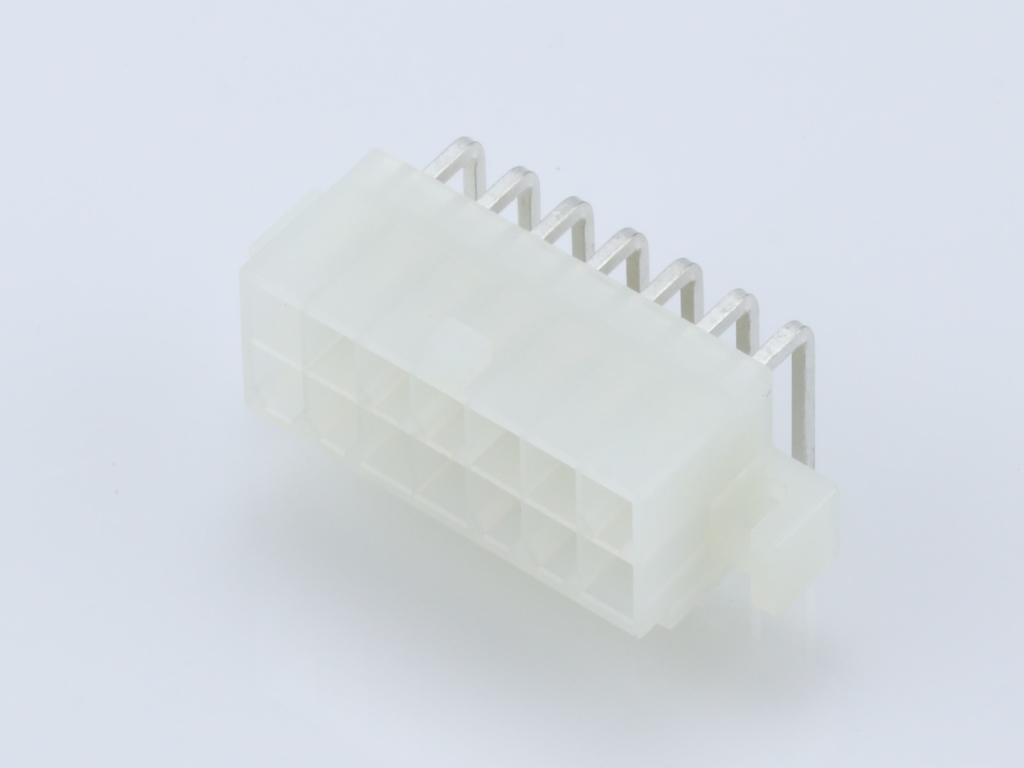

Mini-Fit Jr. Header, Dual Row, Right-Angle, with PCB Mounting Flange, 14 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-29-1148,
0039291148, 5569-14A1 |
Where to Buy
Prices starting from US$0.70
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.36
|
12,186
in stock
|
Buy Now |
|
Farnell
from US$1.93
|
10,969
in stock
|
Buy Now |
|
TTI Europe
from US$1.12
|
6,100
in stock
|
Buy Now |
|
TME
from US$1.11
|
47
in stock
|
Buy Now |
|
RS
from US$3.41
|
41
in stock
|
Buy Now |
|
Offical Electronic
-
|
730
in stock
|
Buy Now |
|
Rutronik
from US$0.93
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$1.69
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.04
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.02
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$1.07
|
0
in stock
|
Buy Now |
|
Sager
from US$1.24
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.27
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.70
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.06
|
0
in stock
|
Buy Now |
|
EME
from US$0.91
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 14 |
| Circuits Maximum | 14 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 5.055/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.78mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
