39296028 Mini-Fit Jr. by Molex

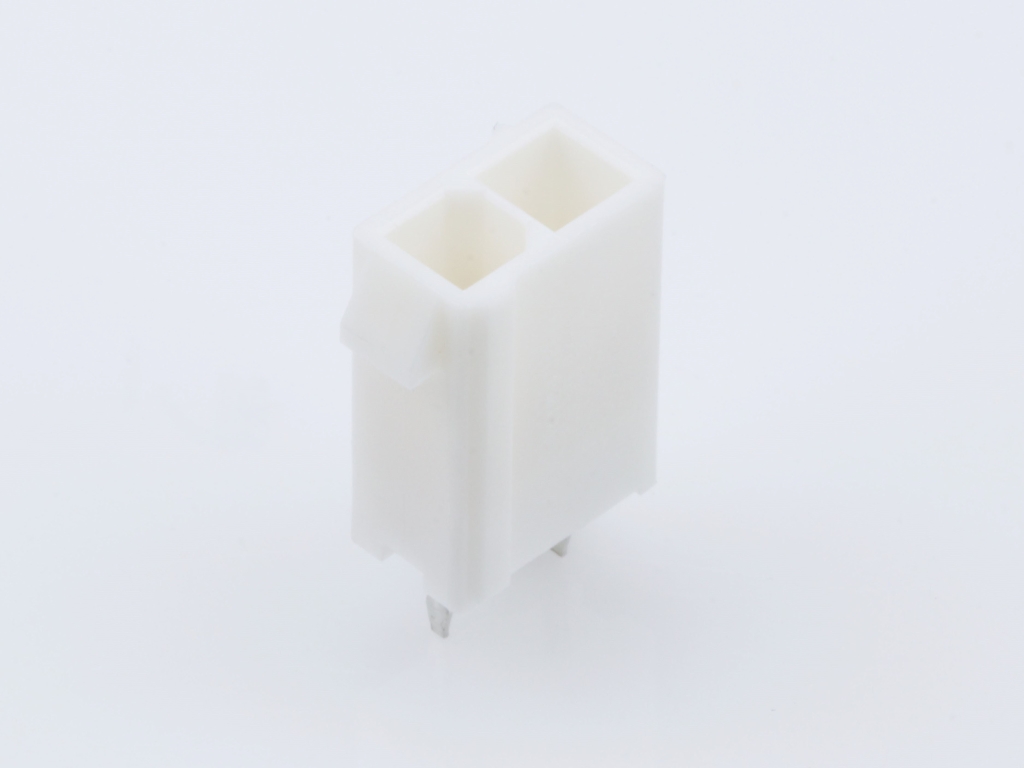

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 2 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-29-6028,
0039296028, 5566-02AGS-210 |
Where to Buy
Prices starting from US$0.37
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.48
|
24,549
in stock
|
Buy Now |
|
TTI Americas
from US$0.58
|
15,991
in stock
|
Buy Now |
|
Farnell
from US$0.90
|
15,713
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.81
|
7,000
in stock
|
Buy Now |
|
Heilind Americas
from US$0.70
|
6,802
in stock
|
Buy Now |
|
element14
from US$0.79
|
1,798
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.83
|
164
in stock
|
Buy Now |
|
Conrad
from US$0.39
|
164
in stock
|
Buy Now |
|
RS
from US$0.89
|
112
in stock
|
Buy Now |
|
|
RS Americas
from US$0.45
|
41
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
4,880
in stock
|
Buy Now |
|
Avnet America
from US$0.72
|
0
in stock
|
Buy Now |
|
TME
from US$0.56
|
0
in stock
|
Buy Now |
|
Compona
from US$0.43
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.37
|
0
in stock
|
Buy Now |
|
EME
from US$0.50
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 733.026/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| A-5566-02Ags-2 Rohs Compliant: Yes |Molex 39-29-6028 | Newark Electronics |
| MINI-FIT JR HDR 02P 94V-0 30AU | TTI Americas |
| CONN, HEADER, 2POS, 2ROW, 4.2MM | Farnell |
| MINI-FIT JR. HEADER 94V-0 | TTI Europe |
| A-5566-02AGS-2 | Heilind Americas |
| Molex 39296028 Mini-fit Jr. Sil Socket 4.2mm Pitch 2 Pins Gold | Rapid Electronics |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 2 Rastermaß: 4.2 mm 39296028 1 St. Bag | Conrad |
| Molex 39-29-6028 PCB Header | RS |
| HEADERS, HDR VERT DUAL 2 POS W/O PEG LEGS | RS Americas |
| Pin Header, Power, Wire-to-Board, 4.2 mm, 2 Rows, 2 Contacts, Through Hole Straight | Avnet America |
| Connector: wire-board | TME |
