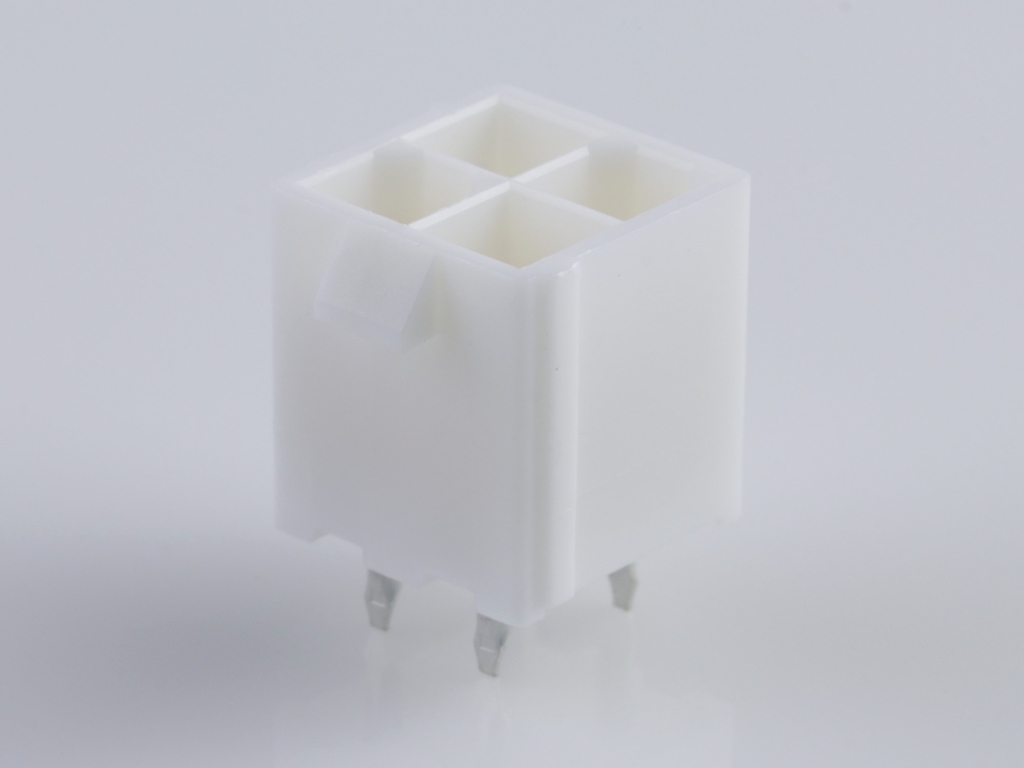

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 4 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-29-6048,
0039296048, 5566-04AGS-210 |
Where to Buy
Prices starting from US$0.83
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.94
|
43,053
in stock
|
Buy Now |
|
TTI Europe
from US$1.18
|
35,280
in stock
|
Buy Now |
|
Farnell
from US$1.66
|
8,409
in stock
|
Buy Now |
|
|
TTI Americas
from US$1.19
|
6,562
in stock
|
Buy Now |
|
Avnet America
from US$1.09
|
4,316
in stock
|
Buy Now |
|
Newark Electronics
from US$1.29
|
671
in stock
|
Buy Now |
|
element14
from US$1.32
|
415
in stock
|
Buy Now |
|
RS
from US$2.33
|
130
in stock
|
Buy Now |
|
|
RS Americas
from US$0.83
|
21
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
905
in stock
|
Buy Now |
|
TME
from US$2.18
|
0
in stock
|
Buy Now |
|
Compona
from US$1.33
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.22
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.83
|
0
in stock
|
Buy Now |
|
EME
from US$1.54
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 1254.200/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
