39299029 Mini-Fit Jr. by Molex

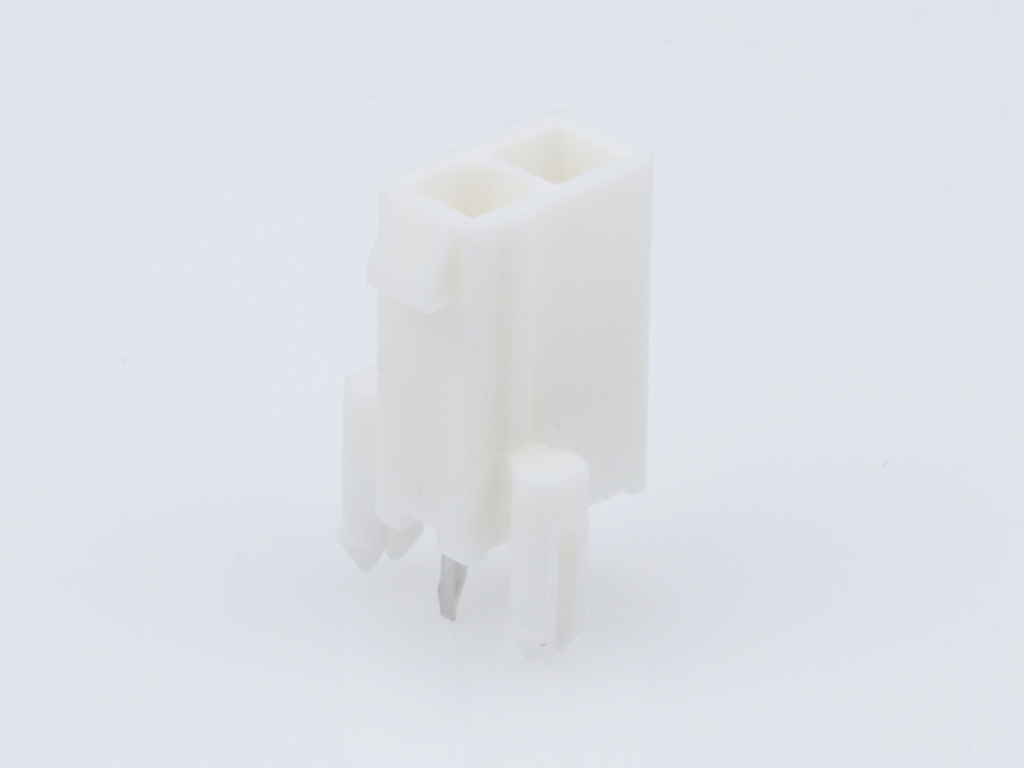

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 2 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-29-9029,
0039299029, 5566-02A2GS-210 |
Where to Buy
Prices starting from US$0.45
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.87
|
101,229
in stock
|
Buy Now |
|
TTI Americas
from US$0.86
|
5,740
in stock
|
Buy Now |
|
Conrad
from US$1.19
|
5,112
in stock
|
Buy Now |
|
Farnell
from US$1.00
|
4,602
in stock
|
Buy Now |
|
TME
from US$0.74
|
3,892
in stock
|
Buy Now |
|
element14
from US$0.93
|
437
in stock
|
Buy Now |
|
RS Americas
from US$0.45
|
247
in stock
|
Buy Now |
|
Heilind Americas
from US$0.75
|
3
in stock
|
Buy Now |
|
|
RS
from US$1.11
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.73
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.71
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.62
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.61
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 0.654/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
