39299043 Mini-Fit Jr. by Molex

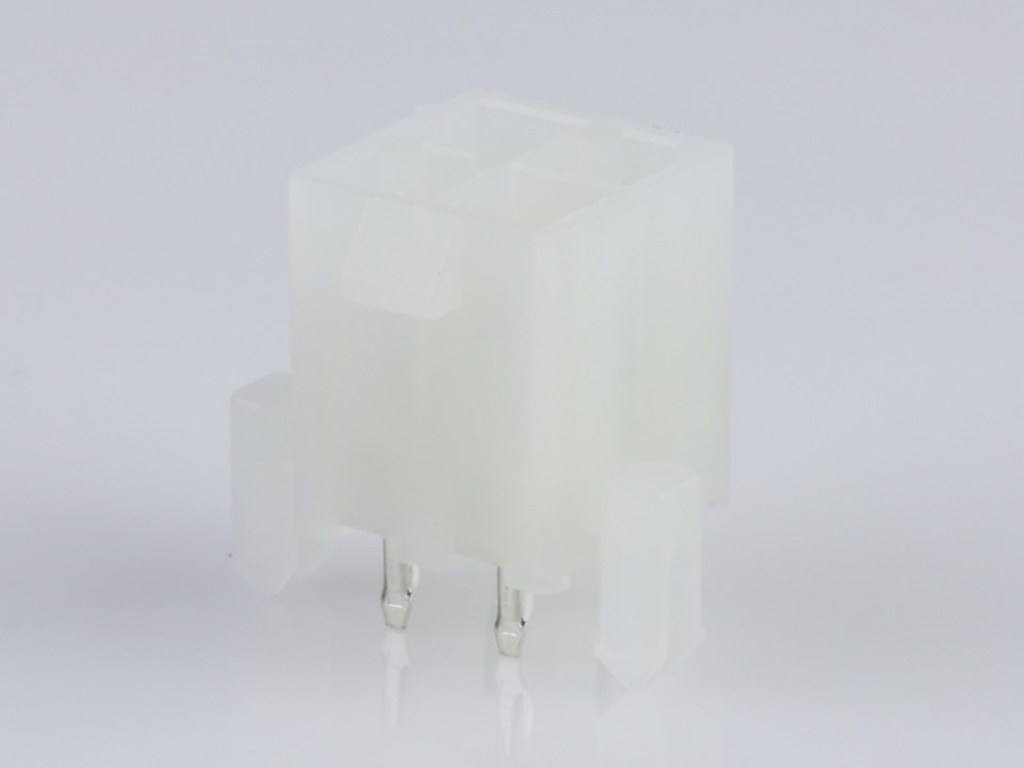

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 4 Circuits, with Snap-in Plastic Peg PCB Lock, Tin, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-29-9043,
0039299043, A-5566-04A2 |
Where to Buy
Prices starting from US$0.25
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.27
|
31,131
in stock
|
Buy Now |
|
Conrad
from US$0.82
|
15,330
in stock
|
Buy Now |
|
Farnell
from US$0.49
|
13,798
in stock
|
Buy Now |
|
TTI Americas
from US$0.29
|
10,700
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.46
|
7,800
in stock
|
Buy Now |
|
Newark Electronics
from US$0.66
|
776
in stock
|
Buy Now |
|
element14
from US$0.54
|
776
in stock
|
Buy Now |
|
RS
from US$0.55
|
277
in stock
|
Buy Now |
|
TME
from US$0.90
|
169
in stock
|
Buy Now |
|
|
RS Americas
from US$0.25
|
99
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
54
in stock
|
Buy Now |
|
Avnet America
from US$0.36
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.43
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.48
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 1.001/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.889µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 4POS .165 TIN ST V-2 HDR | Heilind Americas |
| Molex Stiftgehäuse-Platine 39299043 1 St. | Conrad |
| CONN, HEADER, 4POS, 2ROW, 4.2MM | Farnell |
| MINI-FIT JR HDR 04P 94V-2 SN | TTI Americas |
| MINI-FIT JR. HEADER 94V-2 | TTI Europe |
| Connector, Header, 4Pos, 2Row, 4.2Mm | Newark Electronics |
| CONNECTOR, HEADER, 4POS, 2ROW, 4.2MM | element14 |
| Molex 39-29-9043 PCB Header | RS |
| Connector: wire-board | TME |
| HEADER 4.20MM, D/R, VERT, PCB LOCK, 4W | RS Americas |
| Pin Header, Power, Wire-to-Board, 4.2 mm, 2 Rows, 4 Contacts, Through Hole Straight | Avnet America |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 39299043?
Additional datasheets, footprints and schematics for 39299043 are listed on our Part Details page. You can also find images and similar parts to 39299043 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 39299043 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 39299043 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 39299043 fall under?
The 39299043 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 39299043 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 39299043 you can contact the distributor directly for product support, shipping queries etc.
Is the 39299043 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 39299043 have stock available?
Authorised distributors including Heilind Americas, Conrad, Farnell, TTI Americas and TTI Europe have stock available or on a lead time for 39299043.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 39299043 often in real-time on the comparison pages.
What if I can't find stock of 39299043?
You can fill out our help required form which you can use to request a quote for 39299043 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
