39299063 Mini-Fit Jr. by Molex

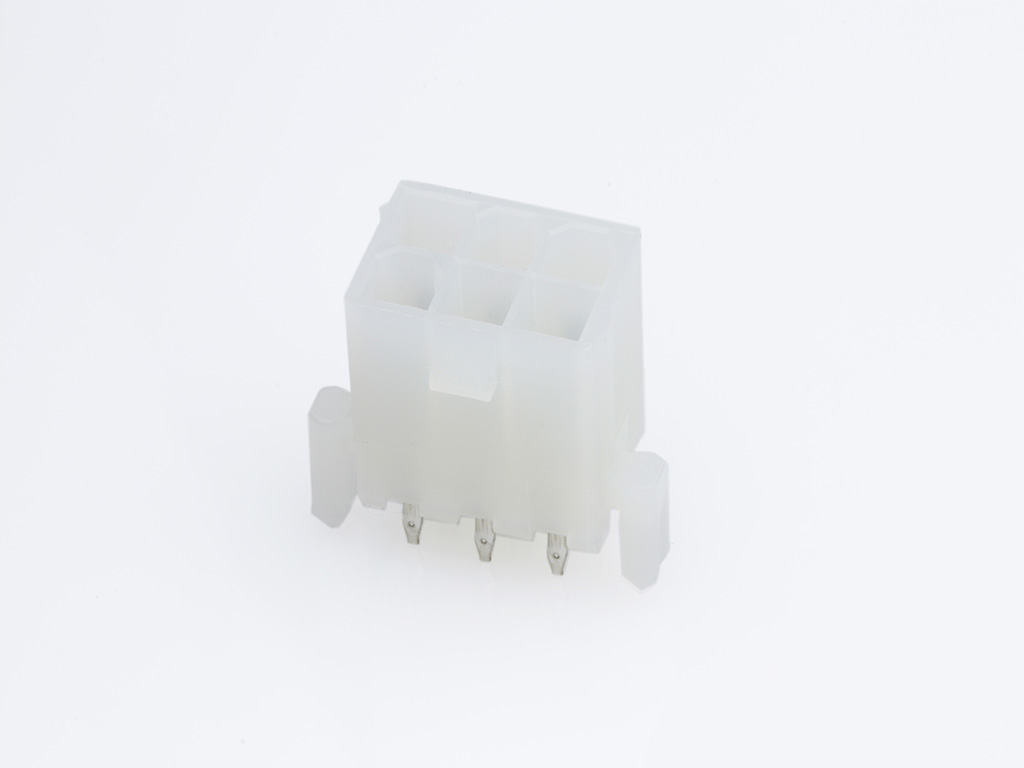

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 6 Circuits, with Snap-in Plastic Peg PCB Lock, Tin, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-29-9063,
0039299063, 5566-06A2 |
Where to Buy
Prices starting from US$0.35
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.36
|
65,902
in stock
|
Buy Now |
|
Avnet America
from US$0.35
|
21,297
in stock
|
Buy Now |
|
TTI Europe
from US$0.51
|
12,000
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.43
|
9,760
in stock
|
Buy Now |
|
Conrad
from US$0.95
|
8,809
in stock
|
Buy Now |
|
Farnell
from US$0.74
|
7,929
in stock
|
Buy Now |
|
Newark Electronics
from US$0.68
|
750
in stock
|
Buy Now |
|
RS
from US$0.73
|
527
in stock
|
Buy Now |
|
|
RS Americas
from US$0.40
|
95
in stock
|
Buy Now |
|
TME
from US$0.59
|
4
in stock
|
Buy Now |
|
Sager
from US$0.47
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.49
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1.374/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.889µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| A-5566-06A2 | Heilind Americas |
| MINI-FIT JR. HEADER 94V-2 | TTI Europe |
| MINI-FIT JR HDR 06P VT 94V-2 | TTI Americas |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 6 Rastermaß: 4.2 mm 39299063 1 St. Tray | Conrad |
| CONN, HEADER, 6POS, 2ROW, 4.2MM | Farnell |
| Connector, Header, 6Pos, 2Row, 4.2Mm | Newark Electronics |
| Molex 39-29-9063 PCB Header | RS |
| HEADER 4.20MM, D/R, VERT, PCB LOCK, 6W | RS Americas |
| Connector: wire-board | TME |
| Headers & Wire Housings MINI-FIT JR HDR 06P VT 94V-2 | Sager |
