39299066 Mini-Fit Jr. by Molex

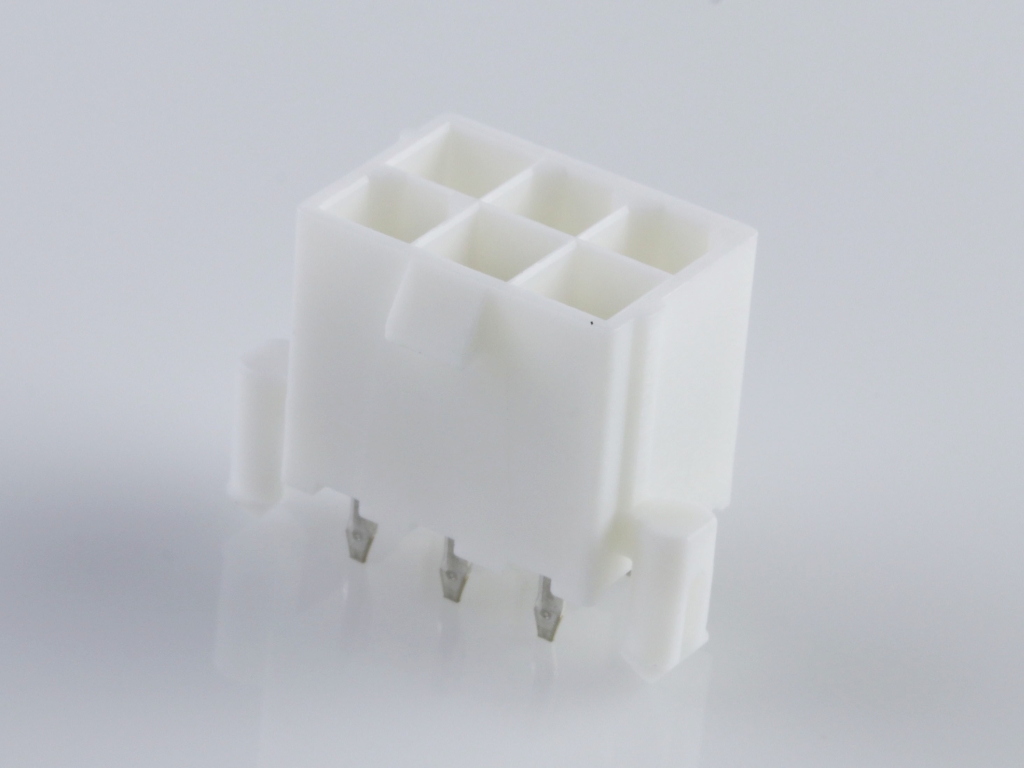

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 6 Circuits, with Snap-in Plastic Peg PCB Lock, Tin, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-29-9066,
0039299066, 5566-06B2-210 |
Where to Buy
Prices starting from US$0.52
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.77
|
15,185
in stock
|
Buy Now |
|
Avnet America
from US$0.52
|
15,185
in stock
|
Buy Now |
|
Heilind Americas
from US$0.53
|
14,724
in stock
|
Buy Now |
|
TME
from US$0.72
|
3,712
in stock
|
Buy Now |
|
Farnell
from US$0.96
|
129
in stock
|
Buy Now |
|
Avnet Abacus
-
|
75
in stock
|
Buy Now |
|
RS Americas
from US$0.96
|
0
in stock
|
Buy Now |
|
Conrad
from US$1.06
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.55
|
0
in stock
|
Buy Now |
|
Sager
from US$0.61
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.55
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.53
|
0
in stock
|
Buy Now |
|
Rutronik
-
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 1.438/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.889µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Mini-Fit Hdr Assy 6Ckt Rohs Compliant: Yes |Molex 39-29-9066 | Newark Electronics |
| Pin Header, Power, Wire-to-Board, 4.2 mm, 2 Rows, 6 Contacts, Through Hole Straight | Avnet America |
| MINI-FIT HDR ASSY 6CKT | Heilind Americas |
| Connector: wire-board | TME |
| CONNECTOR, HEADER, 6POS, 2ROW, 4.2MM | Farnell |
| HEADER 4.20MM, D/R, VERT, PCB LOCK, 6W | RS Americas |
| Molex Einbau-Stiftleiste (Standard) 39299066 1 St. Tray | Conrad |
| MINI-FIT JR HDR 06P VT 94V-0 | TTI Americas |
| Headers & Wire Housings MINI-FIT JR HDR 06P VT 94V-0 | Sager |
| 06P Mini-Fit 2 ROW W PEGS | Rutronik |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 39299066?
Additional datasheets, footprints and schematics for 39299066 are listed on our Part Details page. You can also find images and similar parts to 39299066 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 39299066 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 39299066 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 39299066 fall under?
The 39299066 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 39299066 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 39299066 you can contact the distributor directly for product support, shipping queries etc.
Is the 39299066 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 39299066 have stock available?
Authorised distributors including Newark Electronics, Avnet America, Heilind Americas, TME and Farnell have stock available or on a lead time for 39299066.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 39299066 often in real-time on the comparison pages.
What if I can't find stock of 39299066?
You can fill out our help required form which you can use to request a quote for 39299066 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
