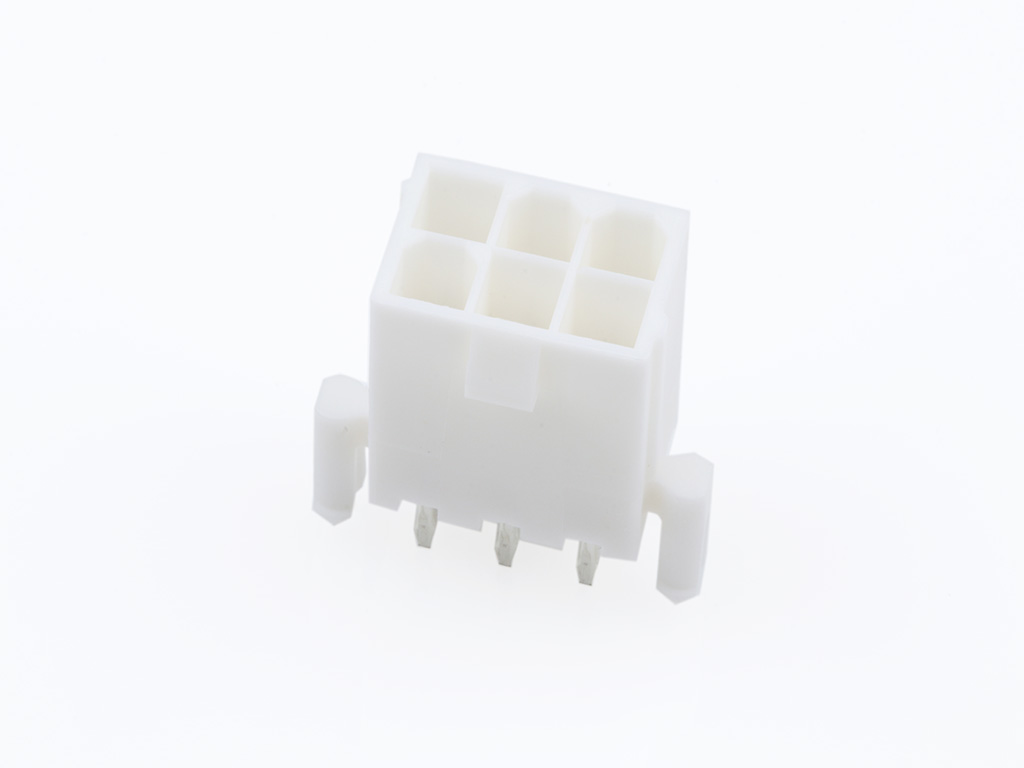

39299067 Mini-Fit Jr. by Molex
Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 6 Circuits, with Snap-in Plastic Peg PCB Lock, Tin, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-29-9067,
0039299067, A-5566-06A2-210 |
Where to Buy
Prices starting from US$0.17
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.81
|
28,203
in stock
|
Buy Now |
|
Farnell
from US$0.85
|
25,384
in stock
|
Buy Now |
|
Heilind Americas
from US$0.61
|
9,622
in stock
|
Buy Now |
|
TTI Europe
from US$0.54
|
7,680
in stock
|
Buy Now |
|
element14
from US$0.67
|
5,982
in stock
|
Buy Now |
|
RS
from US$0.99
|
150
in stock
|
Buy Now |
|
TME
from US$0.72
|
75
in stock
|
Buy Now |
|
Newark Electronics
from US$0.17
|
5
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.55
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.46
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1.412/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.889µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Stiftgehäuse-Platine 39299067 1 St. | Conrad |
| CONN, HEADER, 6POS, 2ROW, 4.2MM | Farnell |
| A-5566-06A-21 | Heilind Americas |
| MINI-FIT JR. HEADER 94V-0 | TTI Europe |
| CONNECTOR, HEADER, 6POS, 2ROW, 4.2MM | element14 |
| Molex 39299067 PCB Header | RS |
| Connector: wire-board | TME |
| Connector, Header, 6Pos, 2Row, 4.2Mm | Newark Electronics |
| MINI-FIT JR HDR 06P VT 94V-0 | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 39299067?
Additional datasheets, footprints and schematics for 39299067 are listed on our Part Details page. You can also find images and similar parts to 39299067 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 39299067 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 39299067 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 39299067 fall under?
The 39299067 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 39299067 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 39299067 you can contact the distributor directly for product support, shipping queries etc.
Is the 39299067 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 39299067 have stock available?
Authorised distributors including Conrad, Farnell, Heilind Americas, TTI Europe and element14 have stock available or on a lead time for 39299067.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 39299067 often in real-time on the comparison pages.
What if I can't find stock of 39299067?
You can fill out our help required form which you can use to request a quote for 39299067 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
