39299069 Mini-Fit Jr. by Molex

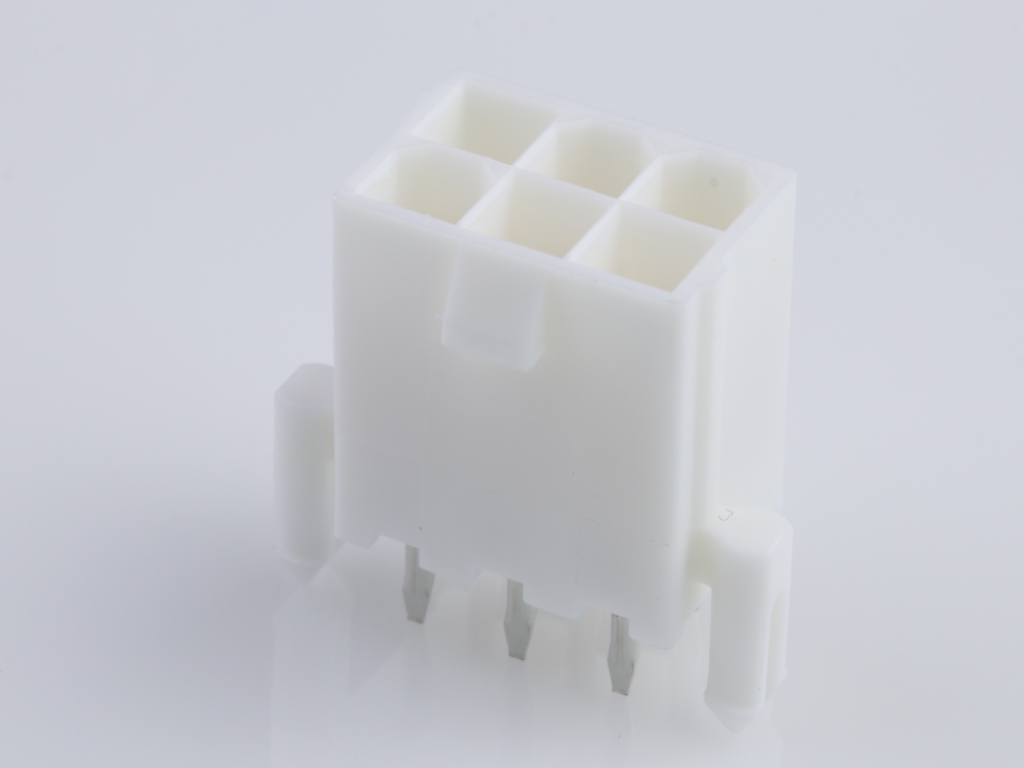

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 6 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-29-9069,
0039299069, 5566-06A2GS-210 |
Where to Buy
Prices starting from US$1.71
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$2.20
|
6,392
in stock
|
Buy Now |
|
TME
from US$1.92
|
6,392
in stock
|
Buy Now |
|
Conrad
from US$2.75
|
6,392
in stock
|
Buy Now |
|
Farnell
from US$2.77
|
5,753
in stock
|
Buy Now |
|
RS
from US$3.18
|
0
in stock
|
Buy Now |
|
Avnet America
from US$2.17
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.98
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$2.13
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.05
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.71
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 1.412/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Plug And Socket Connector | Newark Electronics |
| Connector: wire-board | TME |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 6 Rastermaß: 4.20 mm 39299069 1 St. Tray | Conrad |
| CONN, HEADER, 6POS, 2ROW, 4.2MM | Farnell |
| Molex 39-29-9069 PCB Header | RS |
| Pin Header, Power, Wire-to-Board, 4.2 mm, 2 Rows, 6 Contacts, Through Hole Straight | Avnet America |
| MINIFIT VERT HDR, DUAL ROW, 6 CKT, GOLD, NATURAL | RS Americas |
| MINI-FIT JR HDR 06P VT 94V-0 | TTI Americas |
| A-5566-06A2GS | Heilind Americas |
