39300200 Mini-Fit Jr. by Molex

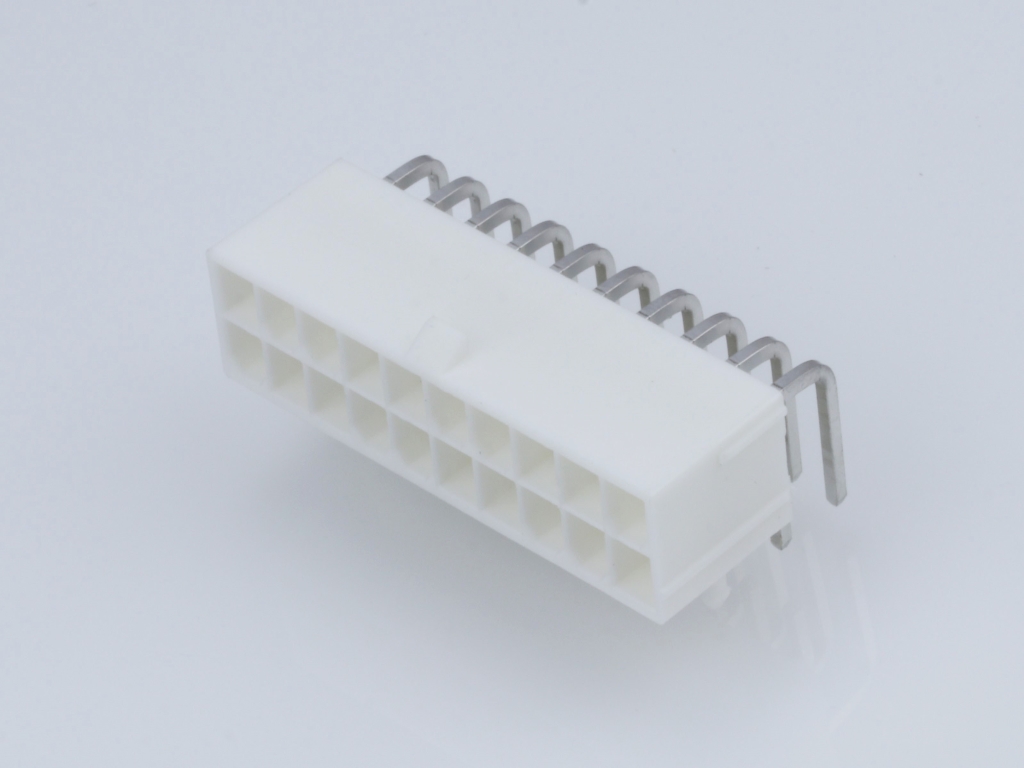

Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 20 Circuits, PA Polyamide Nylon 6/6 94V-0, 2.54µm Matte Tin (Sn) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-30-0200,
0039300200, 5569-20A2-210 |
Where to Buy
Prices starting from US$0.61
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.28
|
3,833
in stock
|
Buy Now |
|
Farnell
from US$4.29
|
3,455
in stock
|
Buy Now |
|
TTI Americas
from US$2.52
|
1,965
in stock
|
Buy Now |
|
|
TTI Europe
from US$2.87
|
1,625
in stock
|
Buy Now |
|
Heilind Americas
from US$2.42
|
736
in stock
|
Buy Now |
|
TME
from US$2.70
|
138
in stock
|
Buy Now |
|
RS
from US$2.35
|
125
in stock
|
Buy Now |
|
element14
from US$3.26
|
86
in stock
|
Buy Now |
|
Newark Electronics
from US$0.61
|
1
in stock
|
Buy Now |
|
Avnet America
from US$3.09
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.36
|
0
in stock
|
Buy Now |
|
Compona
from US$1.85
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.78
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$2.48
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 20 |
| Circuits Maximum | 20 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 7.198/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.78mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 20 Rastermaß: 4.20 mm 39-30-0200 1 St. Bag | Conrad |
| CONN, HEADER, 20POS, 2ROW, 4.2MM | Farnell |
| MINI-FIT JR HDR 20P RA 94V-0 | TTI Americas |
| MINI-FIT JR. HEADER 94V-0 | TTI Europe |
| MINIFIT JR RA DR /PEGS TIN V-0 | Heilind Americas |
| Connector: wire-board | TME |
| Molex 39-30-0200 PCB Header | RS |
| CONNECTOR, HEADER, 20POS, 2ROW, 4.2MM | element14 |
| Connector, Header, 20Pos, 2Row, 4.2Mm | Newark Electronics |
| Conn Power HDR 20 POS 4.2mm Solder RA Thru-Hole 20 Terminal 1 Port Bag | Avnet America |
| HEADER 4.20MM, DUAL ROW, RA, PCB LOCK,20W | RS Americas |
| MOLEX 39-30-0200 Header 2 Row 90° PCB Lock 20p 94V-0 Tin Plating | Compona |
