39301100 Mini-Fit Jr. by Molex

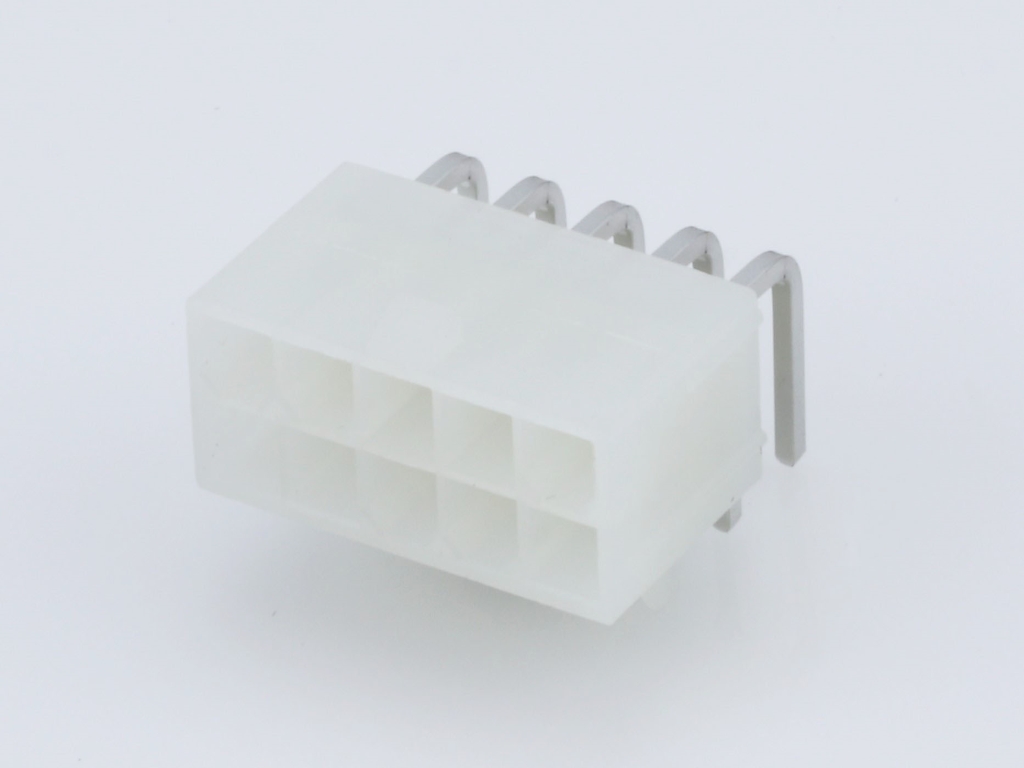

Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 10 Circuits, Nylon 6/6 94V-2, 2.54µm Matte Tin (Sn) Plating, Natural, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-30-1100,
0039301100, 5569-10A2 |
Where to Buy
Prices starting from US$0.42
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.83
|
29,324
in stock
|
Buy Now |
|
TTI Europe
from US$0.59
|
26,400
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.62
|
4,948
in stock
|
Buy Now |
|
Heilind Americas
from US$0.49
|
4,102
in stock
|
Buy Now |
|
Newark Electronics
from US$0.86
|
2,245
in stock
|
Buy Now |
|
element14
from US$0.73
|
1,965
in stock
|
Buy Now |
|
RS
from US$1.04
|
730
in stock
|
Buy Now |
|
Schukat Electronic
from US$0.78
|
575
in stock
|
Buy Now |
|
TME
from US$0.88
|
221
in stock
|
Buy Now |
|
Rapid Electronics
from US$1.05
|
90
in stock
|
Buy Now |
|
Conrad
from US$1.25
|
90
in stock
|
Buy Now |
|
|
RS Americas
from US$0.47
|
46
in stock
|
Buy Now |
|
Avnet Abacus
-
|
30,750
in stock
|
Buy Now |
|
Offical Electronic
-
|
1,415
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
96
in stock
|
Buy Now |
|
Avnet America
from US$0.52
|
0
in stock
|
Buy Now |
|
Compona
from US$0.62
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.65
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.42
|
0
in stock
|
Buy Now |
|
EME
from US$0.82
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 3.692/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.78mm |
| Pc Tail Length | 3.60mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONN, R/A HEADER, 10POS, 2ROW, 4.2MM | Farnell |
| MINI-FIT JR. HEADER 94V-2 | TTI Europe |
| MINI-FIT JR HDR 10P RA 94V-2 | TTI Americas |
| 10CKT R/A MINI FIT HEADER | Heilind Americas |
| Rectangular Power Connector, Right Angle, Mini-Fit Jr Series, Through Hole, Plug, 10, 4.2 Mm Rohs Compliant: Yes |Molex 39301100 | Newark Electronics |
| CONNECTOR, HEADER, 10POS, 2ROW, 4.2MM | element14 |
| Molex 39-30-1100 PCB Header | RS |
| PCB Header angled 2-row 10-pole V-2 | Schukat Electronic |
| Connector: wire-board | TME |
| Molex 39301100 Mini-fit Jr. Header 10 Pins 4.2mm Spacing | Rapid Electronics |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 10 Rastermaß: 4.2 mm 39301100 1 St. Bag | Conrad |
| RT ANGLE HEADER TIN PLATE W/PCB MOUNT PEG 94V-2 10 CIRCT | RS Americas |
| Pin Header, Power, Wire-to-Board, 4.2 mm, 2 Rows, 10 Contacts, Through Hole Right Angle | Avnet Abacus |
| MOLEX 39-30-1100 Header 2 Row 90° PCB Lock 10p 94V-2 Tin Plating | Compona |
