39301200 Mini-Fit Jr. by Molex

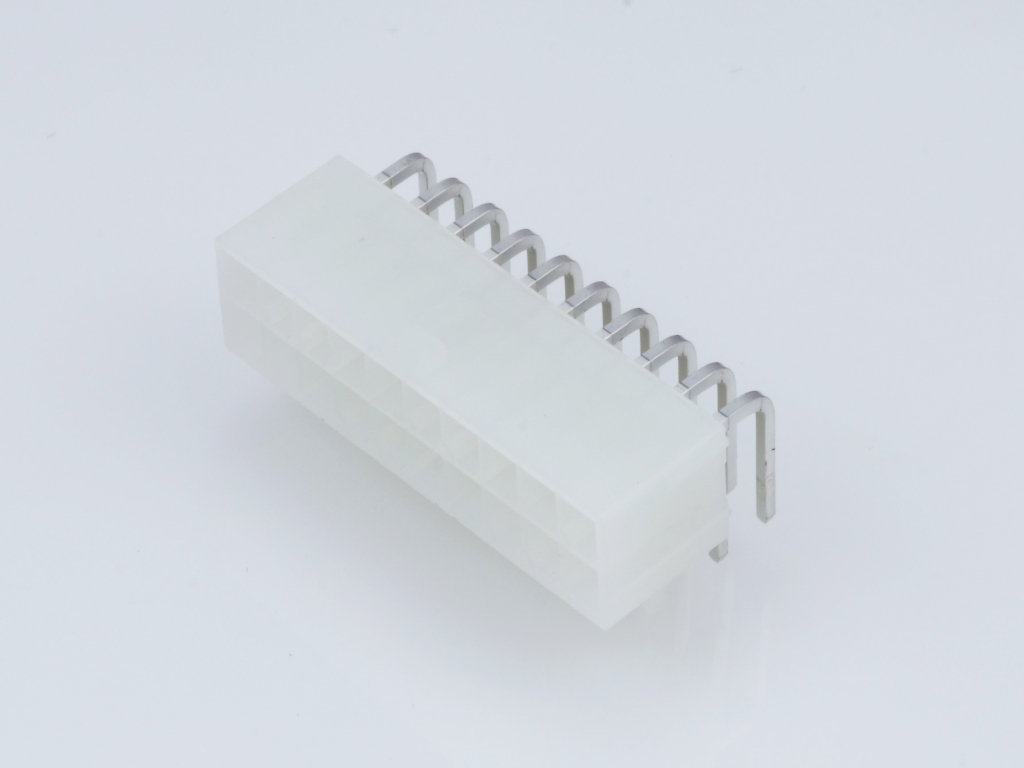

Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 20 Circuits, Nylon 6/6 94V-2, 2.54µm Matte Tin (Sn) Plating, Natural, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-30-1200,
0039301200, 5569-20A2 |
Where to Buy
Prices starting from US$0.89
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$3.33
|
39,444
in stock
|
Buy Now |
|
Farnell
from US$1.96
|
35,500
in stock
|
Buy Now |
|
TTI Americas
from US$1.43
|
5,492
in stock
|
Buy Now |
|
Newark Electronics
from US$2.60
|
981
in stock
|
Buy Now |
|
element14
from US$2.00
|
981
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.61
|
450
in stock
|
Buy Now |
|
RS
from US$2.31
|
361
in stock
|
Buy Now |
|
Heilind Americas
from US$1.07
|
309
in stock
|
Buy Now |
|
|
RS Americas
from US$1.65
|
60
in stock
|
Buy Now |
|
Offical Electronic
-
|
1,842
in stock
|
Buy Now |
|
Avnet America
from US$1.01
|
0
in stock
|
Buy Now |
|
TME
from US$2.21
|
0
in stock
|
Buy Now |
|
Compona
from US$1.62
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.68
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.89
|
0
in stock
|
Buy Now |
|
EME
from US$2.19
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 20 |
| Circuits Maximum | 20 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 7.044/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.78mm |
| Pc Tail Length | 3.60mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
