39301240 Mini-Fit Jr. by Molex

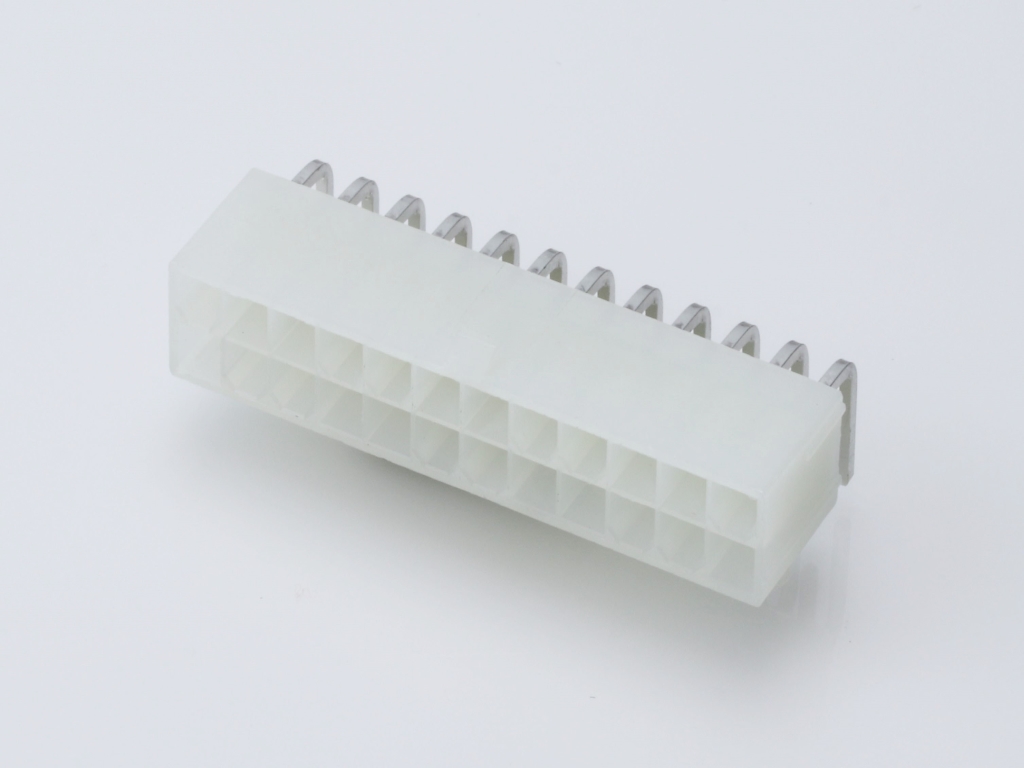

Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 24 Circuits, Nylon 6/6 94V-2, 2.54µm Matte Tin (Sn) Plating, Natural, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-30-1240,
0039301240, 5569-24A2 |
Where to Buy
Prices starting from US$1.29
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$2.41
|
4,005
in stock
|
Buy Now |
|
TTI Europe
from US$2.20
|
3,825
in stock
|
Buy Now |
|
Newark Electronics
from US$3.39
|
2,905
in stock
|
Buy Now |
|
|
TTI Americas
from US$1.37
|
1,795
in stock
|
Buy Now |
|
element14
from US$2.34
|
484
in stock
|
Buy Now |
|
RS
from US$3.94
|
205
in stock
|
Buy Now |
|
TME
from US$3.07
|
43
in stock
|
Buy Now |
|
Conrad
from US$2.52
|
35
in stock
|
Buy Now |
|
Offical Electronic
-
|
976
in stock
|
Buy Now |
|
Avnet Abacus
-
|
975
in stock
|
Buy Now |
|
Avnet America
from US$1.53
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.76
|
0
in stock
|
Buy Now |
|
Compona
from US$1.74
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.55
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.82
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.29
|
0
in stock
|
Buy Now |
|
EME
from US$2.61
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 24 |
| Circuits Maximum | 24 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 8.600/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.78mm |
| Pc Tail Length | 3.60mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
