39303047 Mini-Fit Jr. by Molex

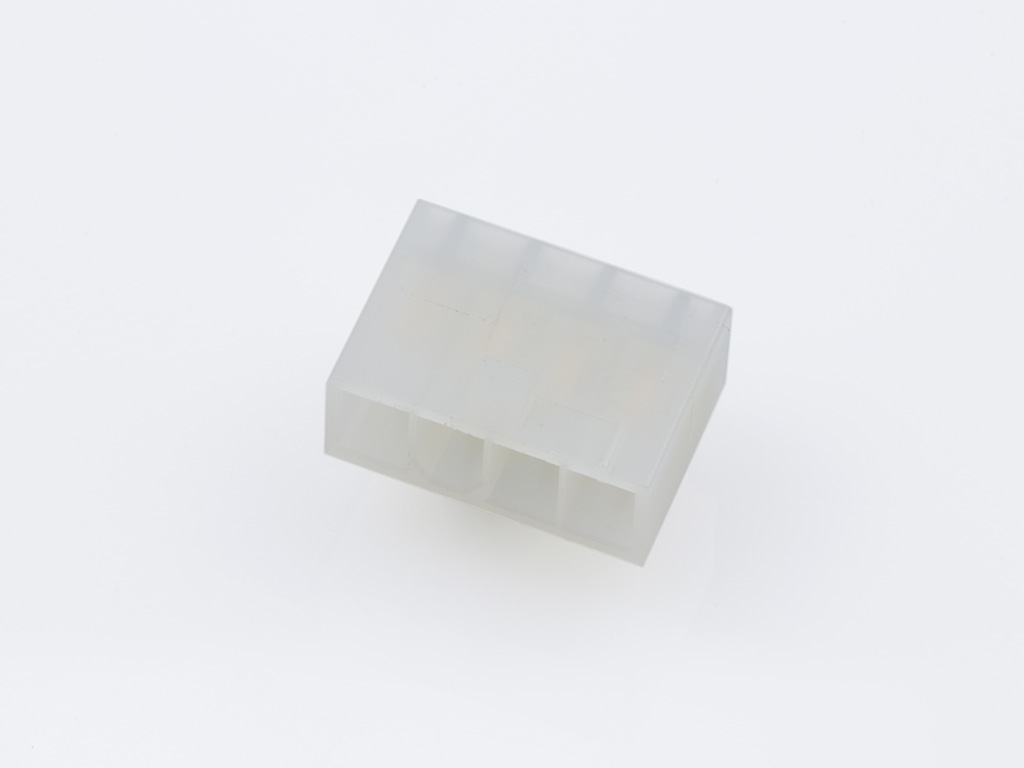

Mini-Fit Jr. Header, Single Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 4 Circuits, PA Polyamide Nylon 6/6, 94V-2, Gold (Au) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-30-3047,
0039303047, 5569-04A4G |
Where to Buy
Prices starting from US$0.74
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.82
|
10,727
in stock
|
Buy Now |
|
Farnell
from US$1.62
|
9,656
in stock
|
Buy Now |
|
Newark Electronics
from US$1.06
|
1,201
in stock
|
Buy Now |
|
Heilind Americas
from US$1.13
|
506
in stock
|
Buy Now |
|
element14
from US$1.34
|
324
in stock
|
Buy Now |
|
RS
from US$1.89
|
241
in stock
|
Buy Now |
|
TME
from US$1.32
|
87
in stock
|
Buy Now |
|
|
RS Americas
from US$0.74
|
9
in stock
|
Buy Now |
|
Avnet America
from US$1.19
|
0
in stock
|
Buy Now |
|
Compona
from US$1.16
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$1.08
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.16
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.03
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.24
|
0
in stock
|
Buy Now |
|
EME
from US$1.40
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 1.430/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.78mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
