39310068 Mini-Fit Jr. by Molex

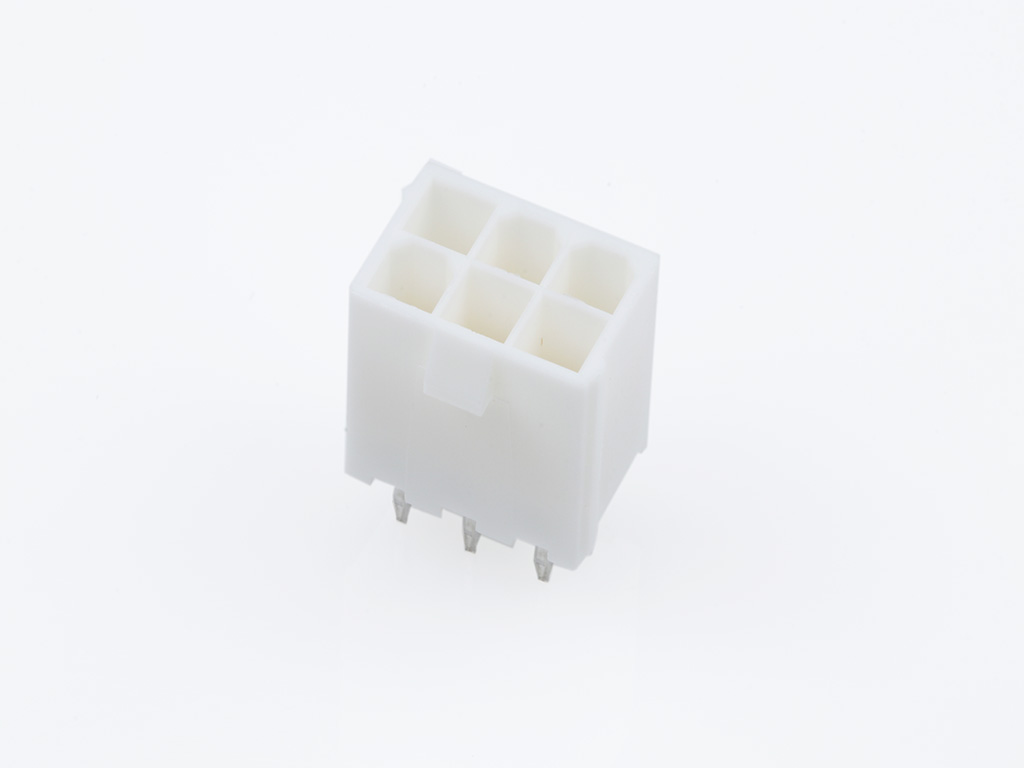

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 6 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-31-0068,
0039310068, 5566-06BGS-210 |
Where to Buy
Prices starting from US$1.56
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$1.64
|
19,835
in stock
|
Buy Now |
|
TTI Americas
from US$1.98
|
6,644
in stock
|
Buy Now |
|
Conrad
from US$1.60
|
3,255
in stock
|
Buy Now |
|
Farnell
from US$3.03
|
2,930
in stock
|
Buy Now |
|
TME
from US$2.04
|
73
in stock
|
Buy Now |
|
Newark Electronics
from US$2.72
|
69
in stock
|
Buy Now |
|
element14
from US$2.34
|
69
in stock
|
Buy Now |
|
Avnet America
from US$2.20
|
0
in stock
|
Buy Now |
|
RS Americas
from US$2.87
|
0
in stock
|
Buy Now |
|
Compona
from US$1.79
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.56
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.66
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 1775.700/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MINIFITJRHDR VT DR O/PGS 30AU V-0 6CKT | Heilind Americas |
| MINI-FIT JR HDR 06P 94V-0 30AU | TTI Americas |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 6 Rastermaß: 4.20 mm 39310068 1 St. Bulk | Conrad |
| CONN, HEADER, 6POS, 2ROW, 4.2MM | Farnell |
| Connector: wire-board | TME |
| Connector, Header, 6Pos, 2Row, 4.2Mm | Newark Electronics |
| CONNECTOR, HEADER, 6POS, 2ROW, 4.2MM | element14 |
| Pin Header, Power, 4.2 mm, 2 Rows, 6 Contacts, Through Hole Straight, Mini-Fit Jr. 5566 Series | Avnet America |
| MOLEX 39-31-0068 Header 2 Row 180° w/o PCB Lock 6p 94V-0 0.76µm Sel Gold Drain Holes | Compona |
