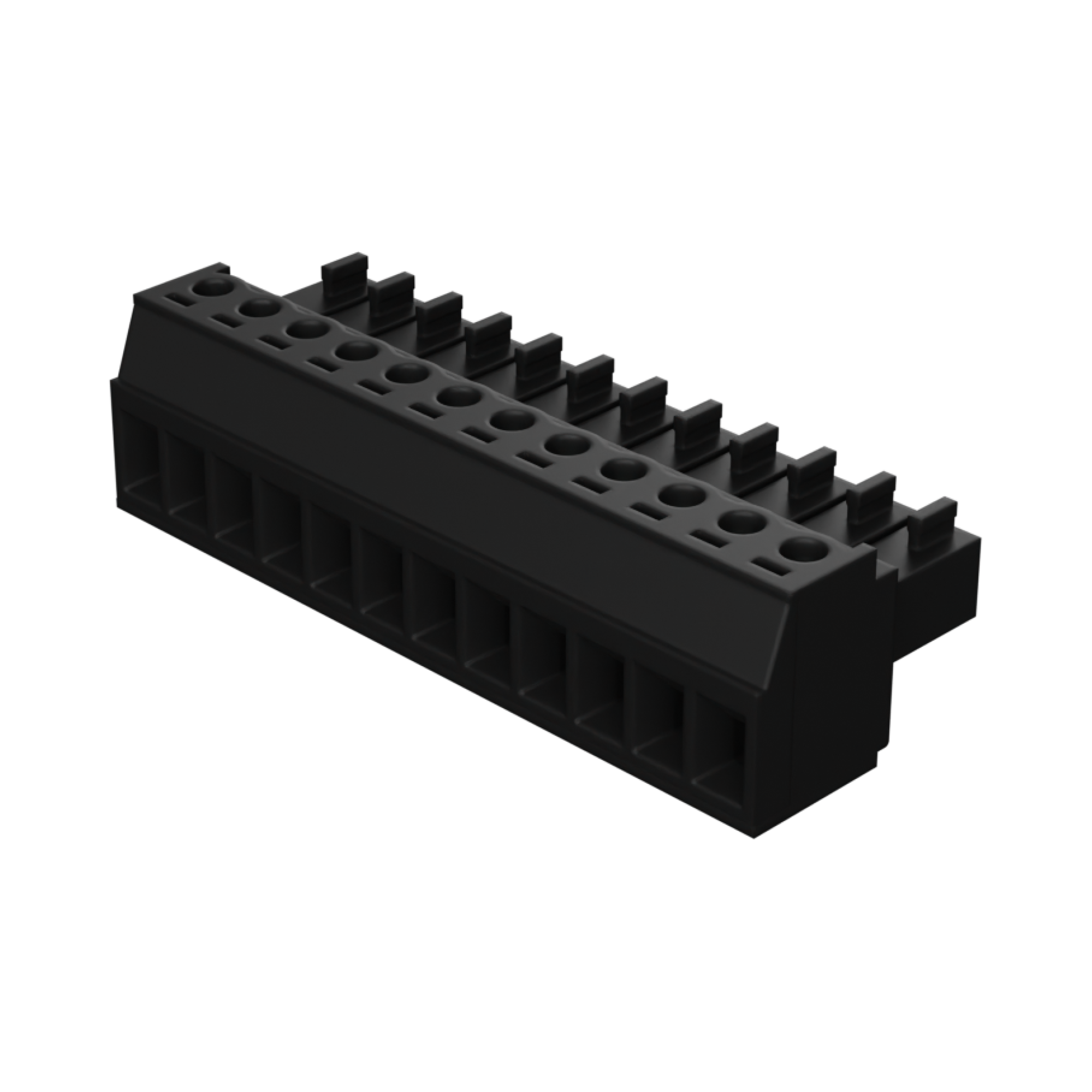

395000012 Eurostyle Pluggable by Molex
3.50mm Pitch Eurostyle Horizontal Plug, 12 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39500-0012,
0395000012 |
Where to Buy
Prices starting from US$2.30
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$3.71
|
750
in stock
|
Buy Now |
|
element14
from US$3.54
|
633
in stock
|
Buy Now |
|
Farnell
from US$3.32
|
633
in stock
|
Buy Now |
|
Newark Electronics
from US$3.11
|
0
in stock
|
Buy Now |
|
Conrad
from US$4.83
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$3.15
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.30
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.66
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Eurostyle Pluggable |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.0A |
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Circuits Loaded | 12 |
| Circuits Maximum | 12 |
| Color Resin | Black |
| Entry Angle | Vertical |
| Lock To Mating Part | No |
| Net Weight | 9.400/g |
| Number Of Rows | 1 |
| Orientation | N/A |
| Panel Mount | No |
| Pcb Retention | N/A |
| Pitch Mating Interface | 3.50mm |
| Pitch Termination Interface | 3.50mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Size Awg | 16, 18, 20, 22, 24, 30 |
| Wire Size Mm | 0.05-1.50 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 395000012 Pluggable Terminal Block | RS |
| TERMINAL BLOCK, PLUGGABLE, 12WAY, 16AWG | element14 |
| Terminal Block, Pluggable, 12Pos, 16Awg | Newark Electronics |
| Molex 395000012 Printklemme Polzahl 12 1 St. | Conrad |
| 3.5MM EURO PLUG RA BLK 12CKT | TTI Europe |
