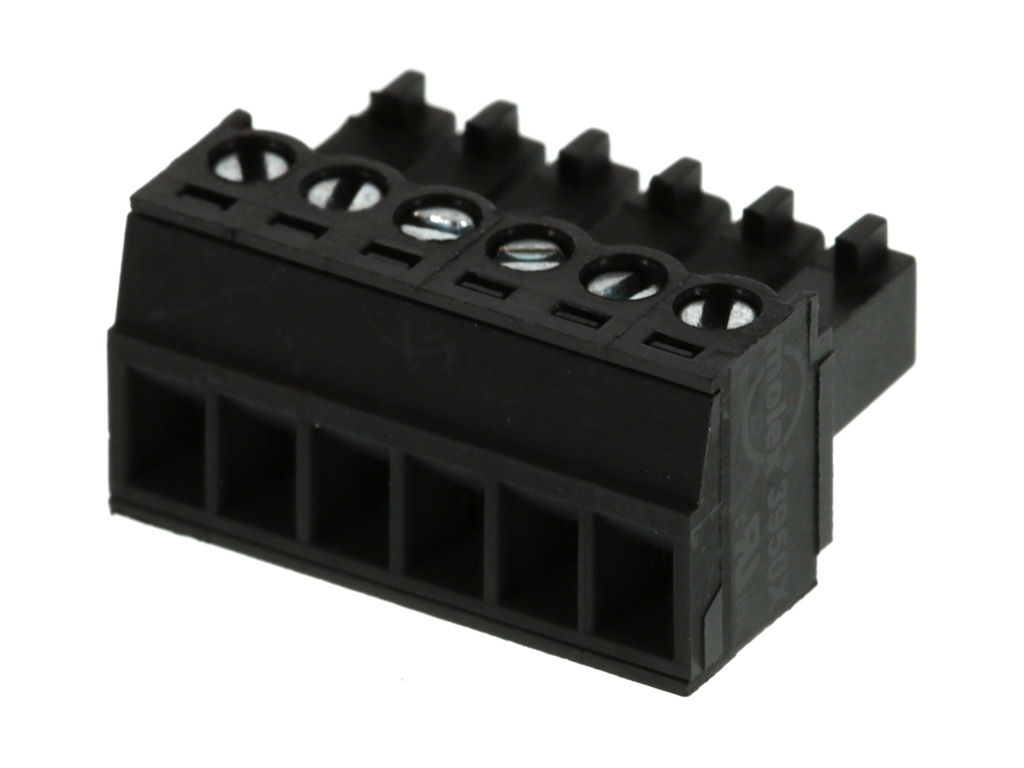

395000506 Eurostyle Pluggable by Molex
3.50mm Pitch Eurostyle Horizontal Plug, Gold (Au) Plated, Black, 6 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39500-0506,
0395000506 |
Specifications
| Product Name | Eurostyle Pluggable |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.0A |
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Circuits Loaded | 6 |
| Color Resin | Black |
| Entry Angle | Vertical |
| Lock To Mating Part | No |
| Net Weight | 4.680/g |
| Number Of Rows | 1 |
| Orientation | N/A |
| Panel Mount | No |
| Pcb Retention | N/A |
| Pitch Mating Interface | 3.50mm |
| Pitch Termination Interface | 3.50mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Size Awg | 16, 18, 20, 22, 24, 30 |
| Wire Size Mm | 0.05-1.50 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Terminal Block, Pluggable, 6Pos, 16Awg | Newark Electronics |
| 3.5MM EURO PLUG RA BLK AU 6CKT | RS Americas |
