395051005 Eurostyle Pluggable by Molex

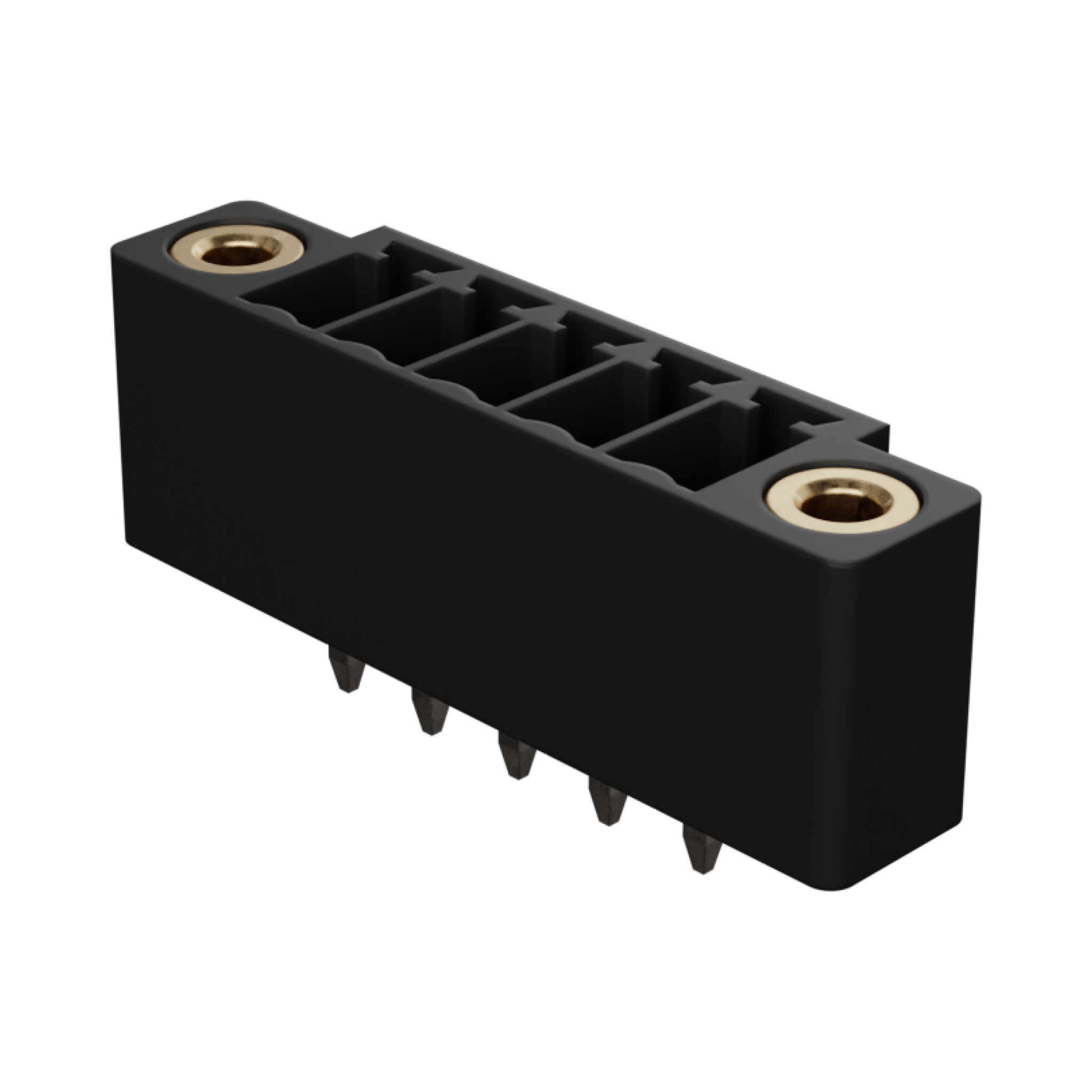

3.50mm Pitch Eurostyle Vertical PCB Header, with Threaded Retention Inserts, 5 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39505-1005,
0395051005 |
Specifications
| Product Name | Eurostyle Pluggable |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.0A |
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Circuits Loaded | 5 |
| Circuits Maximum | 5 |
| Color Resin | Black |
| Entry Angle | N/A |
| Lock To Mating Part | Yes |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Panel Mount | No |
| Pcb Thickness Recommended | 2.50mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 3.50mm |
| Pitch Termination Interface | 3.50mm |
| Polarized To Mating Part | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Size Awg | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Pin Header, Eurostyle, 5Pos, 3.5Mm | Newark Electronics |
| 3.5MM EURO HEADER VERT BLK ME 5CKT | RS Americas |
