395061006 Eurostyle Pluggable by Molex

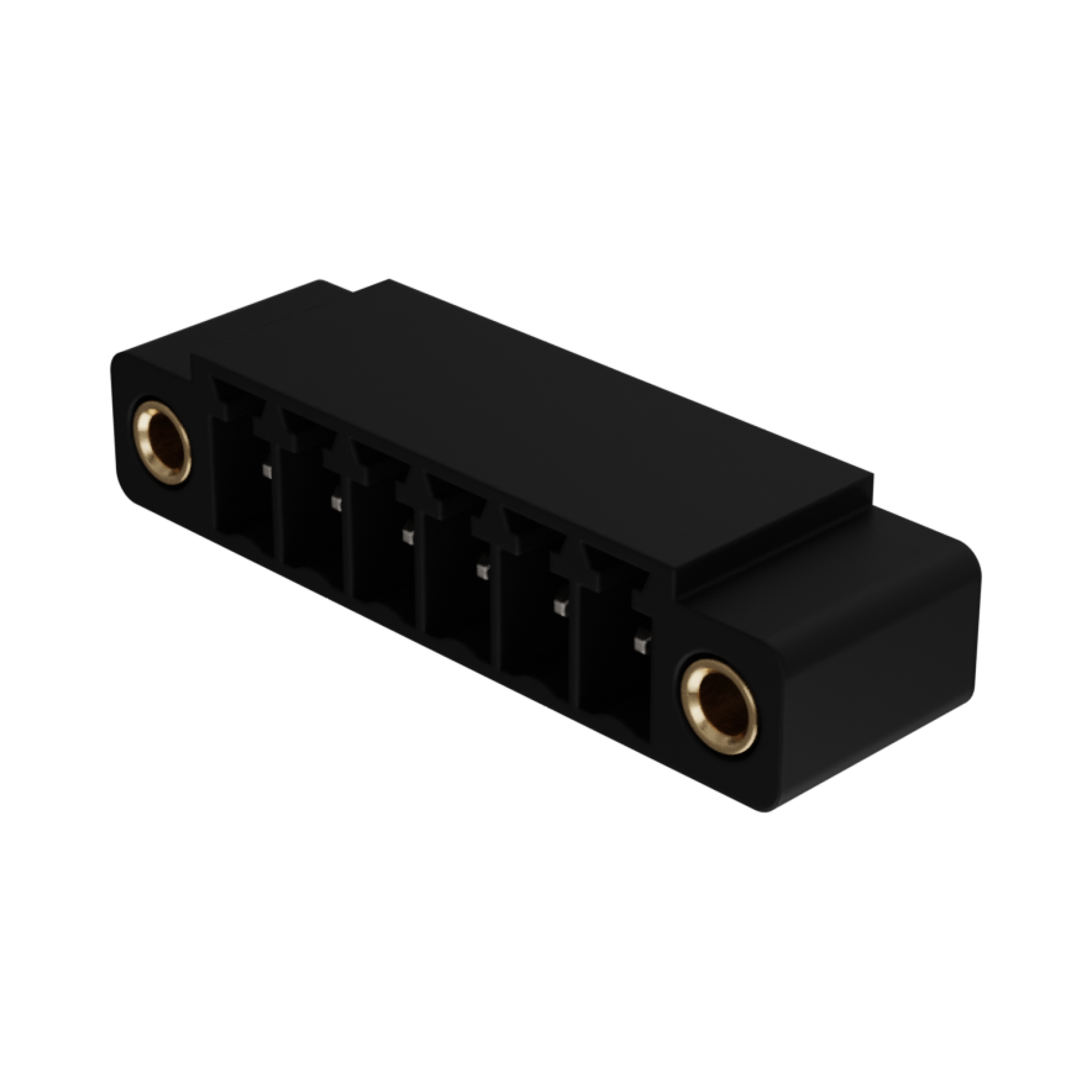

3.50mm Pitch Eurostyle Right-Angle PCB Header, with Threaded Retention Inserts, 6 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39506-1006,
0395061006 |
Where to Buy
Prices starting from US$1.07
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.24
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.24
|
0
in stock
|
Buy Now |
|
Conrad
from US$2.29
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.07
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.16
|
0
in stock
|
Buy Now |
|
Farnell
from US$1.33
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Eurostyle Pluggable |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.0A |
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Entry Angle | N/A |
| Lock To Mating Part | Yes |
| Net Weight | 2.160/g |
| Number Of Rows | 1 |
| Orientation | Horizontal |
| Panel Mount | No |
| Pcb Thickness Recommended | 2.50mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 3.50mm |
| Pitch Termination Interface | 3.50mm |
| Polarized To Mating Part | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Size Awg | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Pin Header, Eurostyle, 6Pos, 3.5Mm | Newark Electronics |
| 3.5MM EURO HEADER RA BLK ME 6CKT | RS Americas |
| Molex 395061006 Printklemme Polzahl 6 1 St. | Conrad |
| 3.5MM EURO HEADER RA BLK ME 6 KT | Heilind Americas |
| Conn Wire to Board HDR 6 POS 3.5mm Solder RA Thru-Hole | Avnet Abacus |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 395061006?
Additional datasheets, footprints and schematics for 395061006 are listed on our Part Details page. You can also find images and similar parts to 395061006 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 395061006 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 395061006 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 395061006 fall under?
The 395061006 is listed under Terminal Blocks and Barrier Strip.
Can I view similar or alternative parts?
You can view similar parts to 395061006 when available in the Terminal Blocks and Barrier Strip range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 395061006 you can contact the distributor directly for product support, shipping queries etc.
Is the 395061006 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 395061006 have stock available?
Authorised distributors including Newark Electronics, RS Americas, Conrad, Heilind Americas and Heilind Europe have stock available or on a lead time for 395061006.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 395061006 often in real-time on the comparison pages.
What if I can't find stock of 395061006?
You can fill out our help required form which you can use to request a quote for 395061006 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
