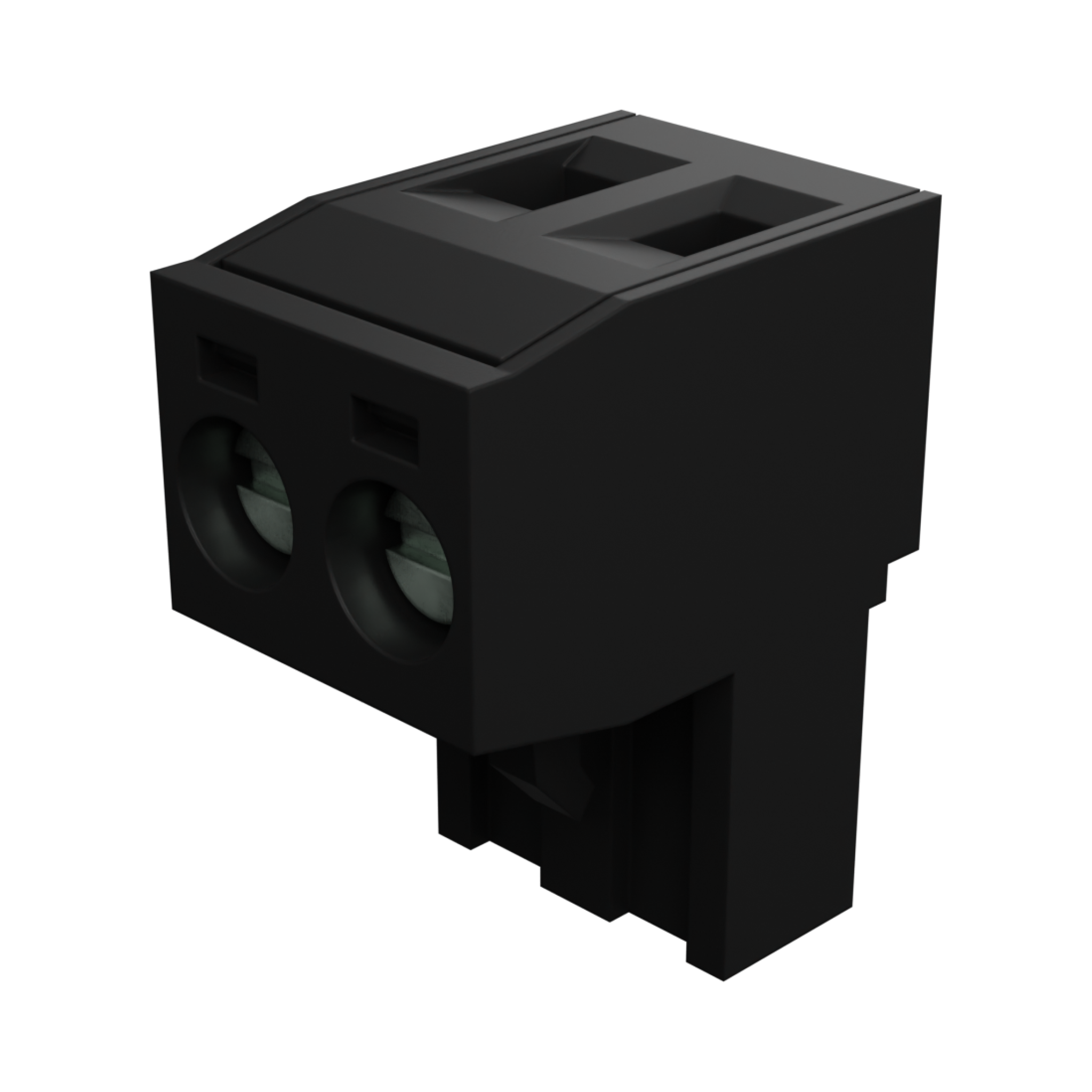

395300002 Eurostyle Pluggable by Molex
5.08mm Pitch Eurostyle Horizontal Plug, 2 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39530-0002,
0395300002 |
Where to Buy
Prices starting from US$0.54
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$1.27
|
9,505
in stock
|
Buy Now |
|
Heilind Americas
from US$0.54
|
6,442
in stock
|
Buy Now |
|
Newark Electronics
from US$1.39
|
1,844
in stock
|
Buy Now |
|
element14
from US$1.19
|
1,844
in stock
|
Buy Now |
|
RS
from US$1.47
|
1,440
in stock
|
Buy Now |
|
Rapid Electronics
from US$1.14
|
807
in stock
|
Buy Now |
|
Conrad
from US$1.29
|
807
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.97
|
310
in stock
|
Buy Now |
|
EME
from US$1.28
|
300
in stock
|
Buy Now |
|
TME
from US$1.77
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.08
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.07
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Eurostyle Pluggable |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 18.0A |
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Entry Angle | Vertical |
| Lock To Mating Part | Yes |
| Net Weight | 3.400/g |
| Number Of Rows | 1 |
| Orientation | N/A |
| Panel Mount | No |
| Pcb Retention | N/A |
| Pitch Mating Interface | 5.08mm |
| Pitch Termination Interface | 5.08mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Size Awg | 12, 14, 16, 18, 20, 22, 24, 26 |
| Wire Size Mm | 0.13-3.31 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| TERMINAL BLOCK, PLUGGABLE, 2WAY, 12AWG | Farnell |
| 5.08MM EURO PLUG RA BLK 2CKT | Heilind Americas |
| Terminal Block, Pluggable, 2Way, 12Awg Rohs Compliant: Yes |Molex 39530-0002 | Newark Electronics |
| Molex 395300002 Housing Plug | RS |
| Molex 395300002 Eurostyle Plug 5.08mm Pitch 2-pin Socket Housing | Rapid Electronics |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 2 Rastermaß: 5.08 mm 395300002 1 St. | Conrad |
| Connector: pluggable terminal block | TME |
| 5.08MM EURO PLG 02P RA | TTI Asia |
