39532055 Easy-On by Molex

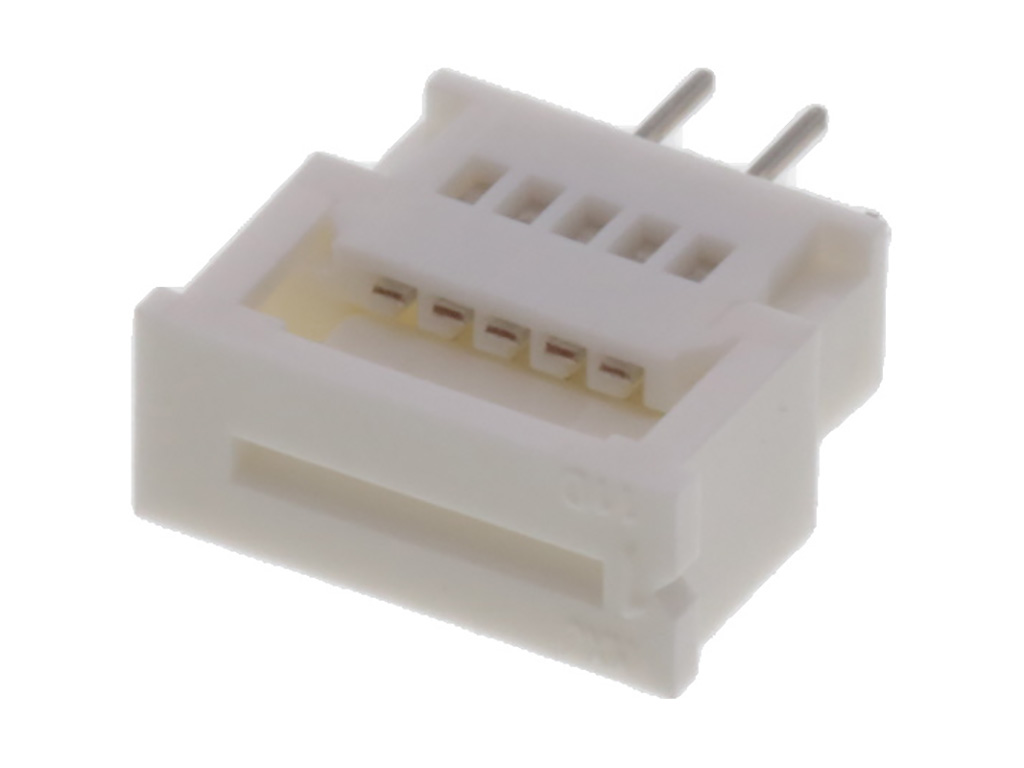

Easy-On FFC/FPC Connector, 1.25mm Pitch, Through-Hole, Vertical, ZIF, 5 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-53-2055,
0039532055, 5597-05CPB7F |
Where to Buy
Prices starting from US$0.29
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.68
|
58,971
in stock
|
Buy Now |
|
Farnell
from US$0.53
|
53,250
in stock
|
Buy Now |
|
TME
from US$0.43
|
51,604
in stock
|
Buy Now |
|
Newark Electronics
from US$0.56
|
4,248
in stock
|
Buy Now |
|
element14
from US$0.51
|
4,248
in stock
|
Buy Now |
|
TTI Europe
from US$0.44
|
3,000
in stock
|
Buy Now |
|
Rutronik
from US$0.44
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.33
|
0
in stock
|
Buy Now |
|
RS Americas
from US$0.54
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.29
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.37
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.42
|
0
in stock
|
Buy Now |
|
EME
from US$0.52
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 200V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 5 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 30 |
| Mated Height | 7.50mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Bismuth |
| Material Plating Termination | Tin-Bismuth |
| Material Resin | Polyester |
| Net Weight | 599.900/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Through Hole |
| Pcb Retention | No |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 1.25mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 5 Rastermaß: 1.25 mm 39532055 1 St. Tray | Conrad |
| FPC CONN, RCPT, 5POS, 1ROW, 1.25MM | Farnell |
| Connector: FFC/FPC | TME |
| Connector, Ffc/Fpc, 5Pos, 1Row, 1.25Mm | Newark Electronics |
| CONNECTOR, FFC/FPC, 5POS, 1ROW, 1.25MM | element14 |
| 1.25 MM FFC/FPC CONNECTOR 5CKT | TTI Europe |
| 05P FFC/FPC ZIF TH 90° Top-Con | Rutronik |
| FFC / FPC Board Connector, 1.25 mm, 5 Contacts, Receptacle, Easy-On 5597, Through Hole | Avnet America |
| CONNECTOR 1.25MM FFC/FPC, T/H, VERT, ZIF,5W | RS Americas |
| 1.25 FFC ZIF HSG ASSY 5CKT | Heilind Americas |
| RECISIONFFC/FPC CONNECTOR 5CKT | TTI Asia |
