39532065 Easy-On by Molex

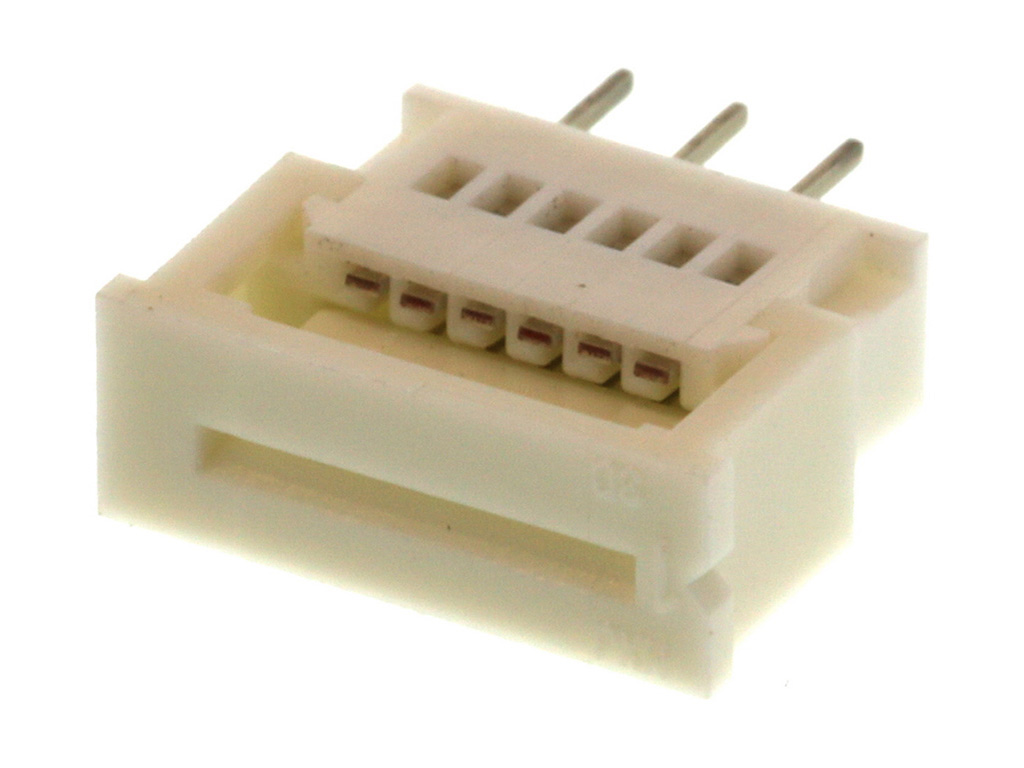

Easy-On FFC/FPC Connector, 1.25mm Pitch, Through-Hole, Vertical, ZIF, 6 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-53-2065,
0039532065, 5597-06CPB7F |
Where to Buy
Prices starting from US$0.34
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.62
|
2,908
in stock
|
Buy Now |
|
element14
from US$0.51
|
2,908
in stock
|
Buy Now |
|
Farnell
from US$0.51
|
2,908
in stock
|
Buy Now |
|
Conrad
from US$0.78
|
2,879
in stock
|
Buy Now |
|
TTI Europe
from US$0.41
|
750
in stock
|
Buy Now |
|
TME
from US$0.61
|
84
in stock
|
Buy Now |
|
RS
from US$0.72
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.41
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.60
|
0
in stock
|
Buy Now |
|
Compona
from US$0.47
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.35
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.40
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.34
|
0
in stock
|
Buy Now |
|
EME
from US$0.57
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 200V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 6 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 30 |
| Mated Height | 7.50mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Bismuth |
| Material Plating Termination | Tin-Bismuth |
| Material Resin | Polyester |
| Net Weight | 677.750/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Through Hole |
| Pcb Retention | No |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 1.25mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Ffc/Fpc Board Connector, Zif, Through Hole, Receptacle, 6, 1.25 Mm Rohs Compliant: Yes |Molex 39-53-2065 | Newark Electronics |
| CONNECTOR, FFC/FPC, 6POS, 1ROW, 1.25MM | element14 |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 6 Rastermaß: 1.25 mm 39532065 1 St. Tray | Conrad |
| 1.25 MM FFC/FPC CONNECTOR 6CKT | TTI Europe |
| Connector: FFC/FPC | TME |
| Molex 39-53-2065 FPC Connector | RS |
| Conn FFC/FPC Connector SKT 6 POS 2.5mm Solder ST Thru-Hole Tray | Avnet America |
| FFC/FPC THROUGH HOLE SER 1.25MM PITCH 6WAY STRAIGHT FEMALE FPC CONN, ZIF CONTACT | RS Americas |
| MOLEX 39-53-2065 Plug FFC/FPC 6p THT | Compona |
| 1.25 FFC ZIF HSG ASSY 6CKT | Heilind Americas |
