39532084 Easy-On by Molex

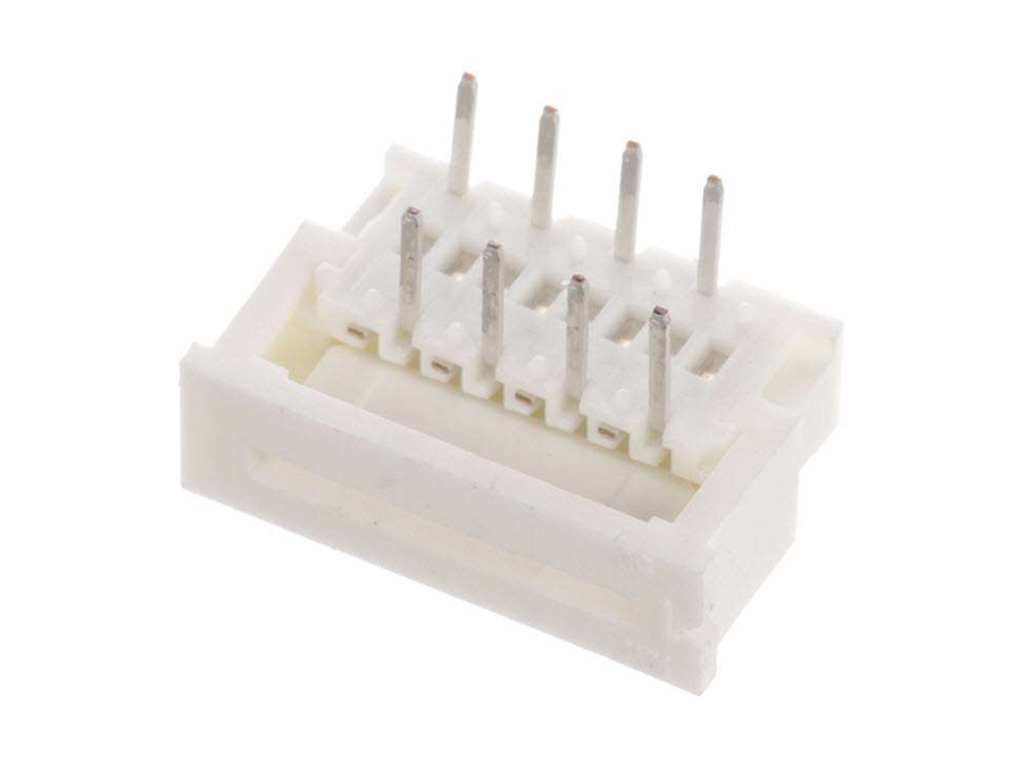

Easy-On FFC/FPC Connector, 1.25mm Pitch, Through-Hole, Right-Angle, ZIF, Top Contact Style, 8 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-53-2084,
0039532084, 5597-08APB7F |
Where to Buy
Prices starting from US$0.49
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$0.63
|
18,800
in stock
|
Buy Now |
|
Newark Electronics
from US$0.90
|
1,435
in stock
|
Buy Now |
|
element14
from US$0.72
|
1,435
in stock
|
Buy Now |
|
Farnell
from US$0.74
|
1,435
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.57
|
320
in stock
|
Buy Now |
|
RS
from US$1.28
|
299
in stock
|
Buy Now |
|
TME
from US$0.82
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.88
|
0
in stock
|
Buy Now |
|
Conrad
from US$1.10
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.49
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.52
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.50
|
0
in stock
|
Buy Now |
|
EME
from US$0.74
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 200V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 8 |
| Color Resin | Natural |
| Contact Position | Top |
| Durability Mating Cycles Max | 30 |
| Mated Height | 5.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Bismuth |
| Material Plating Termination | Tin-Bismuth |
| Material Resin | Polyester |
| Net Weight | 809.750/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Through Hole |
| Pcb Retention | No |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 1.25mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 1.25 MM FFC/FPC CONNECTOR 8CKT | TTI Europe |
| Ffc/Fpc Board Connector, Zif, 5597 Series, Through Hole, Receptacle, 8, Top, 1.25 Mm Rohs Compliant: Yes |Molex 39-53-2084 | Newark Electronics |
| CONNECTOR, FFC/FPC, 8POS, 1ROW, 1.25MM | element14 |
| 1.25MM REC 08P RA TOP TH | TTI Americas |
| 8 way r/a ZIF FFC connector,1.25mm | RS |
| Connector: FFC/FPC | TME |
| 8 WAY R/A ZIF FFC CONNECTOR,1.25MM | RS Americas |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 8 Rastermaß: 1.25 mm 39532084 1 St. Tray | Conrad |
| 1.25 FFC ZIF HSG ASSY 8CKT | Heilind Americas |
