39532135 Easy-On by Molex

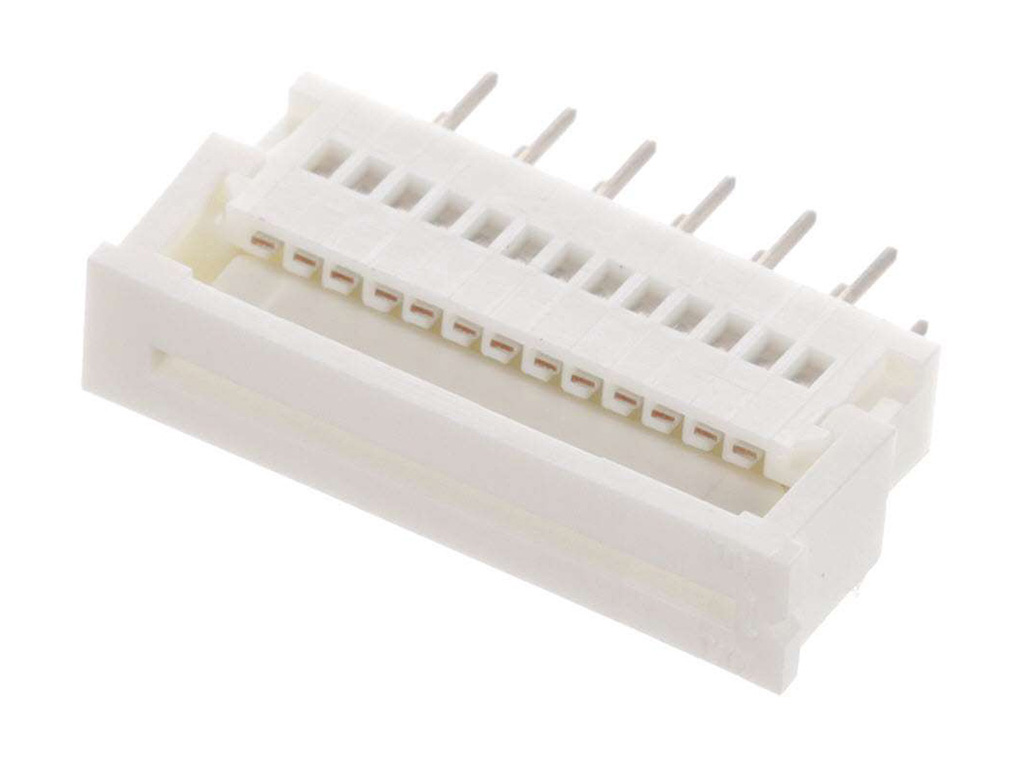

Easy-On FFC/FPC Connector, 1.25mm Pitch, Through-Hole, Vertical, ZIF, 13 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-53-2135,
0039532135, 5597-13CPB7F |
Where to Buy
Prices starting from US$0.50
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.56
|
4,102
in stock
|
Buy Now |
|
TTI Americas
from US$0.64
|
3,330
in stock
|
Buy Now |
|
Conrad
from US$1.12
|
2,321
in stock
|
Buy Now |
|
Farnell
from US$0.93
|
2,160
in stock
|
Buy Now |
|
TME
from US$0.90
|
257
in stock
|
Buy Now |
|
Avnet America
from US$0.50
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.02
|
0
in stock
|
Buy Now |
|
Sager
from US$0.61
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.63
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.61
|
0
in stock
|
Buy Now |
|
EME
from US$0.85
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 200V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 13 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 30 |
| Mated Height | 7.50mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Bismuth |
| Material Plating Termination | Tin-Bismuth |
| Material Resin | Polyester |
| Net Weight | 1223.080/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Through Hole |
| Pcb Retention | No |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 1.25mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Flex Cable Connector, pcb Mount,13 Contacts, number Of Contact Rows:1,pc Tail Terminal, locking Rohs Compliant: Yes |Molex 39-53-2135 | Newark Electronics |
| 1.25MM REC 13P VT TH | TTI Americas |
| Molex FFC/FPC-Anschluss 39532135 1 St. | Conrad |
| FFC-FPC CONNECTOR | Farnell |
| Connector: FFC/FPC | TME |
| Conn FPC Connector SKT 13 POS 2.5mm Solder ST Thru-Hole Tray | Avnet America |
| CONNECTOR 1.25MM FFC/FPC, T/H, VRT, ZIF,13W | RS Americas |
| FFC & FPC Connectors 1.25MM REC 13P VT TH | Sager |
| 1.25 FFC ZIF HSG ASSY 13CKT | Heilind Americas |
