39532205 Easy-On by Molex

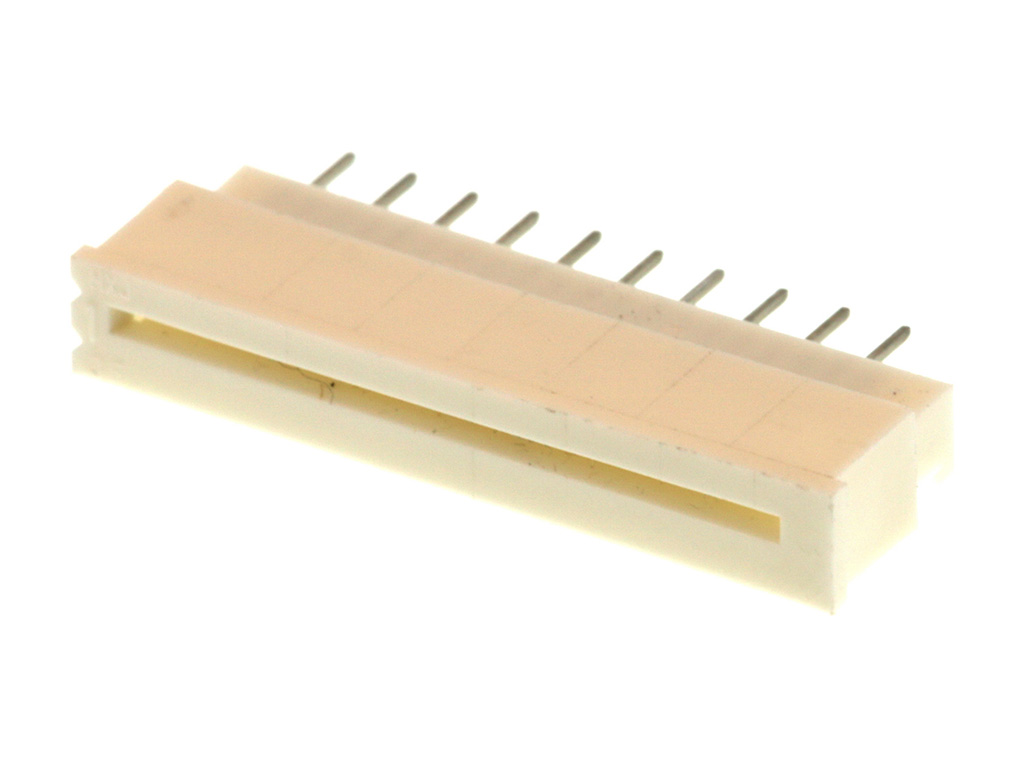

Easy-On FFC/FPC Connector, 1.25mm Pitch, Through-Hole, Vertical, ZIF, 20 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-53-2205,
0039532205, 5597-20CPB7F |
Where to Buy
Prices starting from US$0.84
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$0.97
|
7,700
in stock
|
Buy Now |
|
Conrad
from US$1.81
|
2,807
in stock
|
Buy Now |
|
Farnell
from US$1.59
|
2,527
in stock
|
Buy Now |
|
Newark Electronics
from US$1.34
|
335
in stock
|
Buy Now |
|
element14
from US$1.23
|
335
in stock
|
Buy Now |
|
TME
from US$1.15
|
235
in stock
|
Buy Now |
|
RS
from US$1.32
|
50
in stock
|
Buy Now |
|
Compona
from US$0.87
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.84
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.88
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.93
|
0
in stock
|
Buy Now |
|
EME
from US$1.18
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 200V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 20 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 30 |
| Mated Height | 7.50mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Bismuth |
| Material Plating Termination | Tin-Bismuth |
| Material Resin | Polyester |
| Net Weight | 1768.420/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Through Hole |
| Pcb Retention | No |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 1.25mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 1.25 MM FFC/FPC CONNECTOR 20CK | TTI Europe |
| Molex FFC/FPC-Anschluss 39532205 1 St. | Conrad |
| FPC CONN, RCPT, 20POS, 1ROW, 1.25MM | Farnell |
| Connector, Ffc/Fpc, 20Pos, 1Row, 1.25Mm | Newark Electronics |
| CONNECTOR, FFC/FPC, 20POS, 1ROW, 1.25MM | element14 |
| Connector: FFC/FPC | TME |
| Molex 39-53-2205 FPC Connector | RS |
| MOLEX 39-53-2205 Plug FFC 20p THT | Compona |
| 1.25 FFC ZIF HSG ASSY 20CKT | Heilind Americas |
| 1.25MM REC 20P RA TOP TH | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 39532205?
Additional datasheets, footprints and schematics for 39532205 are listed on our Part Details page. You can also find images and similar parts to 39532205 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 39532205 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 39532205 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 39532205 fall under?
The 39532205 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 39532205 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 39532205 you can contact the distributor directly for product support, shipping queries etc.
Is the 39532205 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 39532205 have stock available?
Authorised distributors including TTI Europe, Conrad, Farnell, Newark Electronics and element14 have stock available or on a lead time for 39532205.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 39532205 often in real-time on the comparison pages.
What if I can't find stock of 39532205?
You can fill out our help required form which you can use to request a quote for 39532205 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
