39532264 Easy-On by Molex

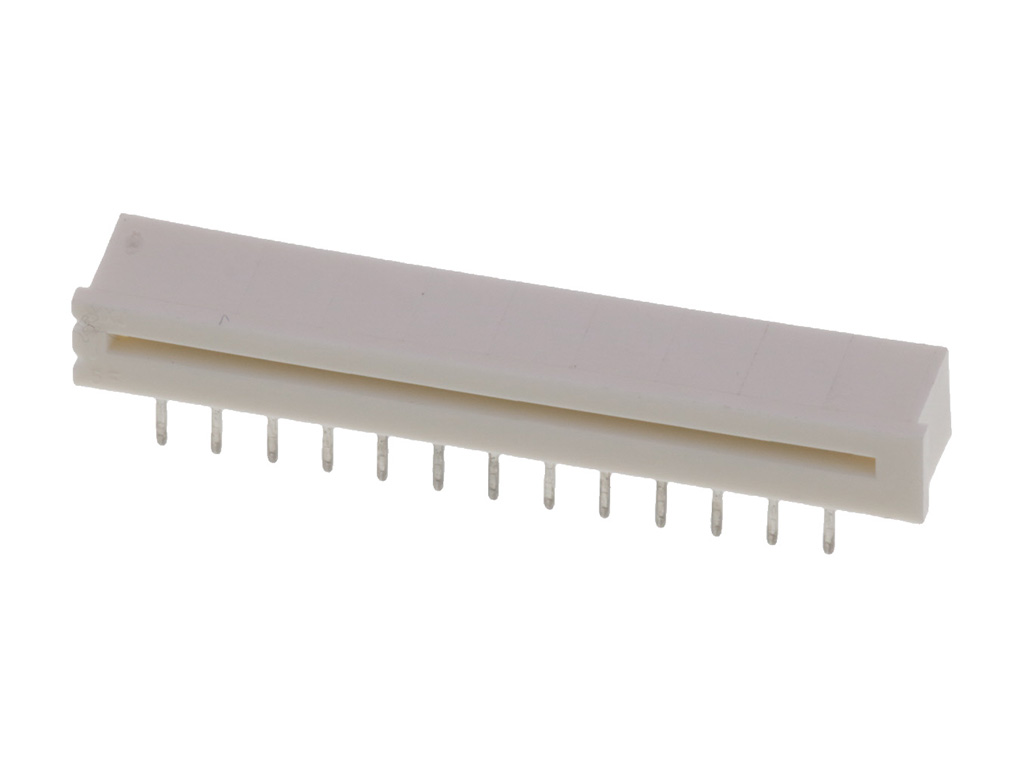

Easy-On FFC/FPC Connector, 1.25mm Pitch, Through-Hole, Right-Angle, ZIF, Top Contact Style, 26 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-53-2264,
0039532264, 5597-26APB7F |
Where to Buy
Prices starting from US$1.29
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$3.55
|
7
in stock
|
Buy Now |
|
Rutronik
from US$1.70
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$1.65
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.50
|
0
in stock
|
Buy Now |
|
Conrad
from US$2.35
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$2.31
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.31
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.29
|
0
in stock
|
Buy Now |
|
Farnell
from US$1.76
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.71
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 200V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 26 |
| Color Resin | Natural |
| Contact Position | Top |
| Durability Mating Cycles Max | 30 |
| Mated Height | 5.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Bismuth |
| Material Plating Termination | Tin-Bismuth |
| Material Resin | Polyester |
| Net Weight | 2148.500/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Through Hole |
| Pcb Retention | No |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 1.25mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 39-53-2264 FPC Connector | RS |
| 26P FFC/FPC ZIF TH 90° Top-Con | Rutronik |
| Ffc/Fpc Connector, Receptacle 26Pos 1Row | Newark Electronics |
| 26 WAY R/A ZIF FFC CONNECTOR,1.25MM | RS Americas |
| Molex FFC/FPC-Anschluss 39532264 1 St. Tray | Conrad |
| 1.25 MM FFC/FPC CONNECTOR 26CK | TTI Europe |
| 1.25 FFC ZIF HSG ASSY 26CKT | Heilind Americas |
| CONN, FFC/FPC, R/A, 26POS, 1ROW, 1.25MM | Farnell |
