39532305 Easy-On by Molex

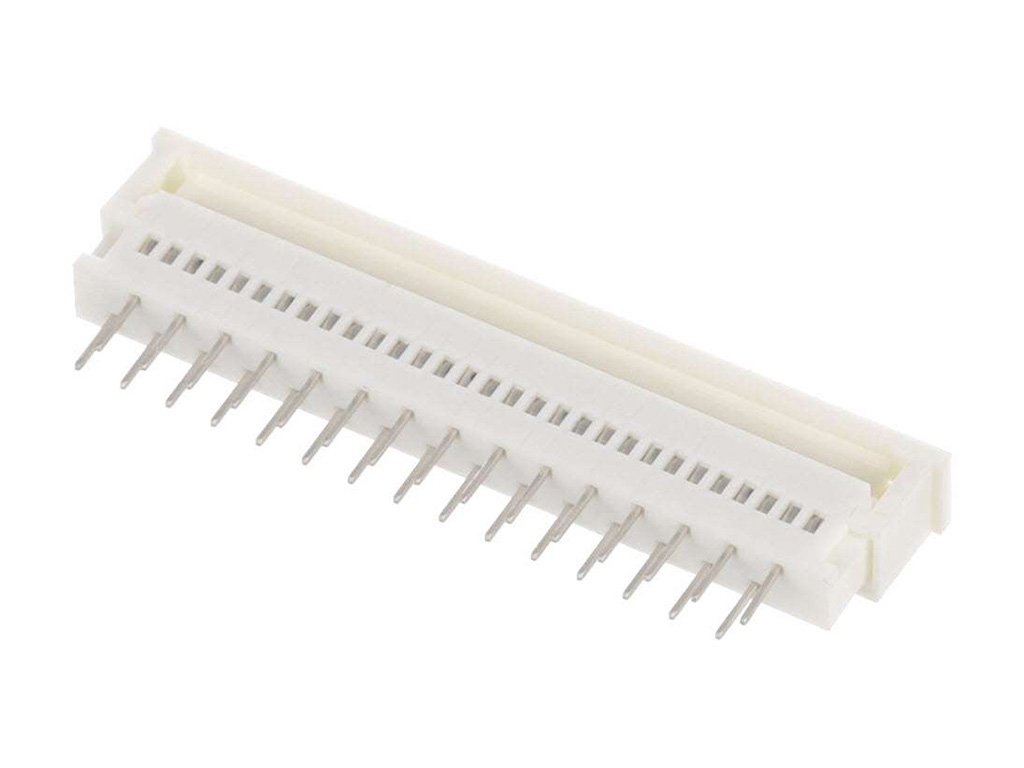

Easy-On FFC/FPC Connector, 1.25mm Pitch, Through-Hole, Vertical, ZIF, 30 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-53-2305,
0039532305, 5597-30CPB7F |
Where to Buy
Prices starting from US$1.34
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.97
|
3,730
in stock
|
Buy Now |
|
Farnell
from US$1.90
|
3,400
in stock
|
Buy Now |
|
TTI Europe
from US$1.46
|
3,160
in stock
|
Buy Now |
|
TME
from US$2.05
|
118
in stock
|
Buy Now |
|
RS
from US$1.94
|
56
in stock
|
Buy Now |
|
Newark Electronics
from US$2.09
|
35
in stock
|
Buy Now |
|
element14
from US$1.86
|
35
in stock
|
Buy Now |
|
Avnet America
from US$1.47
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.64
|
0
in stock
|
Buy Now |
|
Compona
from US$1.39
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.34
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.36
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.73
|
0
in stock
|
Buy Now |
|
EME
from US$1.90
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 200V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 30 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 30 |
| Mated Height | 7.50mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Bismuth |
| Material Plating Termination | Tin-Bismuth |
| Material Resin | Polyester |
| Net Weight | 2547.390/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Through Hole |
| Pcb Retention | No |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 1.25mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -20° to +80°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 30 Rastermaß: 1.25 mm 39532305 1 St. Tray | Conrad |
| FPC CONN, RCPT, 30POS, 1ROW, 1.25MM | Farnell |
| 1.25 MM FFC/FPC CONNECTOR 30CK | TTI Europe |
| Connector: FFC/FPC | TME |
| 30 way straight ZIF FFC connector,1.25mm | RS |
| Ffc/Fpc Board Connector, 5597 Series, Through Hole, Receptacle, 30, 1.25 Mm Rohs Compliant: Yes |Molex 39-53-2305 | Newark Electronics |
| CONNECTOR, FFC/FPC, 30POS, 1ROW, 1.25MM | element14 |
| FFC / FPC Board Connector, 1.25 mm, 30 Contacts, Receptacle, Easy-On 5597, Through Hole | Avnet America |
| 30 WAY STRAIGHT ZIF FFC CONNECTOR,1.25MM | RS Americas |
| MOLEX 39-53-2305 Plug FFC 30p THT | Compona |
| 1.25 FFC ZIF HSG ASSY 30CKT | Heilind Americas |
