399400310 EuroMate Pluggable by Molex

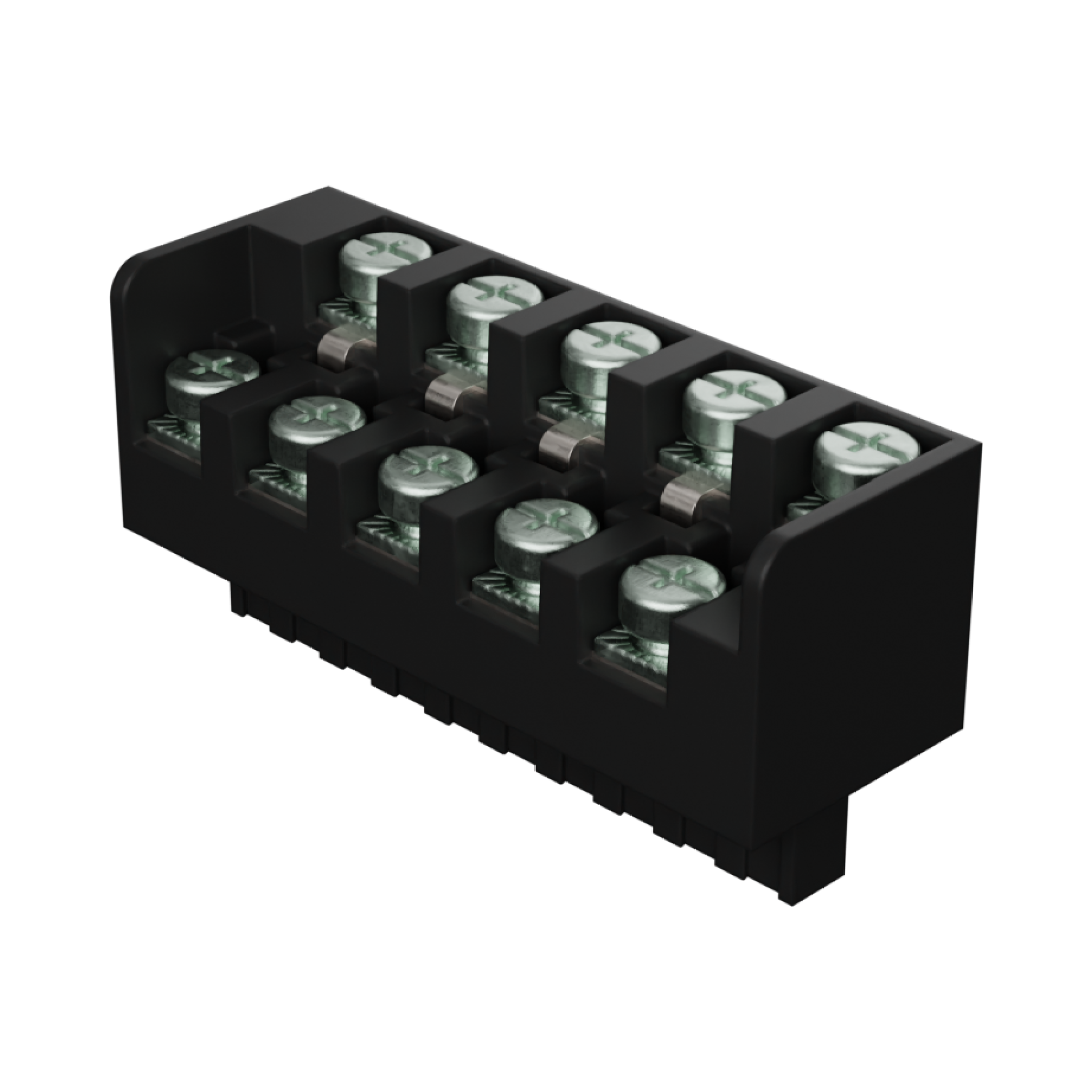

5.08mm Pitch Beau EuroMate Pluggable Terminal Block, Dual Level, 270° Wire Entry, 10 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39940-0310,
0399400310, 940910 |
Specifications
| Product Name | EuroMate Pluggable |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 15.0A |
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Black |
| Entry Angle | Horizontal |
| Flammability | 94V-0 |
| Lock To Mating Part | No |
| Material Resin | Nylon |
| Net Weight | 29.835/g |
| Number Of Rows | 2 |
| Orientation | N/A |
| Panel Mount | No |
| Pcb Retention | N/A |
| Pitch Mating Interface | 5.08mm |
| Pitch Termination Interface | 5.08mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | 130°C |
| Termination Interface Style | Screw or Lug |
| Wire Size Awg | 12, 14, 16, 18, 20, 22 |
| Wire Size Mm | 0.50-2.50 |
