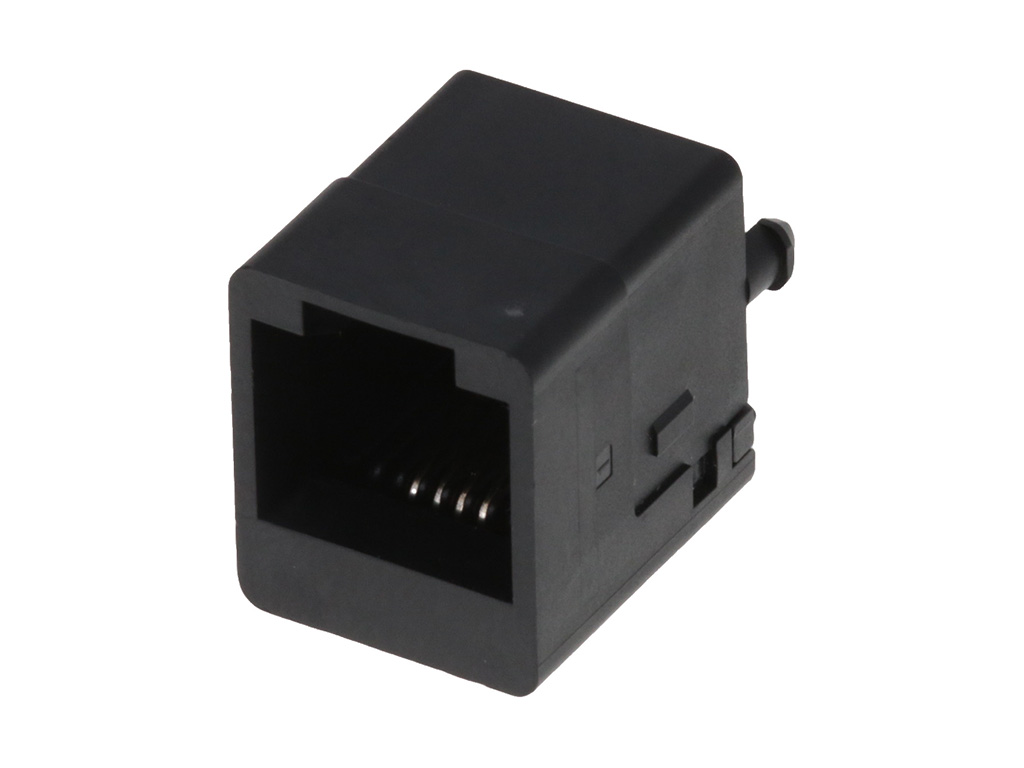

424106314 Modular Jack 6/4 by Molex
Modular Jack, Vertical, 6/4
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
42410-6314,
0424106314 |
Where to Buy
Prices starting from US$0.45
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.93
|
9,360
in stock
|
Buy Now |
|
Newark Electronics
from US$1.31
|
1,060
in stock
|
Buy Now |
|
TME
from US$0.66
|
1,060
in stock
|
Buy Now |
|
Conrad
from US$1.55
|
1,060
in stock
|
Buy Now |
|
RS Americas
from US$0.71
|
50
in stock
|
Buy Now |
|
FDH Electronics
-
|
2
in stock
|
Buy Now |
|
|
RS
from US$0.74
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.04
|
0
in stock
|
Buy Now |
|
element14
from US$1.26
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.92
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.45
|
0
in stock
|
Buy Now |
|
Farnell
from US$1.30
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.99
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 6/4 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | N/A |
| Jack Height | 16.38mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 2.254/g |
| Orientation | Vertical (Top Entry) |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 3.20mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 6/4 |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Through Hole |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MDJCK 6/4 VT NO FLANGE .062 | TTI Americas |
| Cat3 Rj11 Modular Jack, 6 Position, 1 Port | Newark Electronics |
| 42410-6314 | TME |
| Molex Molex 424106314 VERT MODJACK 424106314 Buchse Polzahl Sensoren 6P4C 1 St. | Conrad |
| MODJACKV 062 FLGLS 50AU W/O CLIP 6/4 | RS Americas |
| Placeholder | FDH Electronics |
| Molex 42410-6314 Connector | RS |
| MODULAR CONN, JACK, 6P4C, 1PORT, TH | element14 |
| MODJACKV 062 FLGLS 50AU W/O C IP 6/4 | Heilind Americas |
| MDJCK 8/8 VT FLUSH .062 | TTI Asia |
