428180512 Mini-Fit Sr. by Molex

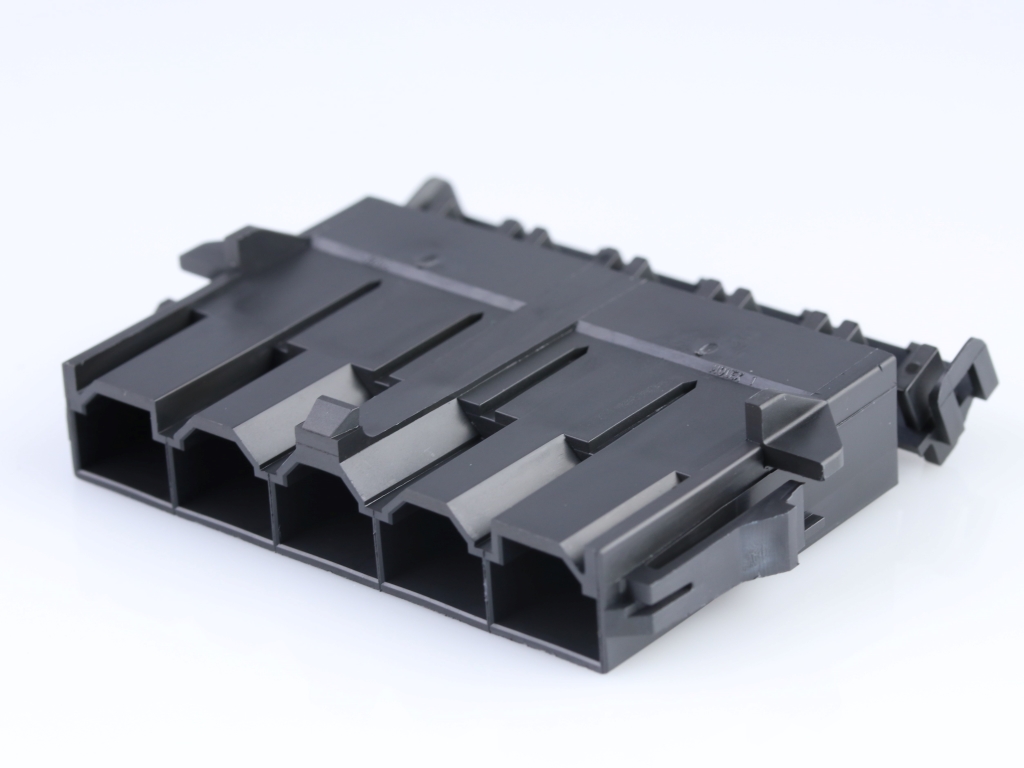

Mini-Fit Sr. Plug Housing, 10.00mm Pitch, Single Row, Panel Mount, 5 Circuit, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
42818-0512,
0428180512 |
Where to Buy
Prices starting from US$1.03
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$1.03
|
1,494
in stock
|
Buy Now |
|
element14
from US$1.47
|
592
in stock
|
Buy Now |
|
Newark Electronics
from US$1.65
|
583
in stock
|
Buy Now |
|
Farnell
from US$1.72
|
583
in stock
|
Buy Now |
|
TME
from US$1.44
|
6
in stock
|
Buy Now |
|
RS
from US$1.46
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.12
|
0
in stock
|
Buy Now |
|
EME
from US$1.50
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Sr. |
|---|---|
| Application | Power, Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 5 |
| Color Resin | Black |
| Flammability | 94V-0 |
| Gender | Plug |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Polyester |
| Net Weight | 10.987/g |
| Number Of Rows | 1 |
| Panel Mount | Yes |
| Pitch Mating Interface | 10.00mm |
| Pitch Termination Interface | 10.00mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MINIFIT SR PLG HSG/TPA /MNTEAR | Heilind Americas |
| CONNECTOR, PLUG, 5POS, 1ROW, 10MM | element14 |
| Connector, Plug, 5Pos, 1Row, 10Mm | Newark Electronics |
| Connector: wire-wire/PCB | TME |
| Molex 428180512 Connector Housing | RS |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 428180512?
Additional datasheets, footprints and schematics for 428180512 are listed on our Part Details page. You can also find images and similar parts to 428180512 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 428180512 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 428180512 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 428180512 fall under?
The 428180512 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 428180512 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 428180512 you can contact the distributor directly for product support, shipping queries etc.
Is the 428180512 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 428180512 have stock available?
Authorised distributors including Heilind Americas, element14, Newark Electronics, Farnell and TME have stock available or on a lead time for 428180512.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 428180512 often in real-time on the comparison pages.
What if I can't find stock of 428180512?
You can fill out our help required form which you can use to request a quote for 428180512 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
