428193213 Mini-Fit Sr. by Molex

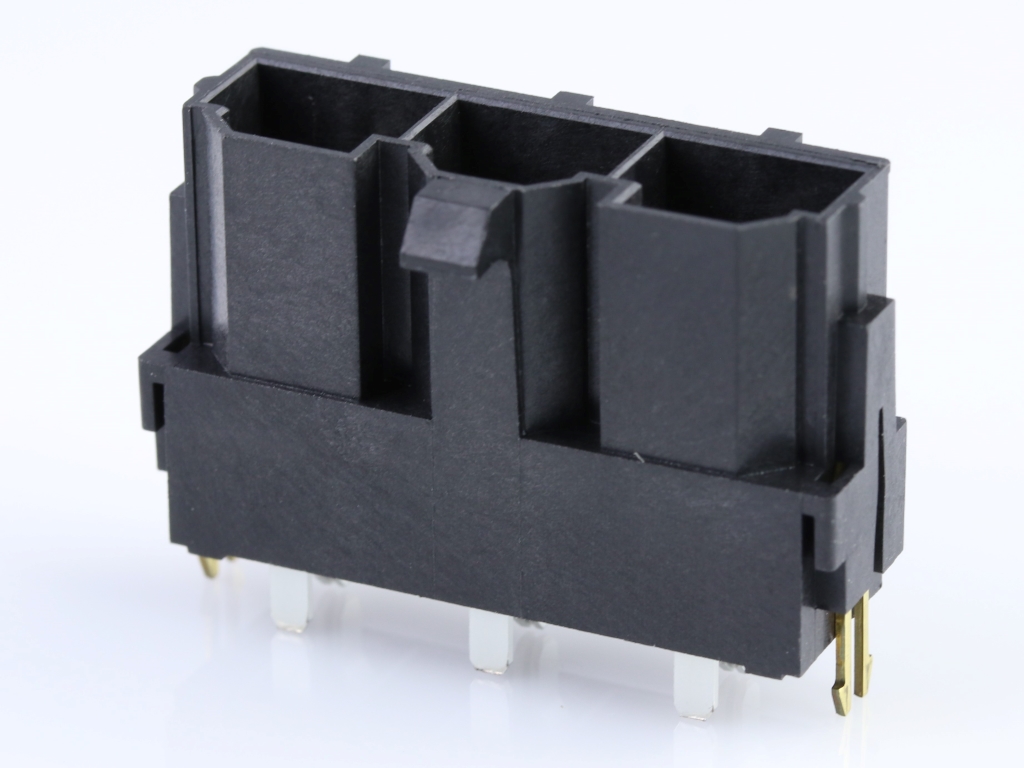

10.00mm Pitch Mini-Fit Sr. Header, Single Row, Vertical, 1.57mm PCB Thickness, 0.76µm Gold (Au) Selective Plating, 3 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
42819-3213,
0428193213 |
Where to Buy
Prices starting from US$4.24
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$5.29
|
2,933
in stock
|
Buy Now |
|
TTI Europe
from US$5.62
|
2,196
in stock
|
Buy Now |
|
|
TTI Americas
from US$4.55
|
1,296
in stock
|
Buy Now |
|
Farnell
from US$8.13
|
1,139
in stock
|
Buy Now |
|
element14
from US$6.17
|
214
in stock
|
Buy Now |
|
TME
from US$5.58
|
28
in stock
|
Buy Now |
|
RS
from US$7.84
|
1
in stock
|
Buy Now |
|
Avnet Abacus
-
|
27,504
in stock
|
Buy Now |
|
Avnet America
from US$6.03
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$7.06
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$5.86
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$4.24
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$4.53
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Sr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 50.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 3 |
| Circuits Maximum | 3 |
| Color Resin | Black |
| Durability Mating Cycles Max | 100 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 7.363/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 10.00mm |
| Pitch Termination Interface | 10.00mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Minifit Sr Hdr Vert 062 Clip 3 Ckt Gold Rohs Compliant: Yes |Molex 42819-3213 | Newark Electronics |
| 10.00MM MINI-FIT HDR 3CT | TTI Europe |
| MINI-FIT SR HDR 03P .125 VT AU | TTI Americas |
| CONN, HEADER, 3POS, 1ROW, 10MM | Farnell |
| CONNECTOR, HEADER, 3POS, 1ROW, 10MM | element14 |
| Connector: wire-board | TME |
| Molex 42819-3213 PCB Header | RS |
| Pin Header, Power, Wire-to-Board, 10 mm, 1 Rows, 3 Contacts, Through Hole Straight | Avnet Abacus |
| MINI-FIT SR HEADER 10.00MM VERTICAL 3PIN | RS Americas |
| MINIFIT SR HDR VERT 062 CLIP CKT GOLD | Heilind Americas |
