428193222 Mini-Fit Sr. by Molex

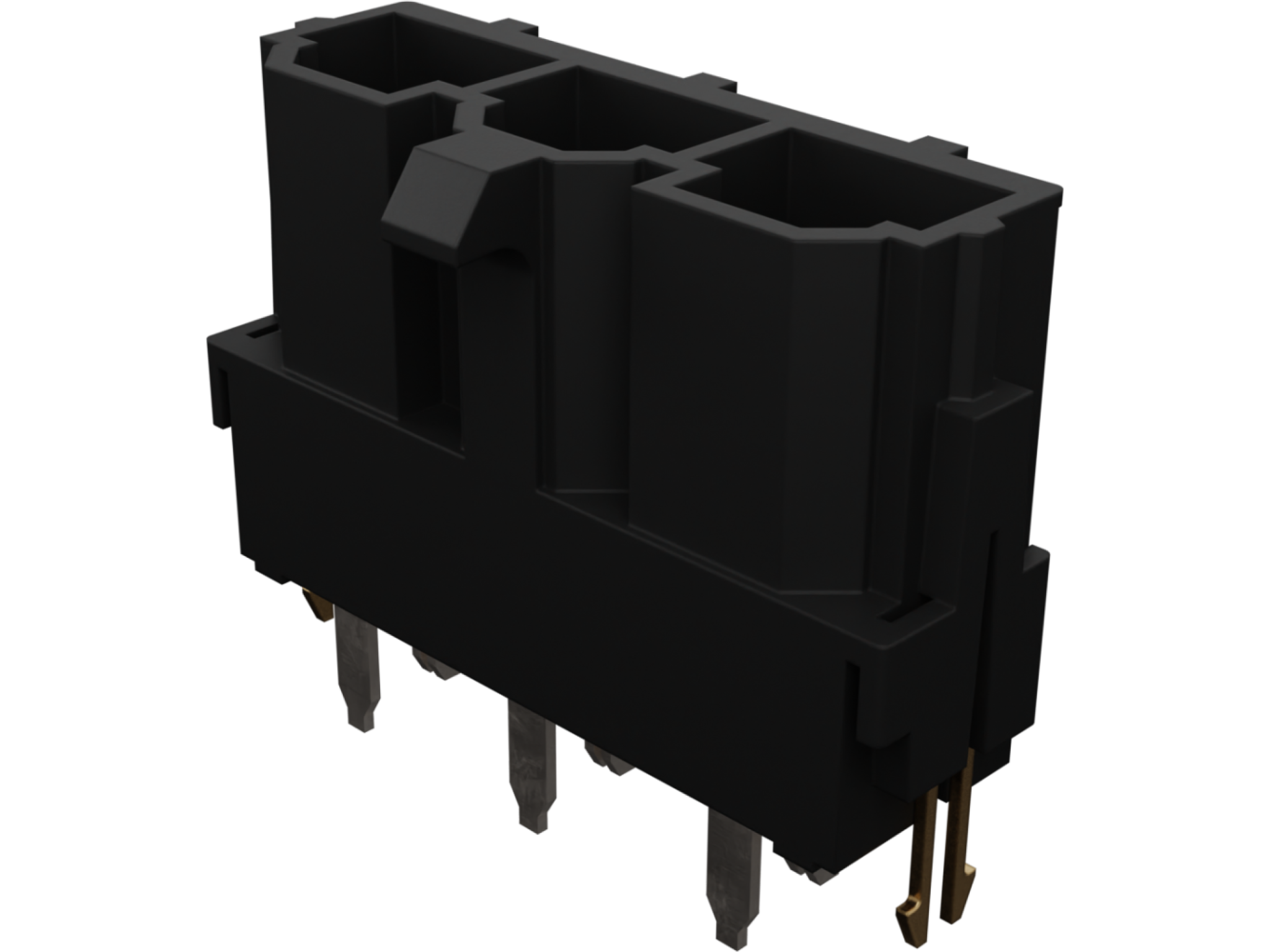

10.00mm Pitch Mini-Fit Sr. Header, Single Row, Vertical, 2.36mm PCB Thickness, Tin (Sn) Plating, 3 Circuits, USE NYE LUBE ON MATING SURFACES
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
42819-3222,
0428193222 |
Where to Buy
Prices starting from US$4.08
Specifications
| Product Name | Mini-Fit Sr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 50.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 3 |
| Circuits Maximum | 3 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 7.541/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 2.36mm |
| Pc Tail Length | 5.10mm |
| Pitch Mating Interface | 10.00mm |
| Pitch Termination Interface | 10.00mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Header Connector, pcb Mount, recept,3 Contacts, pin,0.394 Pitch, pc Tail Terminal, polarized Lck |Molex 42819-3222 | Newark Electronics |
| MINI-FIT SR. VERTICAL HEADER TIN PLATED, 3 CIRCUITS | RS Americas |
| CONNECTOR, HEADER, 3POS, 1ROW, 10MM | element14 |
| MINIFIT SR HDR VERT 093 CLIP 3 | Heilind Americas |
