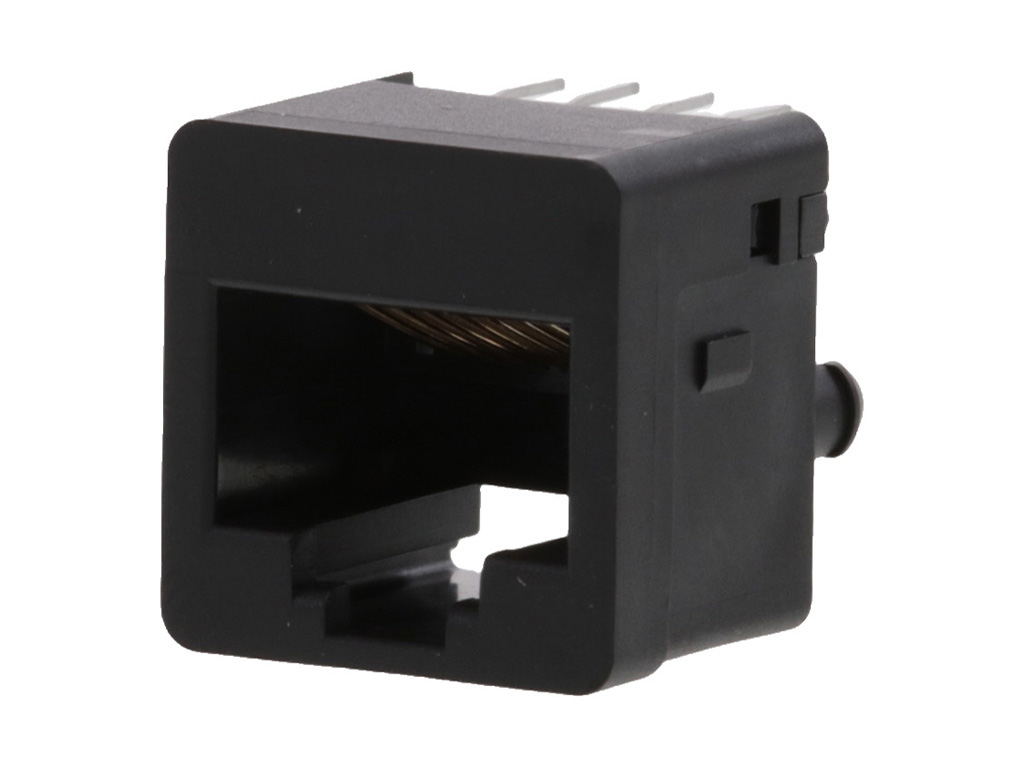

428788410 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Vertical, Low Profile, 8/8
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
42878-8410,
0428788410 |
Where to Buy
Prices starting from US$0.82
| Distributor | Stock | ||
|---|---|---|---|
|
Sager
from US$1.00
|
2,820
in stock
|
Buy Now |
|
Conrad
from US$1.98
|
2,690
in stock
|
Buy Now |
|
Farnell
from US$1.72
|
2,421
in stock
|
Buy Now |
|
Newark Electronics
from US$0.82
|
776
in stock
|
Buy Now |
|
Heilind Americas
from US$1.02
|
379
in stock
|
Buy Now |
|
element14
from US$1.87
|
20
in stock
|
Buy Now |
|
RS
from US$2.46
|
0
in stock
|
Buy Now |
|
TME
from US$1.98
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.65
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.50
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.06
|
0
in stock
|
Buy Now |
|
EME
from US$1.70
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 150V AC (RMS) |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | N/A |
| Jack Height | 12.70mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 2.255/g |
| Orientation | Vertical (Top Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Modular Connectors / Ethernet Connectors MDJCK 8/8 VT LOPRO NO FLANGE | Sager |
| Molex Cat 3 Mod Jack/Plug 428788410 Buchse Schwarz 1 St. | Conrad |
| MOD CONN, RJ45 JACK, 8P8C, 1PORT, TH | Farnell |
| Cat3 Rj45 Modular Jack, 8 Position, 1 Port | Newark Electronics |
| MODJACK 062 FLGLS LOPRO W/O C IP 8/8 | Heilind Americas |
| RJ45 CONNECTOR, JACK, 8P8C, 1PORT, THT | element14 |
| Molex 42878-8410 Modular Connector | RS |
| Connector: RJ45 | TME |
| 8/8 MOD JACK VERTICAL LOW PRO | TTI Europe |
| MDJCK 8/8 VT LOPRO NO FLANGE | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 428788410?
Additional datasheets, footprints and schematics for 428788410 are listed on our Part Details page. You can also find images and similar parts to 428788410 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 428788410 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 428788410 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 428788410 fall under?
The 428788410 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 428788410 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 428788410 you can contact the distributor directly for product support, shipping queries etc.
Is the 428788410 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 428788410 have stock available?
Authorised distributors including Sager, Conrad, Farnell, Newark Electronics and Heilind Americas have stock available or on a lead time for 428788410.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 428788410 often in real-time on the comparison pages.
What if I can't find stock of 428788410?
You can fill out our help required form which you can use to request a quote for 428788410 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
