430202401 Micro-Fit 3.0 by Molex

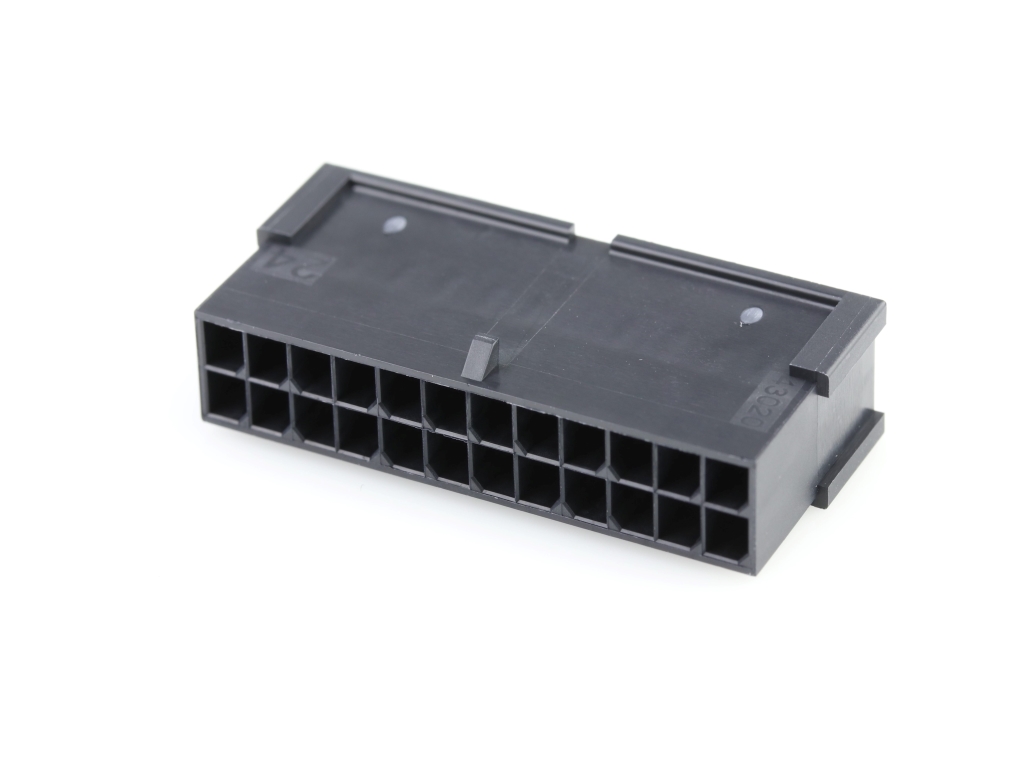

Micro-Fit 3.0 Plug Housing, Dual Row, 24 Circuits, UL 94V-0, Low-Halogen, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43020-2401,
0430202401 |
Where to Buy
Prices starting from US$0.53
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.77
|
15,205
in stock
|
Buy Now |
|
Newark Electronics
from US$0.76
|
376
in stock
|
Buy Now |
|
Heilind Americas
from US$0.80
|
288
in stock
|
Buy Now |
|
TME
from US$0.74
|
237
in stock
|
Buy Now |
|
element14
from US$0.91
|
16
in stock
|
Buy Now |
|
Farnell
from US$0.87
|
16
in stock
|
Buy Now |
|
RS
from US$1.20
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.64
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.82
|
0
in stock
|
Buy Now |
|
Sager
from US$0.66
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.53
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.25
|
0
in stock
|
Buy Now |
|
EME
from US$0.74
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 24 |
| Color Resin | Black |
| Flammability | 94V-0 |
| Gender | Plug |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 2.355/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 3.00mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICRO-FIT 3.0 PLG 02X12P | TTI Americas |
| Connector Housing, Plug, 24Pos | Newark Electronics |
| MICROFIT 3.0 PLUG DR FREEHANG 24CKT | Heilind Americas |
| Connector: wire-wire | TME |
| CONNECTOR HOUSING, PLUG, 24POS, 3MM | element14 |
| Molex 43020-2401 Housing | RS |
| Conn Housing PL 24 POS 3mm Crimp ST Bag | Avnet America |
| MICRO-FIT 3.0 SERIES 3MM PITCH 24 WAY 2ROW MALE STRAIGHT PCB HOUSING 43020 | RS Americas |
| Headers & Wire Housings MICRO-FIT 3.0 PLG 02X12P | Sager |
