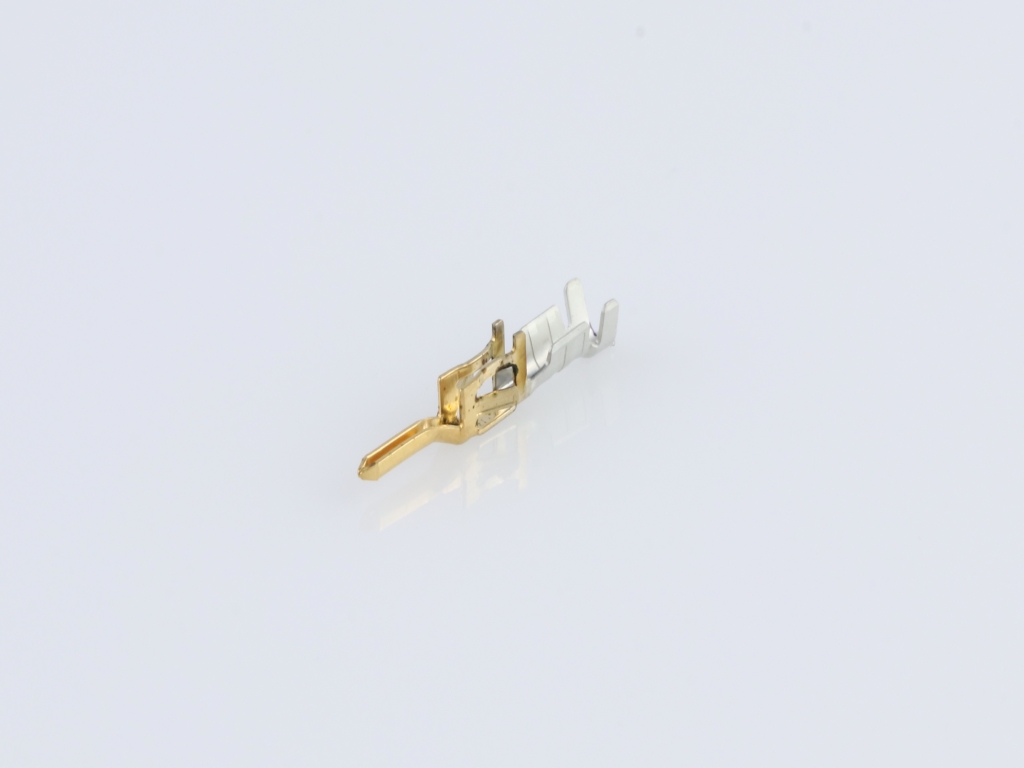

430315004 Micro-Fit TPA by Molex
Micro-Fit TPA Crimp Terminal, Male, with 0.38µm Select Gold (Au) Plated Phosphor Bronze Contact, 24-20 AWG, Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43031-5004,
0430315004 |
Where to Buy
Prices starting from US$0.06
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.11
|
32,400
in stock
|
Buy Now |
|
element14
from US$0.09
|
32,400
in stock
|
Buy Now |
|
Farnell
from US$0.08
|
32,400
in stock
|
Buy Now |
|
RS
from US$0.07
|
4,549
in stock
|
Buy Now |
|
|
RS Americas
from US$0.07
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.07
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.06
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.08
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.06
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.07
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit TPA |
|---|---|
| Application | Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.0A |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 30 |
| Gender | Male |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Net Weight | 0.061/g |
| Packaging Alternative Part | Array |
| Plating Min Mating | 0.380µm |
| Plating Min Termination | 2.540µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.85mm max. |
| Wire Size Awg | 20, 22, 24 |
| Wire Size Mm | N/A |
