430450214 Micro-Fit 3.0 by Molex

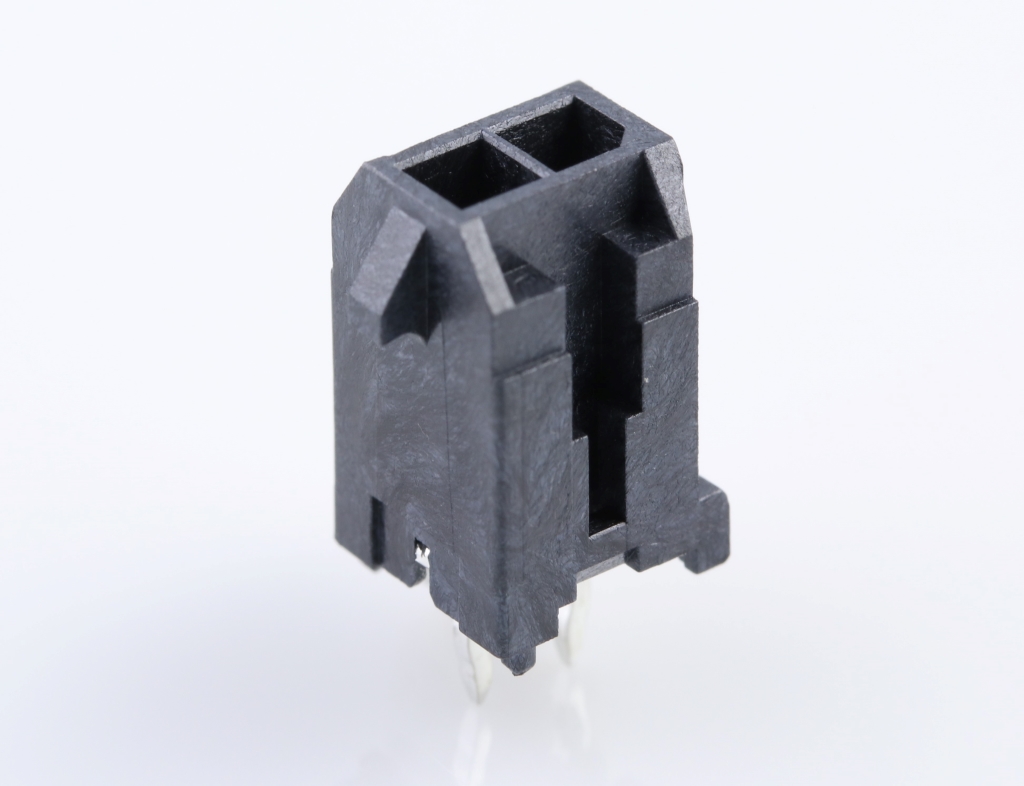

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 2 Circuits, with PCB Polarizing Peg, 0.76µm Gold Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-0214,
0430450214 |
Where to Buy
Prices starting from US$0.44
| Distributor | Stock | ||
|---|---|---|---|
|
Avnet America
from US$0.44
|
21,526
in stock
|
Buy Now |
|
Conrad
from US$1.22
|
11,255
in stock
|
Buy Now |
|
Farnell
from US$0.78
|
10,130
in stock
|
Buy Now |
|
TTI Americas
from US$0.52
|
7,964
in stock
|
Buy Now |
|
Newark Electronics
from US$0.76
|
7,945
in stock
|
Buy Now |
|
Sager
from US$0.44
|
3,948
in stock
|
Buy Now |
|
Heilind Americas
from US$0.63
|
1,773
in stock
|
Buy Now |
|
RS
from US$0.93
|
0
in stock
|
Buy Now |
|
TME
from US$0.71
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.07
|
0
in stock
|
Buy Now |
|
Compona
from US$0.55
|
0
in stock
|
Buy Now |
|
element14
from US$0.70
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.66
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.54
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.65
|
0
in stock
|
Buy Now |
|
EME
from US$0.70
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | Yes |
| Mated Height | 17.64mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 0.480/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole - Kinked Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Conn Shrouded Header 2 POS 3mm Solder ST Through Hole Tray | Avnet America |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 2 Rastermaß: 3 mm 430450214 1 St. Tray | Conrad |
| CONNECTOR, HEADER, 2POS, 2ROW | Farnell |
| MICRO-FIT 3.0 HDR 02X01P VT | TTI Americas |
| Connector, Header, 2Pos, 2Row | Newark Electronics |
| Headers & Wire Housings MICRO-FIT 3.0 HDR 02X01P VT | Sager |
| MICROFIT 3.0 VERT THRHOLE DR 3 | Heilind Americas |
| Molex 43045-0214 PCB Header | RS |
| Connector: wire-board | TME |
| HEADER,2 ROW, VERTICAL, POLARIZING PEG,2 PIN, GOLD PLATE, SMT/GLOW WIRE, KINKED LEADS | RS Americas |
| MOLEX 43045-0214 Header, Dual Row, 180°, PCB Peg, 2p 0.76µm Gold GW Compatible Kinked PC Tail | Compona |
| MICRO-FIT 3.0 HEADER | TTI Europe |
