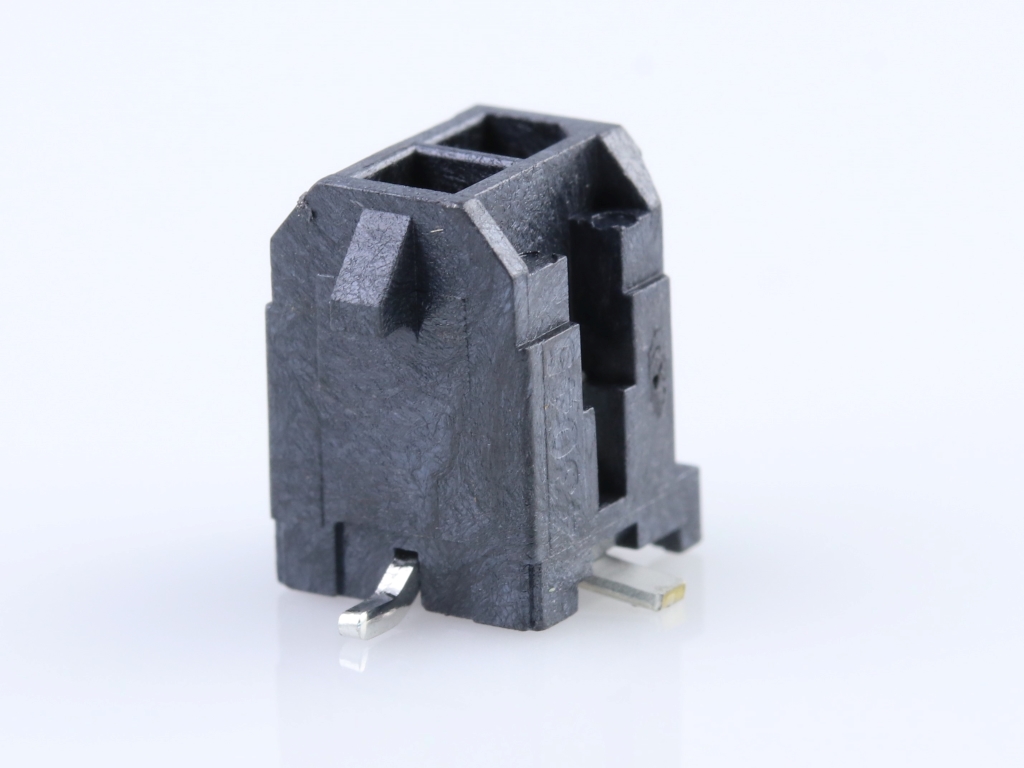

430450218 Micro-Fit 3.0 by Molex
Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 2 Circuits, with Solder Tab, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black, Tape and Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-0218,
0430450218 |
Where to Buy
Prices starting from US$0.79
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.63
|
127,756
in stock
|
Buy Now |
|
Farnell
from US$1.78
|
115,200
in stock
|
Buy Now |
|
Rutronik
from US$0.86
|
10,400
in stock
|
Buy Now |
|
Heilind Europe
from US$1.06
|
3,600
in stock
|
Buy Now |
|
Newark Electronics
from US$1.62
|
2,102
in stock
|
Buy Now |
|
TME
from US$1.18
|
1,340
in stock
|
Buy Now |
|
TTI Europe
from US$1.30
|
1,200
in stock
|
Buy Now |
|
RS
from US$3.15
|
655
in stock
|
Buy Now |
|
|
TTI Americas
from US$4.30
|
174
in stock
|
Buy Now |
|
Avnet Abacus
-
|
28,800
in stock
|
Buy Now |
|
Offical Electronic
-
|
91
in stock
|
Buy Now |
|
Avnet America
from US$1.25
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.12
|
0
in stock
|
Buy Now |
|
Compona
from US$0.79
|
0
in stock
|
Buy Now |
|
Sager
from US$1.44
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$1.42
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.23
|
0
in stock
|
Buy Now |
|
EME
from US$1.12
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | Yes |
| Mated Height | 17.64mm |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 0.730/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 2 Rastermaß: 3.00 mm 430450218 1 St. Tape on Full reel | Conrad |
| CONNECTOR, HEADER, 2POS, 2ROW | Farnell |
| 02P Micro-Fit Header SMT W FIT | Rutronik |
| MICROFIT 3.0 V HDR /NAIL DR TIN | Heilind Europe |
| Connector, Header, 2Pos, 2Row | Newark Electronics |
| Connector: wire-board | TME |
| MICRO-FIT 3.0 HEADER | TTI Europe |
| Molex 43045-0218 PCB Header | RS |
| MICRO-FIT 3.0 HDR 02X01P VT | TTI Americas |
| Pin Header, Power, Wire-to-Board, 2 Rows, 2 Contacts, Surface Mount Straight, Micro-Fit 3.0 43045 | Avnet Abacus |
| MICROFIT 3.0 V HDR SMT 2 CKT SN | RS Americas |
| MOLEX 43045-0218 Header SMT Dual Row 180° 2p Tin Plating Solder Tab, GW Compatible | Compona |
| Headers & Wire Housings MICRO-FIT 3.0 HDR 02X01P VT | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 430450218?
Additional datasheets, footprints and schematics for 430450218 are listed on our Part Details page. You can also find images and similar parts to 430450218 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 430450218 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 430450218 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 430450218 fall under?
The 430450218 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 430450218 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 430450218 you can contact the distributor directly for product support, shipping queries etc.
Is the 430450218 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 430450218 have stock available?
Authorised distributors including Conrad, Farnell, Rutronik, Heilind Europe and Newark Electronics have stock available or on a lead time for 430450218.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 430450218 often in real-time on the comparison pages.
What if I can't find stock of 430450218?
You can fill out our help required form which you can use to request a quote for 430450218 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
