430450224 Micro-Fit 3.0 by Molex

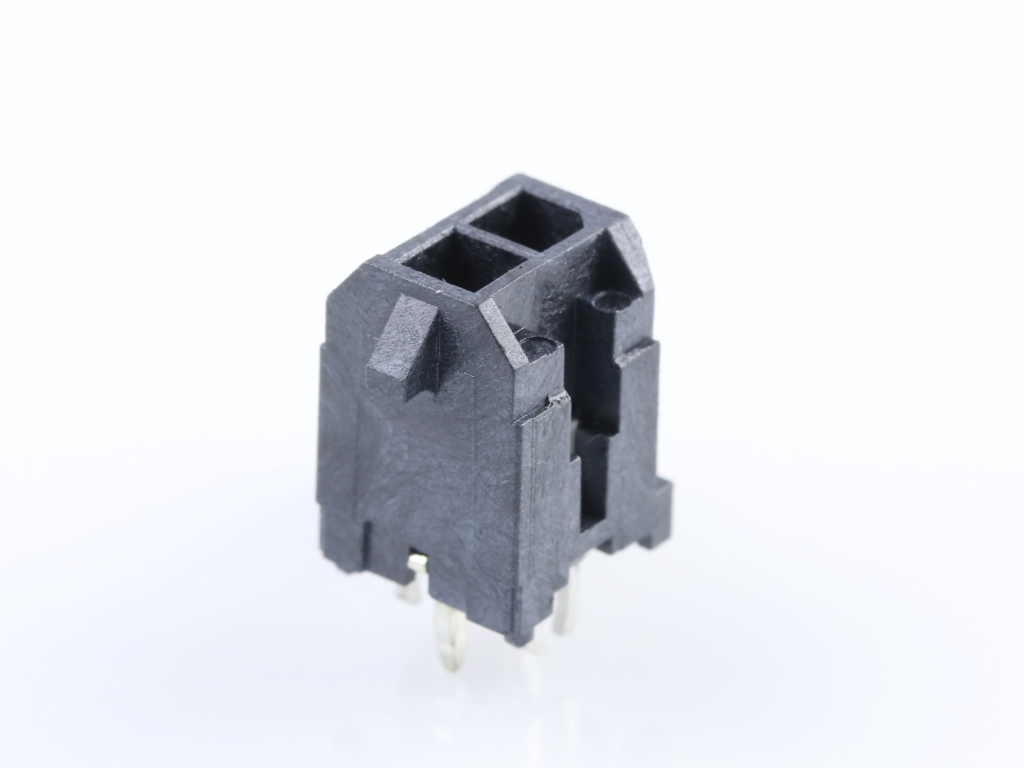

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 2 Circuits, with PCB Press-fit Metal Retention Clip, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-0224,
0430450224 |
Where to Buy
Prices starting from US$0.37
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.45
|
11,280
in stock
|
Buy Now |
|
Conrad
from US$0.86
|
4,459
in stock
|
Buy Now |
|
Farnell
from US$0.72
|
4,014
in stock
|
Buy Now |
|
RS
from US$0.89
|
1,860
in stock
|
Buy Now |
|
Heilind Americas
from US$0.52
|
1,468
in stock
|
Buy Now |
|
TME
from US$0.50
|
150
in stock
|
Buy Now |
|
|
RS Americas
from US$0.43
|
150
in stock
|
Buy Now |
|
Rutronik
from US$0.43
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$0.76
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.47
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.44
|
0
in stock
|
Buy Now |
|
Sager
from US$0.46
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.37
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.43
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | Yes |
| Mated Height | 17.64mm |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Mounting Style | Through Hole |
| Net Weight | 0.586/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole - Kinked Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICRO-FIT 3.0 HDR 02X02P VT | TTI Americas |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 2 Rastermaß: 3 mm 430450224 1 St. Tray | Conrad |
| PIN HEADERS | Farnell |
| Molex 43045-0224 PCB Header | RS |
| MICROFIT 3.0 V PTH HDR /CLIP R TIN 2CKT | Heilind Americas |
| Connector: wire-board | TME |
| HEADER 3.00MM, WTB, DUAL ROW, RA,2W | RS Americas |
| 02P Micro-Fit Header THT 180° | Rutronik |
| Connector Systems:Wire-To-Board | Newark Electronics |
| Conn Wire to Board HDR 2 POS 3mm Solder ST Thru-Hole Tray | Avnet America |
| MICROFIT 3.0 V PTH HDR | TTI Europe |
| Headers & Wire Housings MICRO-FIT 3.0 HDR 02X02P VT | Sager |
