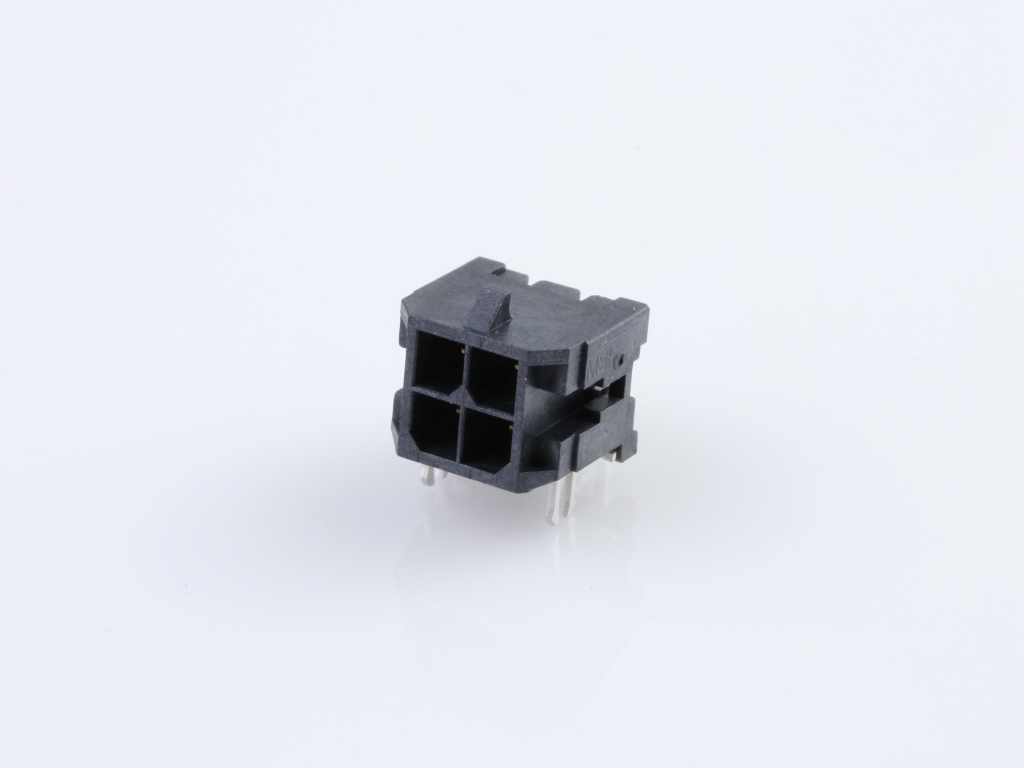

430450407 Micro-Fit 3.0 by Molex
Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 4 Circuits, with PCB Press-fit Metal Retention Clip, 0.38µm Gold Plating, Glow-Wire Capable, Black, Tape and Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-0407,
0430450407 |
Where to Buy
Prices starting from US$1.34
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$2.93
|
7,380
in stock
|
Buy Now |
|
RS
from US$4.13
|
640
in stock
|
Buy Now |
|
Offical Electronic
-
|
518
in stock
|
Buy Now |
|
Newark Electronics
from US$2.70
|
0
in stock
|
Buy Now |
|
TME
from US$2.03
|
0
in stock
|
Buy Now |
|
element14
from US$2.75
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.90
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.84
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.34
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$2.64
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | Yes |
| Mated Height | 10.29mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 0.860/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| PIN HEADERS | Farnell |
| Molex 43045-0407 PCB Header | RS |
| Connector, Header, 4Pos, 2Row, 3Mm | Newark Electronics |
| Connector: wire-board | TME |
| CONNECTOR, HEADER, 4POS, 2ROW, 3MM | element14 |
| 3.0MM MICRO FIT HEADER 4CIRC | TTI Europe |
| MICROFIT 3.0 RA SMT/CLIP DR 1 AU 4 CKT | Heilind Americas |
| MICRO-FIT 3.0 HDR 02X02P RA | TTI Asia |
