430450420 Micro-Fit 3.0 by Molex

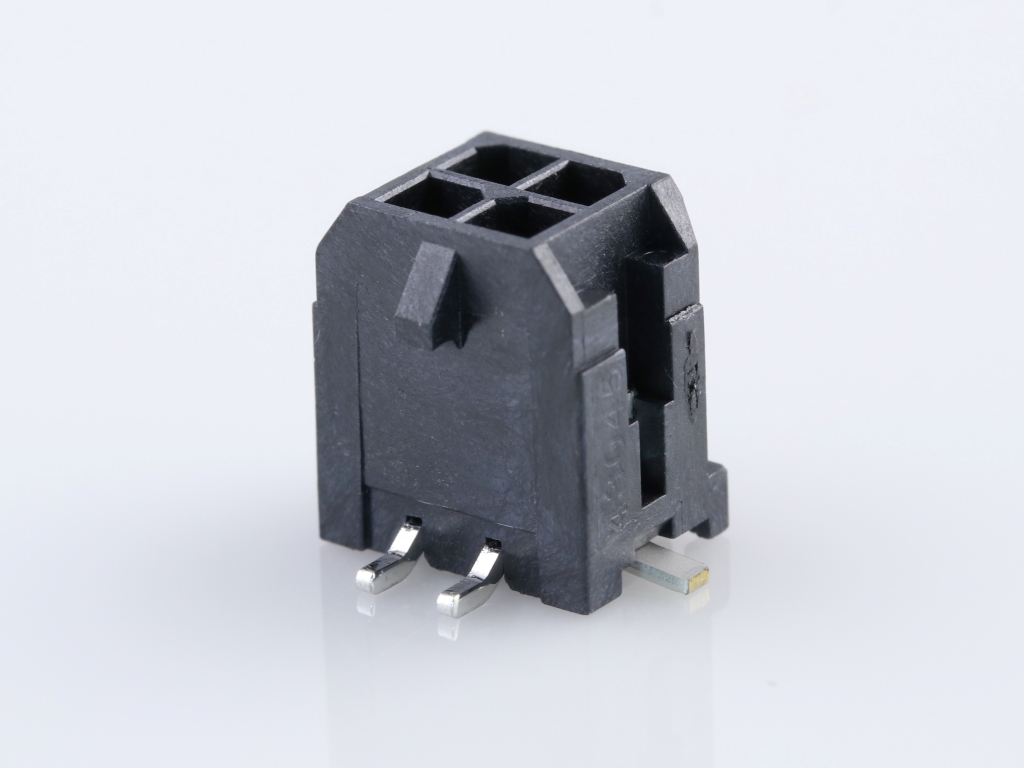

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 4 Circuits, with Solder Tab, 0.76µm Gold Plating, Glow-Wire Capable, Black, Tape and Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-0420,
0430450420 |
Where to Buy
Prices starting from US$1.44
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$2.06
|
26,800
in stock
|
Buy Now |
|
Newark Electronics
from US$1.96
|
7,600
in stock
|
Buy Now |
|
Avnet America
from US$1.44
|
7,600
in stock
|
Buy Now |
|
Conrad
from US$3.24
|
6,800
in stock
|
Buy Now |
|
Farnell
from US$2.20
|
6,120
in stock
|
Buy Now |
|
element14
from US$1.90
|
3,746
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.50
|
2,200
in stock
|
Buy Now |
|
Heilind Americas
from US$1.49
|
1,800
in stock
|
Buy Now |
|
RS
from US$2.64
|
200
in stock
|
Buy Now |
|
Avnet Abacus
-
|
5,800
in stock
|
Buy Now |
|
Rutronik
from US$1.63
|
0
in stock
|
Buy Now |
|
TME
from US$1.88
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.27
|
0
in stock
|
Buy Now |
|
Compona
from US$1.45
|
0
in stock
|
Buy Now |
|
Sager
from US$1.61
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.46
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.56
|
0
in stock
|
Buy Now |
|
EME
from US$1.72
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | Yes |
| Mated Height | 17.64mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 0.969/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICRO-FIT 3.0 HDR 02X02P VT | TTI Americas |
| 43045-0420 Rohs Compliant: Yes |Molex 43045-0420 | Newark Electronics |
| Pin Header, Power, Wire-to-Board, 3 mm, 2 Rows, 4 Contacts, Surface Mount Straight | Avnet America |
| Molex Stiftgehäuse-Platine 430450420 1 St. | Conrad |
| CONN, HEADER, 4POS, 2ROW, 3MM | Farnell |
| MULTIPOLE CONNECTOR PLUG | element14 |
| MICRO-FIT 3.0 HEADER SMT | TTI Europe |
| MICROFIT 3.0 V HDR /NAIL DR 3 AU 4CKT | Heilind Americas |
| Molex 430450420 PCB Header | RS |
| 04P Micro-Fit Header 2 ROW | Rutronik |
| Connector: wire-board | TME |
| MICROFIT3.0VHDR/NAILDR30AU4CKT | RS Americas |
| MOLEX 43045-0420 Header SMT Dual Row 180° 4p 0.76µm Gold Solder Tab, GW Compatible | Compona |
| Headers & Wire Housings MICRO-FIT 3.0 HDR 02X02P VT | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 430450420?
Additional datasheets, footprints and schematics for 430450420 are listed on our Part Details page. You can also find images and similar parts to 430450420 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 430450420 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 430450420 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 430450420 fall under?
The 430450420 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 430450420 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 430450420 you can contact the distributor directly for product support, shipping queries etc.
Is the 430450420 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 430450420 have stock available?
Authorised distributors including TTI Americas, Newark Electronics, Avnet America, Conrad and Farnell have stock available or on a lead time for 430450420.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 430450420 often in real-time on the comparison pages.
What if I can't find stock of 430450420?
You can fill out our help required form which you can use to request a quote for 430450420 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
