430450609 Micro-Fit 3.0 by Molex

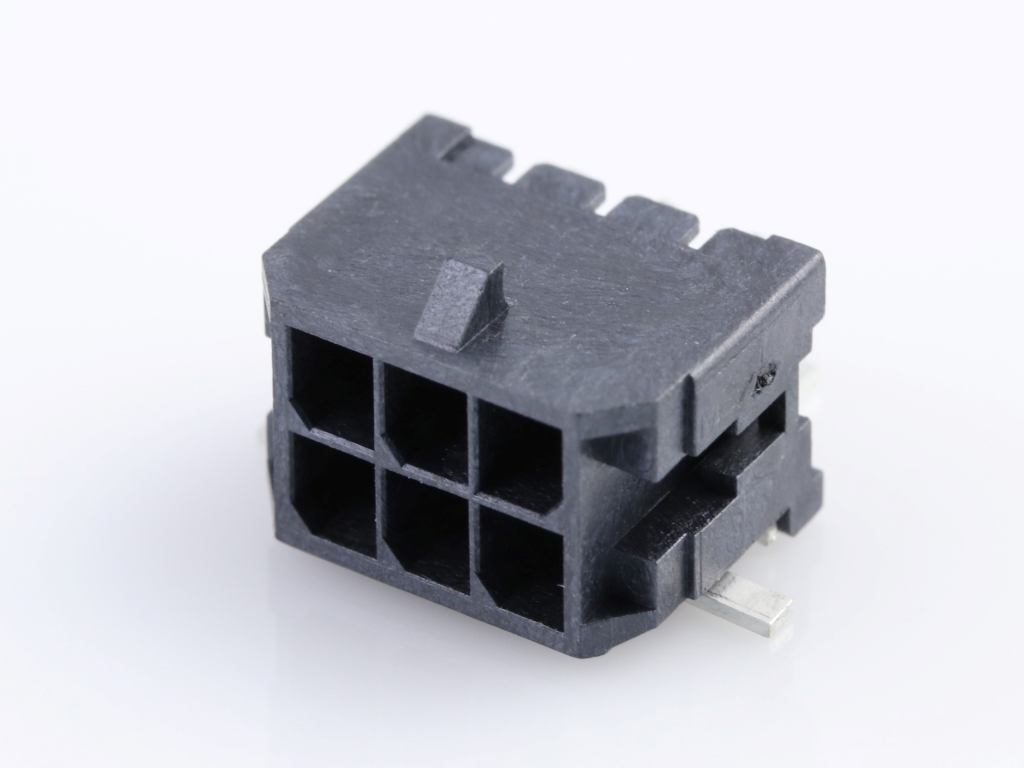

Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 6 Circuits, with Solder Tab, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black, Tape and Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-0609,
0430450609 |
Where to Buy
Prices starting from US$0.79
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$1.20
|
12,600
in stock
|
Buy Now |
|
Newark Electronics
from US$1.37
|
9,800
in stock
|
Buy Now |
|
Avnet America
from US$1.09
|
9,800
in stock
|
Buy Now |
|
Heilind Americas
from US$1.16
|
8,550
in stock
|
Buy Now |
|
Farnell
from US$2.43
|
7,200
in stock
|
Buy Now |
|
|
TTI Americas
from US$1.23
|
6,600
in stock
|
Buy Now |
|
RS
from US$2.83
|
2,907
in stock
|
Buy Now |
|
Avnet Abacus
-
|
72,400
in stock
|
Buy Now |
|
Rutronik
-
|
10,200
in stock
|
Buy Now |
|
TME
from US$1.30
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.12
|
0
in stock
|
Buy Now |
|
Compona
from US$0.79
|
0
in stock
|
Buy Now |
|
Sager
from US$1.39
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.85
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.23
|
0
in stock
|
Buy Now |
|
EME
from US$1.10
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | Yes |
| Mated Height | 10.29mm |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.124/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Pitch Termination Interface | 3.00mm |
| Plating Min Mating | 0.254µm |
| Plating Min Termination | 1.520µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICRO-FIT 3.0 HEADER | TTI Europe |
| Microfit 3.0 Ra Hdr/Nail Dr Tin 6Ckt Rohs Compliant: Yes |Molex 43045-0609 | Newark Electronics |
| Conn Power Header 6 POS 3mm Solder RA Surface Mount 6 Terminal 1 Port Emboss T/R | Avnet America |
| MICROFIT 3.0 RA HDR/NAIL DR TI | Heilind Americas |
| HEADERS AND WIRE HOUSINGS 6 CKT R-A SMT | Farnell |
| MICRO-FIT 3.0 HDR 02X03P RA | TTI Americas |
| Molex 43045-0609 PCB Header | RS |
| 06P Micro-Fit Header 2 ROW SMT RA | Rutronik |
| Connector: wire-board | TME |
| HEADER,2 ROW, RIGHT-ANGLE, SOLDER TAB,6 PIN, TIN PLATE, SMT, GLOW WIRE COMPATIBLE | RS Americas |
| MOLEX 43045-0609 Header SMT Dual Row 90° 6p Tin Plating Solder Tab, GW Compatible | Compona |
| Headers & Wire Housings MICRO-FIT 3.0 HDR 02X03P RA | Sager |
| MICRO-FIT 3.0 HDR 02X03P RA TI | TTI Asia |
