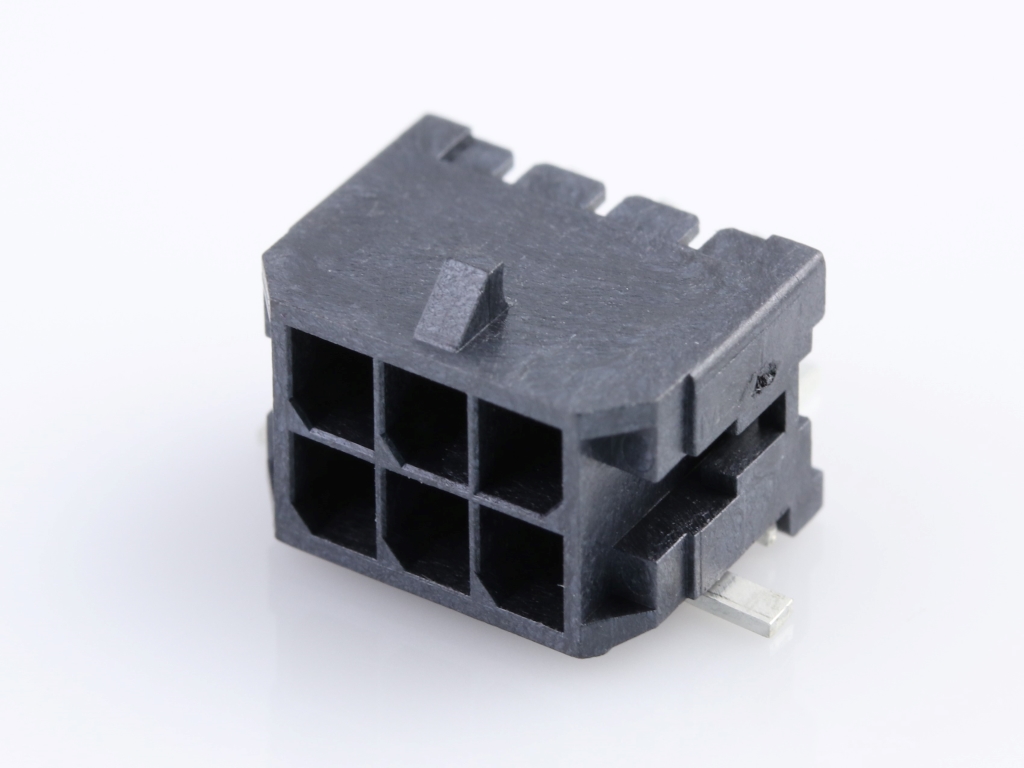

430450610 Micro-Fit 3.0 by Molex
Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 6 Circuits, with Solder Tab, 0.38µm Gold Plating, Glow-Wire Capable, Black, Tape and Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-0610,
0430450610 |
Where to Buy
Prices starting from US$1.45
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$1.93
|
17,200
in stock
|
Buy Now |
|
Heilind Americas
from US$1.81
|
8,250
in stock
|
Buy Now |
|
|
TTI Americas
from US$1.99
|
3,600
in stock
|
Buy Now |
|
Newark Electronics
from US$2.85
|
3,000
in stock
|
Buy Now |
|
element14
from US$2.86
|
3,000
in stock
|
Buy Now |
|
Farnell
from US$2.89
|
3,000
in stock
|
Buy Now |
|
Conrad
from US$3.01
|
1,000
in stock
|
Buy Now |
|
TME
from US$1.93
|
9
in stock
|
Buy Now |
|
Avnet Abacus
-
|
8,200
in stock
|
Buy Now |
|
Rutronik
from US$1.93
|
0
in stock
|
Buy Now |
|
RS
from US$4.96
|
0
in stock
|
Buy Now |
|
Avnet America
from US$2.51
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.32
|
0
in stock
|
Buy Now |
|
Compona
from US$1.45
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.50
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.87
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | Yes |
| Mated Height | 10.29mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.124/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICRO-FIT 3.0 HEADER SMT | TTI Europe |
| MICROFIT 3.0 RA SMT/NAIL DR 1 AU 6 CKT | Heilind Americas |
| MICRO-FIT 3.0 HDR 02X03P RA | TTI Americas |
| Connector, Header, 6Pos, 2Row, 3Mm | Newark Electronics |
| CONNECTOR, HEADER, 6POS, 2ROW, 3MM | element14 |
| Molex Stiftgehäuse-Platine 430450610 1 St. | Conrad |
| Connector: wire-board | TME |
| Pin Header, Power, 3 mm, 2 Rows, 6 Contacts, Surface Mount Right Angle | Avnet Abacus |
| 06P Micro-Fit Header GLOWWIRE | Rutronik |
| Molex 43045-0610 PCB Header | RS |
| HEADER 3.00MM, SMT, DUAL ROW, RA, 6W | RS Americas |
| MOLEX 43045-0610 Header SMT Dual Row 90° 6p 0.38µm Gold Solder Tab, GW Compatible | Compona |
