430450613 Micro-Fit 3.0 by Molex

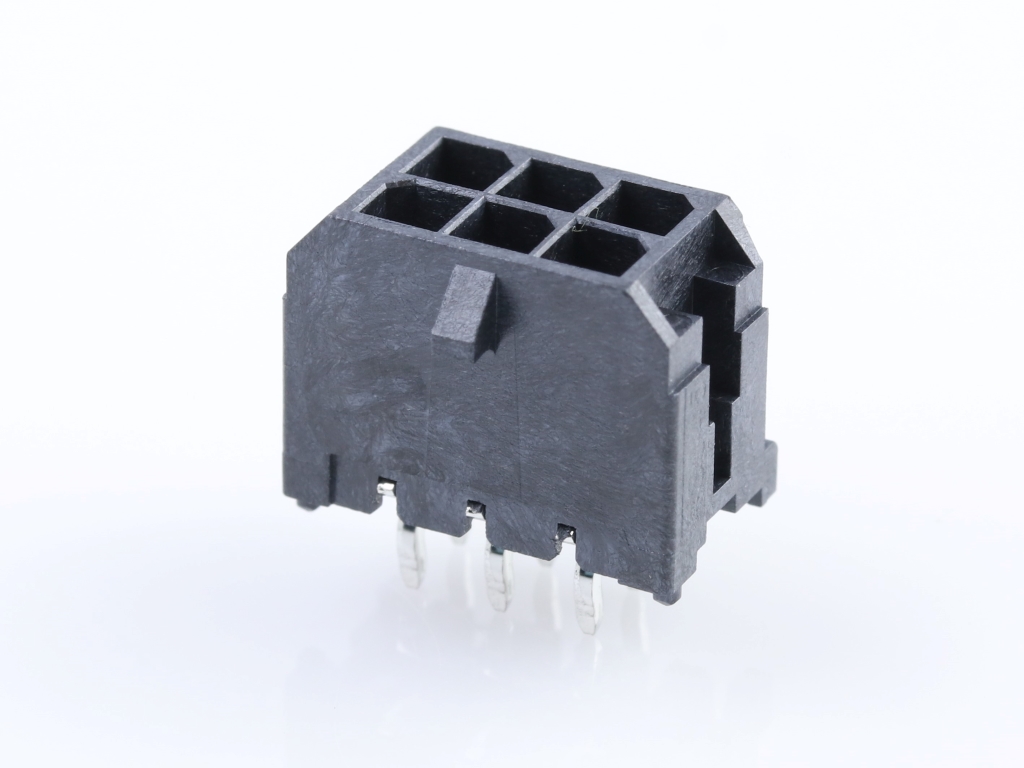

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 6 Circuits, with PCB Polarizing Peg, 0.38µm Gold Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-0613,
0430450613 |
Where to Buy
Prices starting from US$0.53
| Distributor | Stock | ||
|---|---|---|---|
|
Rutronik
from US$0.72
|
34,560
in stock
|
Buy Now |
|
Conrad
from US$1.85
|
18,975
in stock
|
Buy Now |
|
Newark Electronics
from US$0.97
|
13,652
in stock
|
Buy Now |
|
Farnell
from US$1.11
|
7,747
in stock
|
Buy Now |
|
TTI Americas
from US$0.70
|
7,440
in stock
|
Buy Now |
|
Heilind Americas
from US$0.69
|
4,802
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.86
|
4,032
in stock
|
Buy Now |
|
RS
from US$1.03
|
2,275
in stock
|
Buy Now |
|
element14
from US$1.00
|
1,622
in stock
|
Buy Now |
|
|
RS Americas
from US$0.53
|
468
in stock
|
Buy Now |
|
Offical Electronic
-
|
720
in stock
|
Buy Now |
|
Avnet America
from US$0.87
|
0
in stock
|
Buy Now |
|
TME
from US$1.05
|
0
in stock
|
Buy Now |
|
Compona
from US$0.79
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.77
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.69
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | Yes |
| Mated Height | 17.64mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Mounting Style | Through Hole |
| Net Weight | 0.974/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Pitch Termination Interface | 3.00mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole - Kinked Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 06P Micro-Fit Header 2 ROW | Rutronik |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 6 Rastermaß: 3 mm 430450613 1 St. Tray | Conrad |
| Connector, Header, 6Pos, 2Row, 3Mm | Newark Electronics |
| CONN, HEADER, 6POS, 2ROW, 3MM | Farnell |
| MICRO-FIT 3.0 HDR 02X03P VT | TTI Americas |
| MICROFIT 3.0 VERT THRHOLE DR 1 | Heilind Americas |
| MICRO-FIT 3.0 HEADER | TTI Europe |
| Molex 43045-0613 PCB Header | RS |
| CONNECTOR, HEADER, 6POS, 2ROW, 3MM | element14 |
| HEADER,2 ROW, VERTICAL, POLARIZING PEG,6 PIN, GOLD PLATE, SMT/GLOW WIRE, KINKED LEADS | RS Americas |
| Conn Wire to Board HDR 6 POS 3mm Solder ST Thru-Hole Tray | Avnet America |
| Connector: wire-board | TME |
| MOLEX 43045-0613 Header, Dual Row, 180°, PCB Peg, 6p 0.38µm Gold GW Compatible Kinked PC Tail | Compona |
