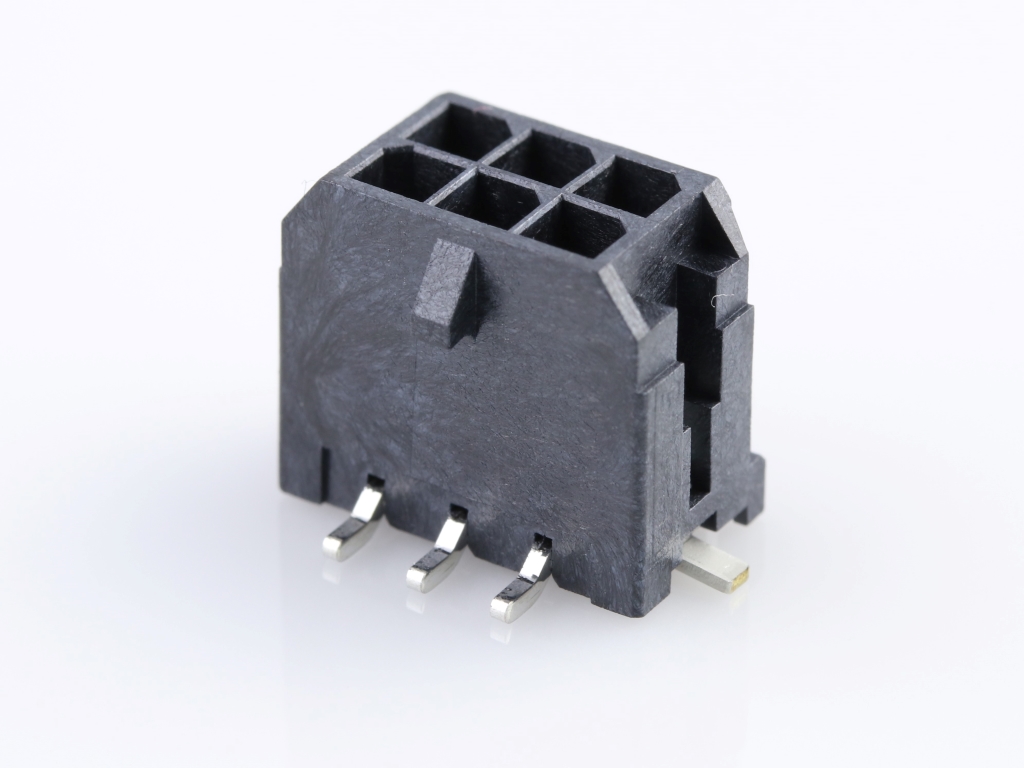

430450618 Micro-Fit 3.0 by Molex
Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 6 Circuits, with Solder Tab, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black, Tape and Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-0618,
0430450618 |
Where to Buy
Prices starting from US$1.06
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$1.62
|
92,600
in stock
|
Buy Now |
|
Farnell
from US$2.53
|
15,000
in stock
|
Buy Now |
|
Heilind Europe
from US$1.10
|
14,600
in stock
|
Buy Now |
|
Avnet America
from US$1.33
|
11,550
in stock
|
Buy Now |
|
RS
from US$2.19
|
2,065
in stock
|
Buy Now |
|
Newark Electronics
from US$1.93
|
1,400
in stock
|
Buy Now |
|
TME
from US$1.62
|
304
in stock
|
Buy Now |
|
|
TTI Americas
from US$1.50
|
137
in stock
|
Buy Now |
|
Avnet Abacus
-
|
46,400
in stock
|
Buy Now |
|
Rutronik
-
|
5,000
in stock
|
Buy Now |
|
|
RS Americas
from US$2.82
|
0
in stock
|
Buy Now |
|
Compona
from US$1.06
|
0
in stock
|
Buy Now |
|
Sager
from US$1.30
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$1.28
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.51
|
0
in stock
|
Buy Now |
|
EME
from US$1.50
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | Yes |
| Mated Height | 17.64mm |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.000/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICRO-FIT 3.0 HEADER SMT | TTI Europe |
| CONN, HEADER, 6POS, 2ROW, 3MM | Farnell |
| MICRO FIT 3.0 V HDR /NAIL DR IN 6CKT | Heilind Europe |
| Pin Header, Power, Wire-to-Board, 3 mm, 2 Rows, 6 Contacts, Surface Mount Straight | Avnet America |
| Molex 43045-0618 PCB Header | RS |
| Connector, Header, 6Pos, 2Row, 3Mm | Newark Electronics |
| Connector: wire-board | TME |
| MICRO-FIT 3.0 HDR 02X03P VT | TTI Americas |
| 06P Micro-Fit Header SMT W FIT S | Rutronik |
| CONN RECT/PCB HEADER 2-ROW VERT. W/SOLDER TAB 6 CIR. SMT TIN PLATE MICRO-FIT 3.0 | RS Americas |
| MOLEX 43045-0618 Header SMT Dual Row 180° 6p Tin Plating Solder Tab, GW Compatible | Compona |
| Headers & Wire Housings MICRO-FIT 3.0 HDR 02X03P VT | Sager |
