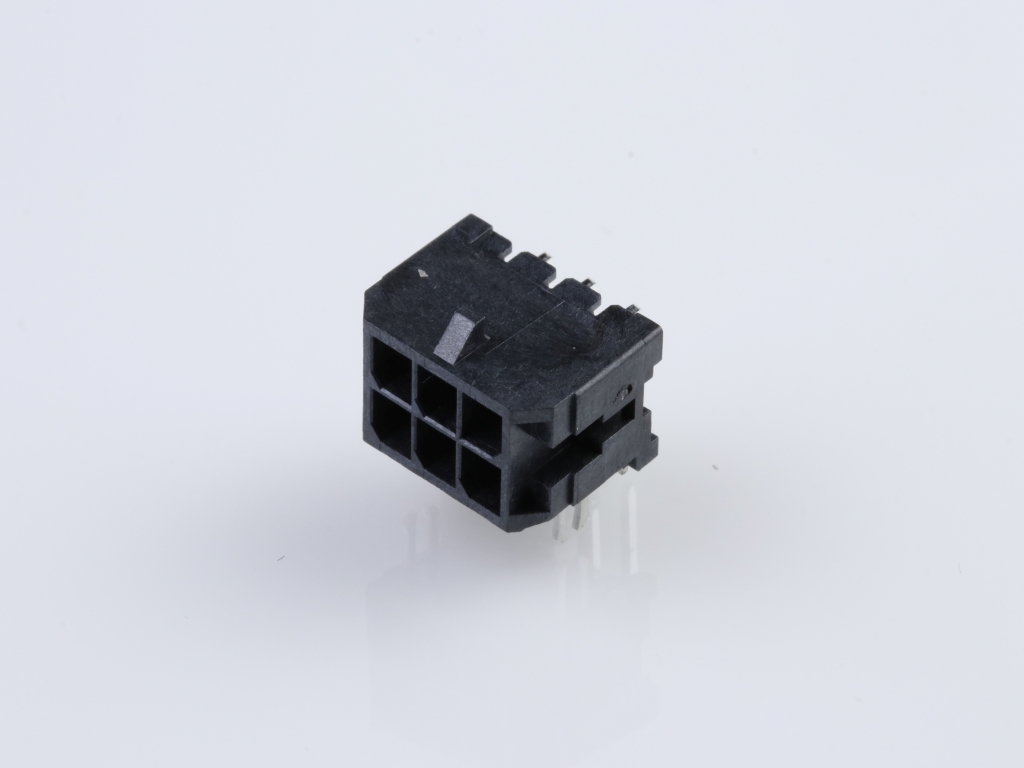

430450621 Micro-Fit 3.0 by Molex
Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 6 Circuits, with PCB Press-fit Metal Retention Clip, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-0621,
0430450621 |
Where to Buy
Prices starting from US$0.75
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.06
|
17,310
in stock
|
Buy Now |
|
Farnell
from US$1.72
|
15,579
in stock
|
Buy Now |
|
Newark Electronics
from US$1.48
|
2,155
in stock
|
Buy Now |
|
element14
from US$1.38
|
2,155
in stock
|
Buy Now |
|
TTI Europe
from US$1.04
|
1,728
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.97
|
1,728
in stock
|
Buy Now |
|
Heilind Americas
from US$1.26
|
441
in stock
|
Buy Now |
|
TME
from US$0.97
|
139
in stock
|
Buy Now |
|
RS
from US$1.18
|
72
in stock
|
Buy Now |
|
Offical Electronic
-
|
27
in stock
|
Buy Now |
|
Sager
from US$1.08
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.75
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | Yes |
| Mated Height | 10.06mm |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.201/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 6 Rastermaß: 3 mm 430450621 1 St. Tray | Conrad |
| CONN, HEADER, 6POS, 2ROW, 3MM | Farnell |
| Connector, Header, 6Pos, 2Row, 3Mm | Newark Electronics |
| CONNECTOR, HEADER, 6POS, 2ROW, 3MM | element14 |
| MICRO-FIT 3.0 HEADER 6CIRCUITS | TTI Europe |
| MICROFIT 3.0 RA PTH W/CLIP DR | TTI Asia |
| MICROFIT 3.0 RA PTH W/CLIP DR TIN 6 CKT | Heilind Americas |
| Connector: wire-board | TME |
| Molex 43045-0621 PCB Header | RS |
| Headers & Wire Housings MICRO-FIT 3.0 HDR 02X03P RA | Sager |
| Pin Header, Power, 3 mm, 2 Rows, 6 Contacts, Through Hole Right Angle, Micro-Fit 3.0 43045 | Avnet Asia |
