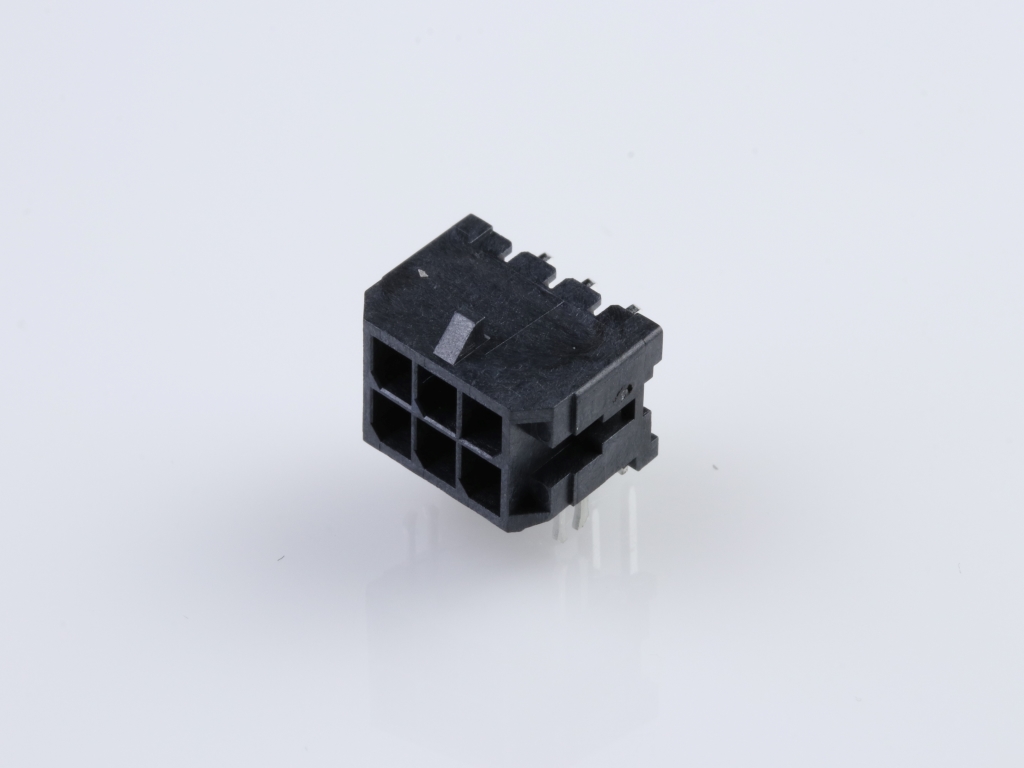

430450622 Micro-Fit 3.0 by Molex
Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 6 Circuits, with PCB Press-fit Metal Retention Clip, 0.38µm Gold Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
43045-0622,
0430450622 |
Where to Buy
Prices starting from US$1.11
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$2.10
|
6,437
in stock
|
Buy Now |
|
Newark Electronics
from US$1.87
|
3,375
in stock
|
Buy Now |
|
Avnet America
from US$1.31
|
1,391
in stock
|
Buy Now |
|
RS
from US$2.40
|
851
in stock
|
Buy Now |
|
|
RS Americas
from US$1.11
|
60
in stock
|
Buy Now |
|
TME
from US$1.67
|
7
in stock
|
Buy Now |
|
Compona
from US$1.34
|
0
in stock
|
Buy Now |
|
element14
from US$2.11
|
0
in stock
|
Buy Now |
|
Conrad
from US$2.71
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.74
|
0
in stock
|
Buy Now |
|
Sager
from US$1.65
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.94
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.11
|
0
in stock
|
Buy Now |
|
Farnell
from US$2.00
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.57
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit 3.0 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | Yes |
| Mated Height | 10.06mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.195/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICRO-FIT 3.0 HDR 02X03P VT | TTI Americas |
| Header Connector, pcb Mount, recept,6 Contacts, pin,0.118 Pitch, r Angle Pc Tail Terminal Rohs Compliant: Yes |Molex 43045-0622 | Newark Electronics |
| Pin Header, Power, Wire-to-Board, 3 mm, 2 Rows, 6 Contacts, Through Hole Right Angle | Avnet America |
| Molex 43045-0622 PCB Header | RS |
| HEADER 3.00MM, WTB, DUAL ROW, RA,6W | RS Americas |
| Connector: wire-board | TME |
| MOLEX 43045-0622 Plug Square MicroFit 6p THT | Compona |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 6 Rastermaß: 3 mm 430450622 1 St. Tray | Conrad |
| MICRO-FIT 3.0 HEADER 6CKT | TTI Europe |
| Headers & Wire Housings MICRO-FIT 3.0 HDR 02X03P VT | Sager |
| MICROFIT 3.0 RA PTH W/CLIP 15 U DR 6 CKT | Heilind Americas |
| HEADER, RIGHT ANGLE, 6WAY | Farnell |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 430450622?
Additional datasheets, footprints and schematics for 430450622 are listed on our Part Details page. You can also find images and similar parts to 430450622 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 430450622 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 430450622 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 430450622 fall under?
The 430450622 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 430450622 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 430450622 you can contact the distributor directly for product support, shipping queries etc.
Is the 430450622 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 430450622 have stock available?
Authorised distributors including TTI Americas, Newark Electronics, Avnet America, RS and RS Americas have stock available or on a lead time for 430450622.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 430450622 often in real-time on the comparison pages.
What if I can't find stock of 430450622?
You can fill out our help required form which you can use to request a quote for 430450622 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
